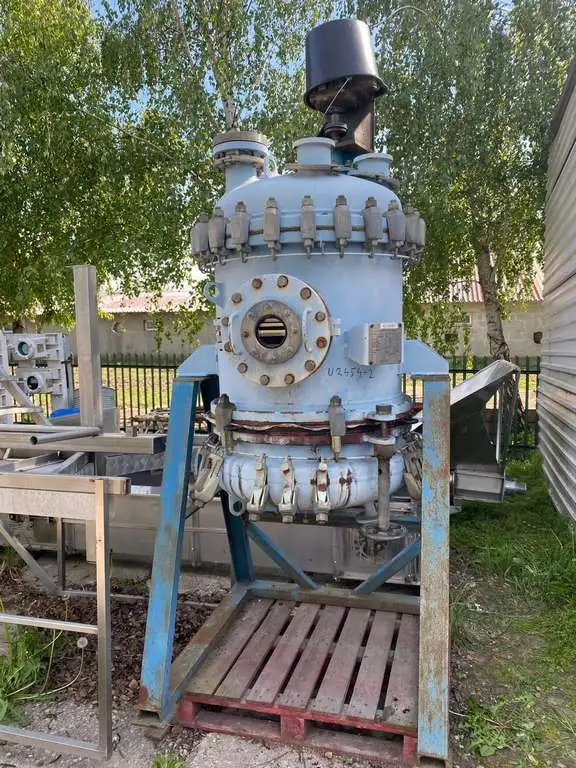

Used, vertical, glass lined pressure filter by Lampart (Hungary) type SDK-M300L with total volume 565 litres and working volume 300 litres. Filter has filtration surface of 0.48 m2 and an internal diameter of 780 mm. Internal working pressure range from -1 to 3 bar in a working temperature range from -25 to 200 degrees Celsius. Top feeding and central bottom discharge outlet, including glass lined valve. Filter has inspection manway with diameter 250 mm on the side wall equipped with lid. Bottom head has a welded carbon steel cooling/heating jacket with a capacity of 35 litres and can operate at pressure range from -1 to 3 bar in a working temperature range from -25 to 200 degrees Celsius. Machine is equipped with a top mounted stainless steel propeller agitator which is directly driven by an electric motor. Filter is mounted on a carbon steel frame.
| Weight | Estimated: Kg900.0 | Estimated: Kg900.0 |
