USED YANAGIYA 145 LIITRE

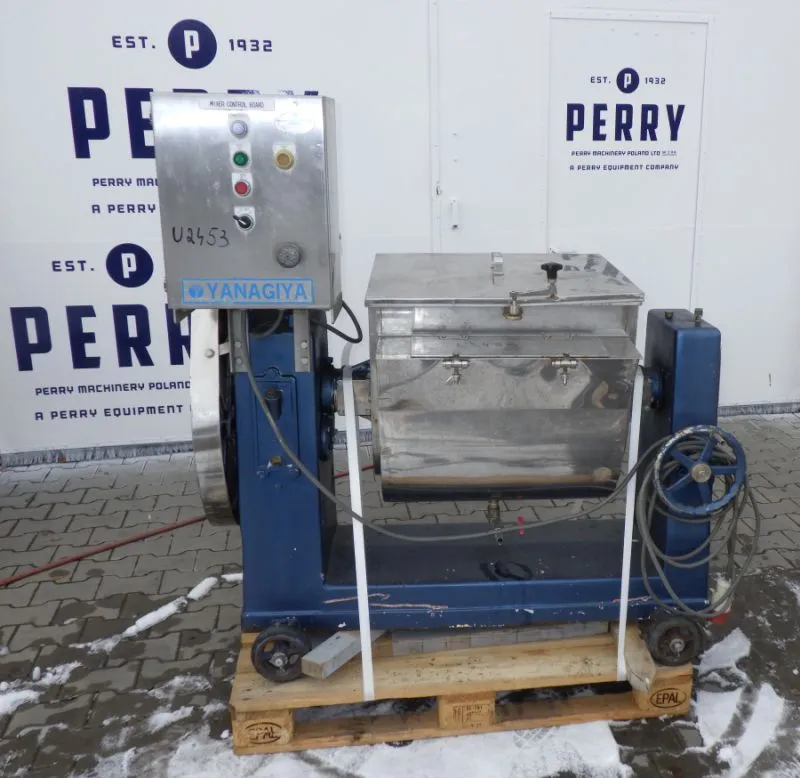

Used stainless steel contact parts ribbon mixer by Yanagiya (JP). Mixing chamber has internal dimensions: L 598 mm x W 500 mm x D 550 mm. Total volume of mixing chamber 145 l. Working volume approx 100 l. Side walls have welded atmospheric stainless steel jacket, which has bottom discharge outlet with valve. Mixer has mixing shaft with bolted stainless steel ribbon, belt driven by el motor 1.5 kW, 1420 rpm, 380 V, 50 Hz. Discharge of chamber by tilt, via manually operated wheel. Mixer is mounted on mobile carbon steel base and is equipped with local control panel. Shipping dimensions: L 145 cm x W 95 cm x H 160 cm x weight about 800 kg.
