500 L Vertical Stainless Steel Storage Tank
Overview
Stock #:
U2450-3
Description

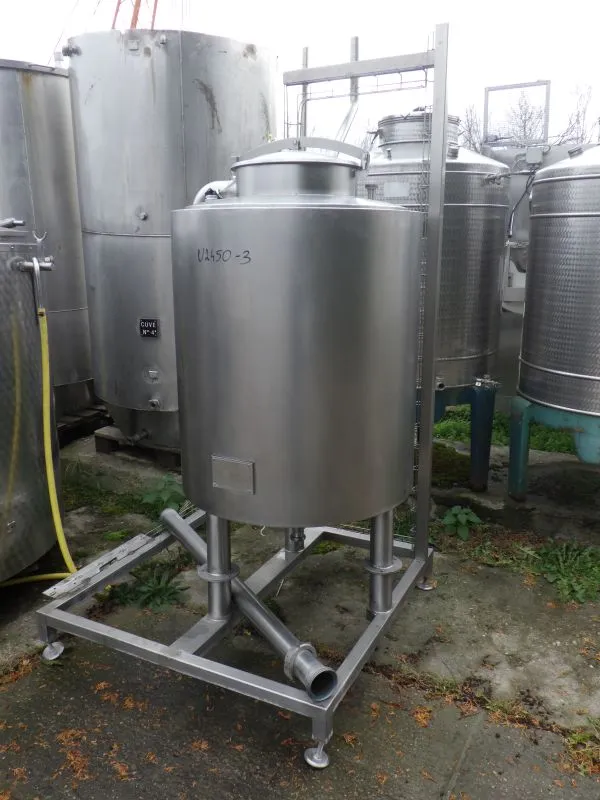

Used vertical stainless steel storage tank with volume 500 l. Tank has internal diameter 800 mm x length of straight side of wall 1020 mm. Top welded, with central inspection manway, with diameter 435 mm, and bolted lid. Bottom welded, slightly conical with central discharge outlet. Bottom and side walls are insulated and layered with stainless steel. Tank is rated for work on pressure 0 bar and temperature up to 85 C. Material AISI 304. Tank is mounted on 3 stainless steel legs and supporting frame. Last time used in food industry.
Specifications
| Capacity | 132.1 gal | 500 L |
|---|---|---|
| Diameter | 2.62' | 798.58 mm |
| Height | 3.35' | 1,021.1 mm |
| Type of stainless | AISI 304 | AISI 304 |
| Type Of Heads | Top Welded, Bottom Welded | Top Welded, Bottom Welded |
| Vertical/Horizontal | Vertical | Vertical |
| Legs/Lugs/Skirt | 3 stainless steel legs and supporting frame | 3 stainless steel legs and supporting frame |
