USED DIESSEL GMBH & CO. 1734 l

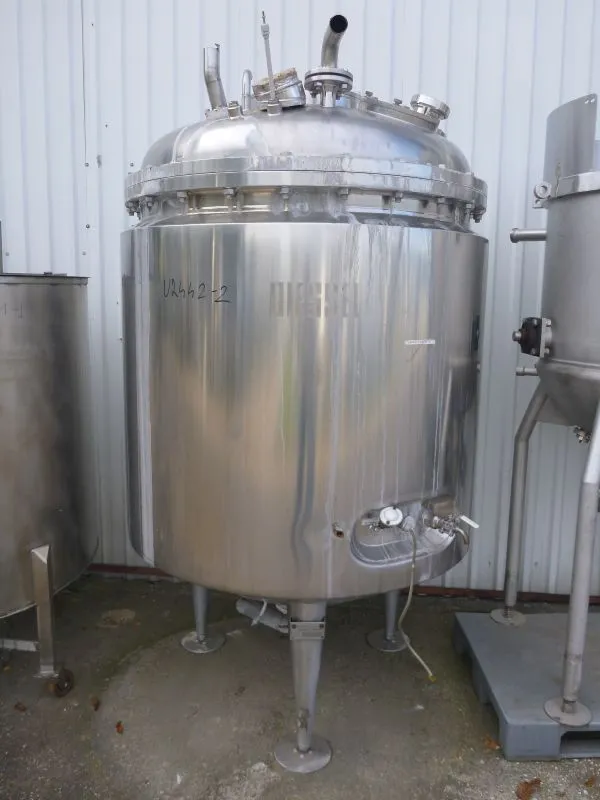

Used vertical stainless steel storage tank by Diessel (DE) with total volume 1734 l. Internal diameter of the tank 1250 mm x length of straight side of the wall 1250 mm. Tank is rated for work on pressure range from 3.2 bar to vacuum. Temperature range up to 150 C. Tank has heating coil on the side walls. Volume 33 l. Coil is rated for work on pressure up to 3 bar and temperature up to 110 C. Top bolted. Central bottom discharge. Bottom has conical shape. Side walls are insulated and layered with stainless steel. Mounted on 3 legs.
