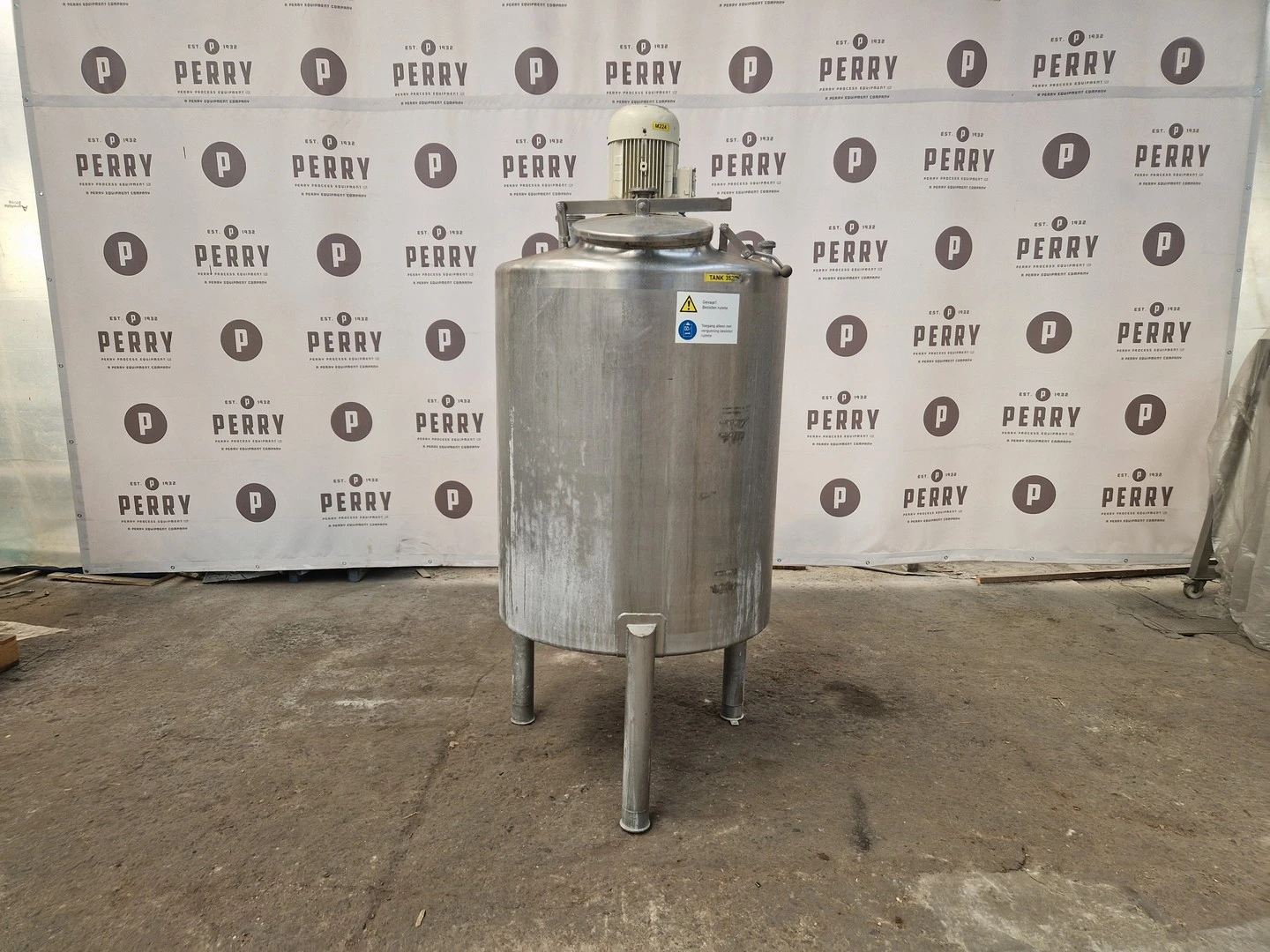

1,000 Litre Stainless Steel Vertical Mixing Tank
Overview
Stock #:
H4425-3
Description
Used approximately 1000 litre capacity vertical stainless steel mixing tank. Vessel measures approx 1000 mm internal diameter x 1230 mm internal straight side x 2340 mm total height. Top entry Jongia 3-blade agitator driven by 1.5 kW electric motor. Has welded dished top head with inspection manway 400 mm diameter and flat bottom. Side bottom discharge. Unit is mounted on (3) stainless steel legs.
Specifications
| Capacity | 250 gal | 946.4 L |
|---|---|---|
| Diameter | 3.28' | 1,000 mm |
| Height | 7.55' | 2,300 mm |
| Type of stainless | AISI 304 | AISI 304 |
| Type Of Heads | Welded dished top head | Welded dished top head |
| Vertical/Horizontal | Horizontal | Horizontal |
| Legs/Lugs/Skirt | Legs | Legs |
| Dimensions | 1000 mm diameter x 1230 mm straight side x 2340 mm height | 1000 mm diameter x 1230 mm straight side x 2340 mm height |
