USED 2002 HOSOKAWA 20-MSC-43

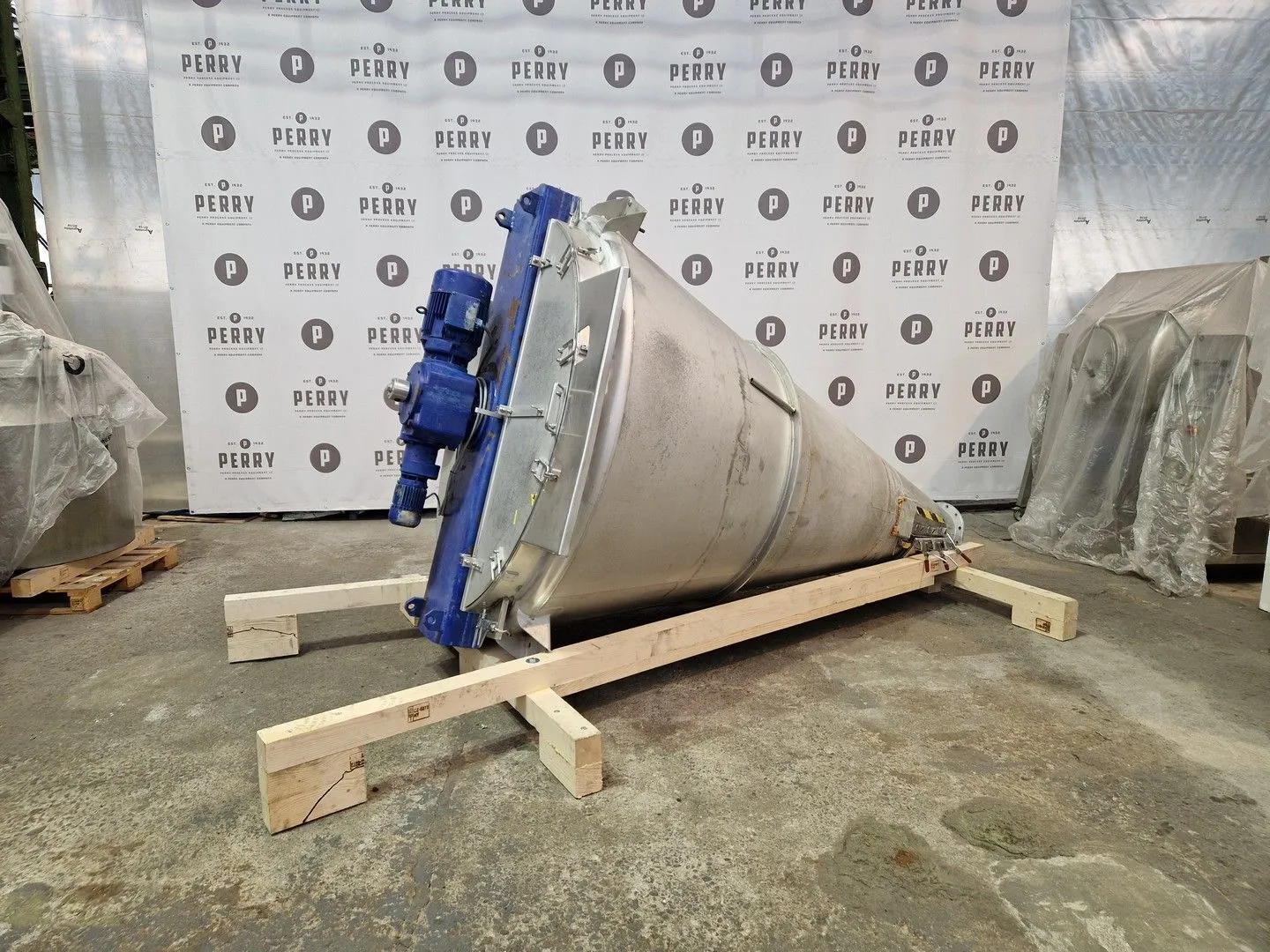

Used Hosokawa model 20-MSC-43 nauta conical screw mixer.
- Working volume: 1700 litre.
- Working pressure: Atmospheric.
- Product contact parts: Stainless steel 1.4301.
- Cone has dimensions (approx.): 2048 mm diameter x 2820 mm cone height / 3523 mm total height (bottom edge of discharge valve - drive).
- Top semi-circular covers: 1x hinged cover with safety mesh, 1x bolted cover with flanges DN200 and DN100
- Non-supported screw agitator: driven by 5.5 kW electric motor, final rpms of screws 70 rpm
- Arm: driven by 0.55 kW electric motor, final rpms of arm 1.2 rpm
- Includes: discharge valve.
- Mounted: (3) lugs.
