USED WAB KD 6

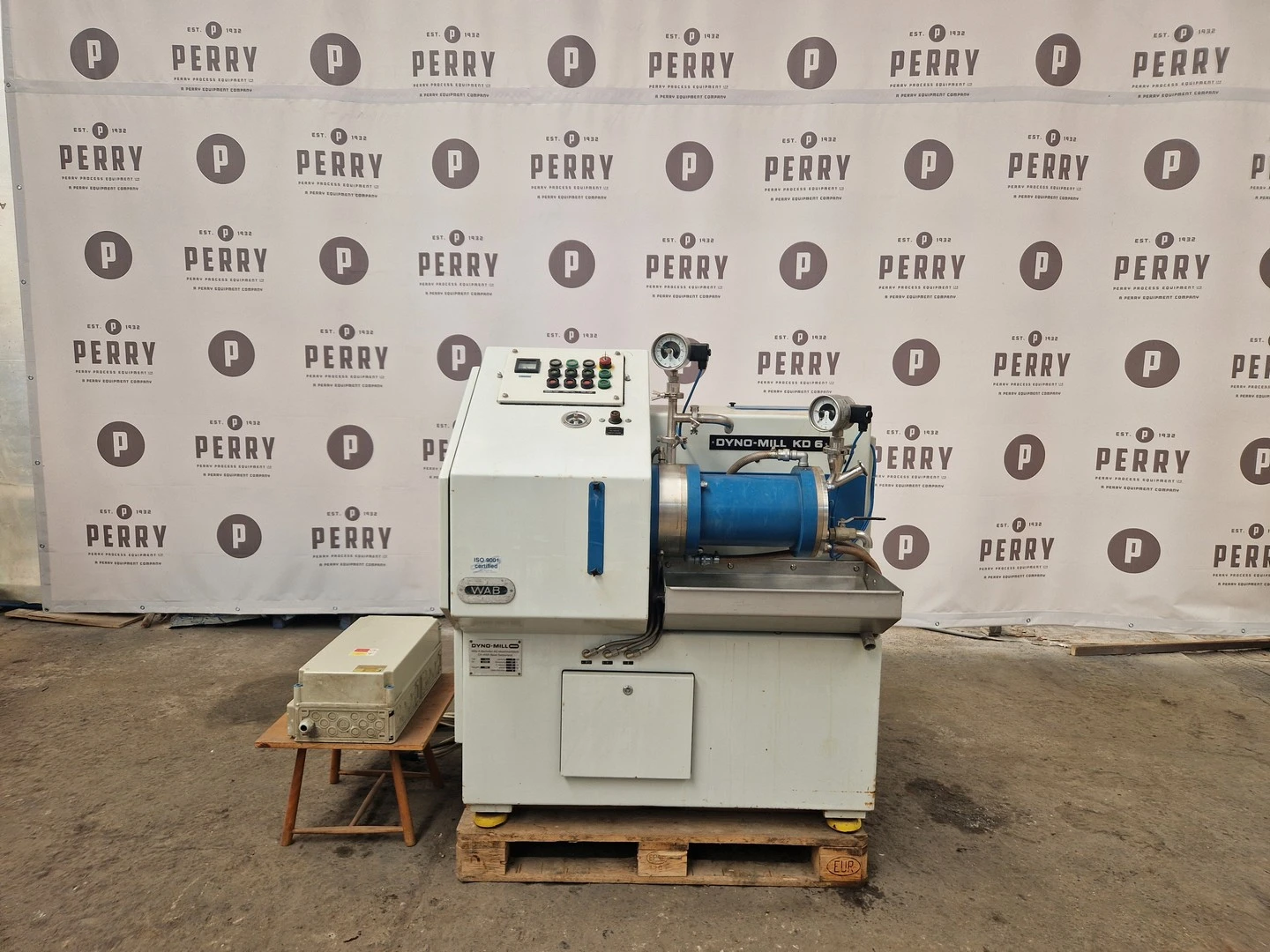

Used WAB Dyno-Mill model KD 6 (6) stainless steel horizontal bead mill. Stainless steel jacketed milling chamer has capacity approx. 6 litre and it rated max product pressure 2 bar at max temperature 80°C. Jacket rated max pressure 8 bar, min cooling water temperature -20°C. Shaft is equipped with (6) polyurethane griding discs and belt driven by EExe eII T3 el. motor 10 kW, 1465 rpm, 50 Hz. Agitator disc circumferential speed 10 m/s. Shaft sealed with double mechanical seal. Gap type of milling beads separation mechanism. Includes integrated contol panel and switchboard, carbon steel frame.
