1000 Litre Stainless Steel Vertical Storage Vessel, 1200 mm Dia x 800 mm Straight Side
Overview
Stock #:
H4363-12
Description

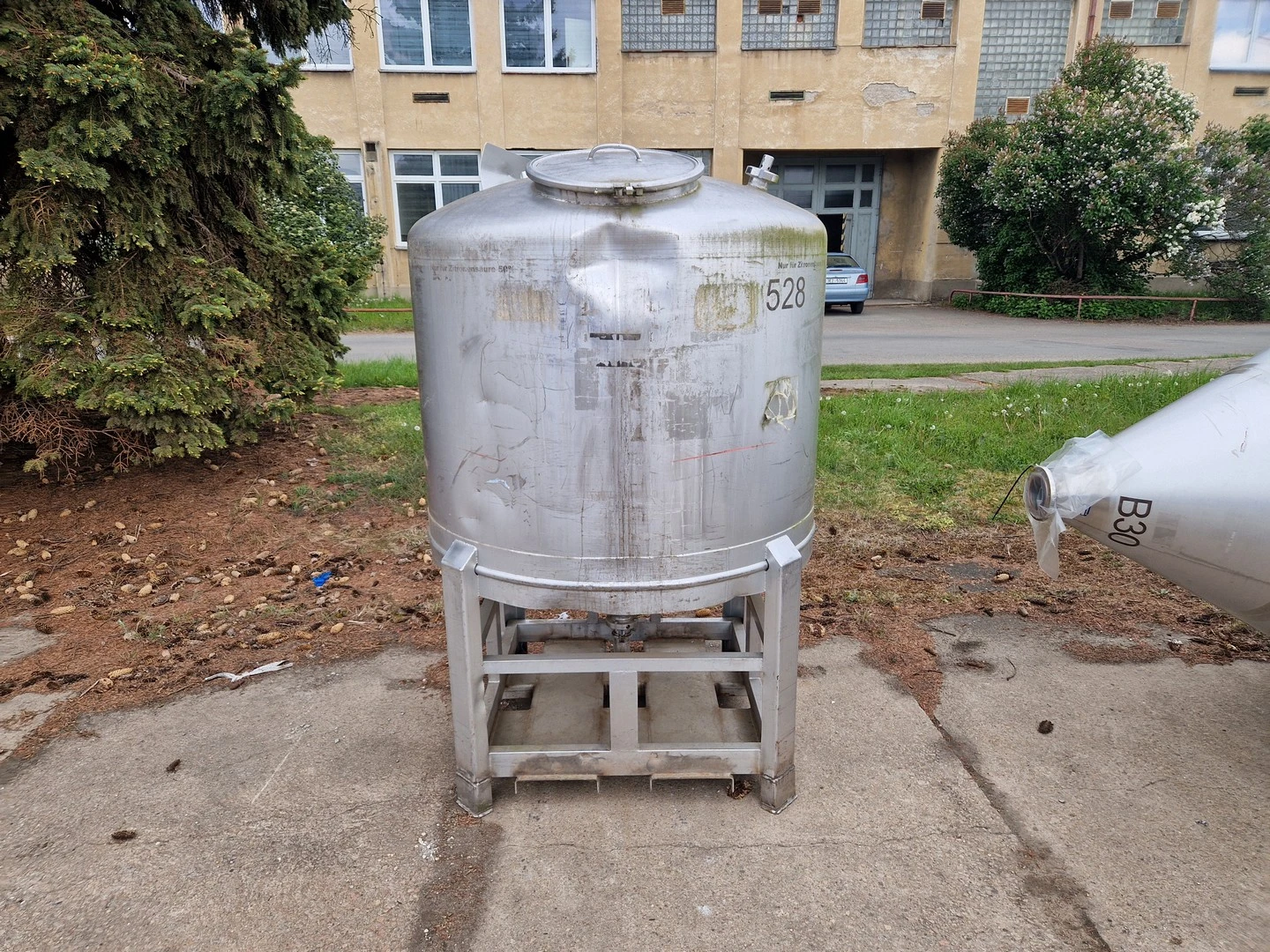

Used approximately 1000 litre capacity vertical stainless steel storage tank. Vessel measures approx. 1200 mm diameter x 800 mm straight side x 1850 mm total height. Has welded dished head with inspection manway with diameter 400 mm and welded conical bottom heads. Central bottom discharge. Unit is mounted on stainless steel frame.
Specifications
| Capacity | 264.2 gal | 1,000 L |
|---|---|---|
| Diameter | 3.94' | 1,200 mm |
| Height | 6.06' | 1,848 mm |
| Type of stainless | Stainless Steel | Stainless Steel |
| Type Of Heads | Welded dished head, Welded conical bottom | Welded dished head, Welded conical bottom |
| Vertical/Horizontal | Vertical | Vertical |
| Legs/Lugs/Skirt | Stainless steel frame | Stainless steel frame |
