Used

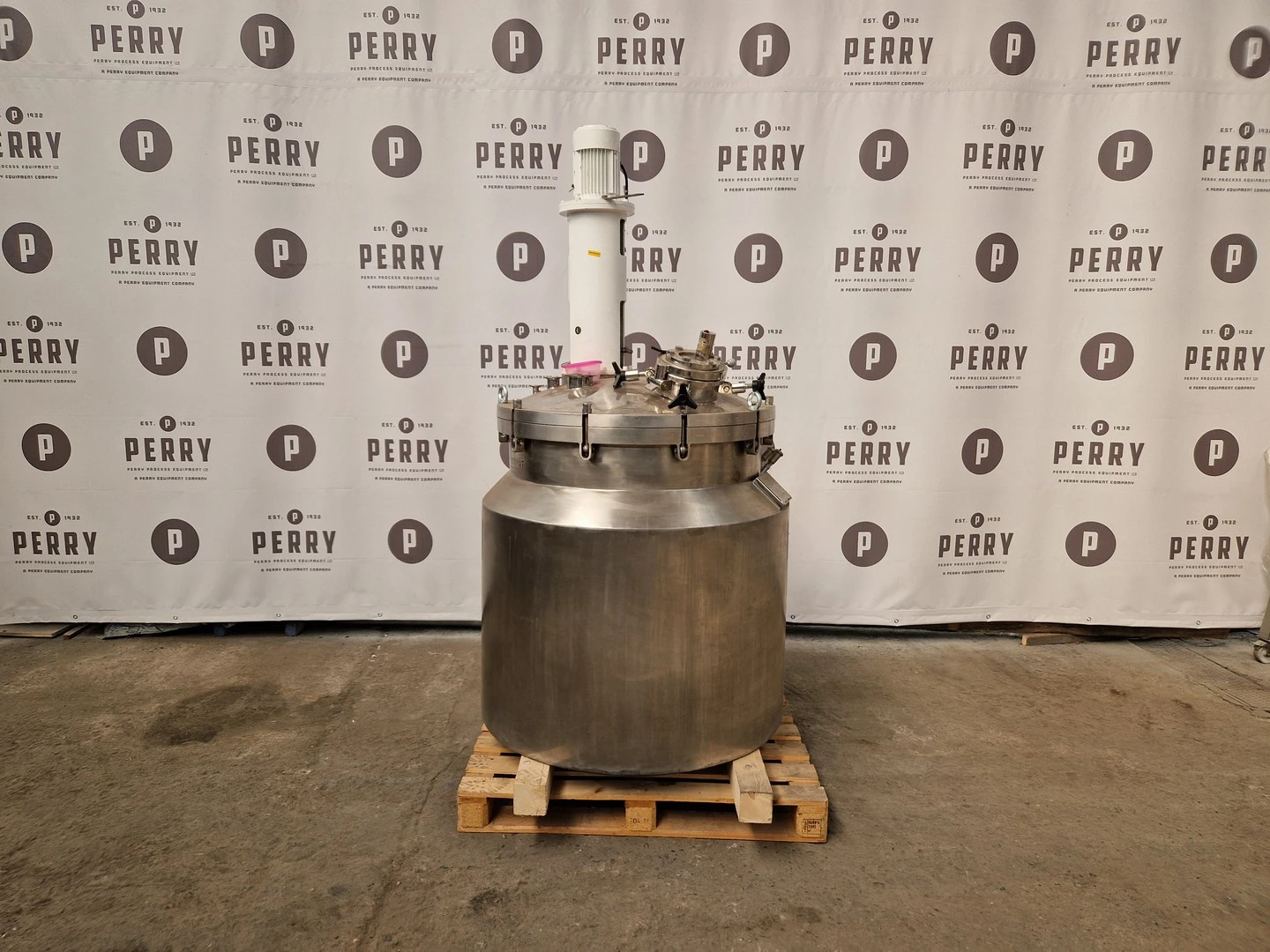

USED POLDI 535 Liters

Czech Republic
Since 1932, Perry has been buying and selling high quality used process equipment for the chemical, pharmaceutical, food, plastics and paper industries.
Overview
Reactors

Used Poldi 535 litre total capacity polished stainless steel clamp top vertical reactor. Body diameter 900 mm X 750 mm straight side and 1900 mm total height. Has bolted dished hinged top and welded bottom heads. Internal rated 2 bar pressure and 150 deg. C. max. temperature, jacket rated 4 BAR max. pressure and 150 deg. C. max. temperature. Central bottom discharge. Propeller diam. 160 mm type of agitator and lenght is 800 mm, is drive over gear box electric motor 0,45 kW, with 750 PRM.

Specs
Capacity
141.3 gal
535 L
Internal Pressure
29 PSI
2 bar
Internal Temperature
302°F
150°C
Jacket Pressure
58 PSI
4 bar
Jacket Temperature
302°F
150°C
Dimensions
900 mm X 750 mm X 1900 mm
900 mm X 750 mm X 1900 mm
