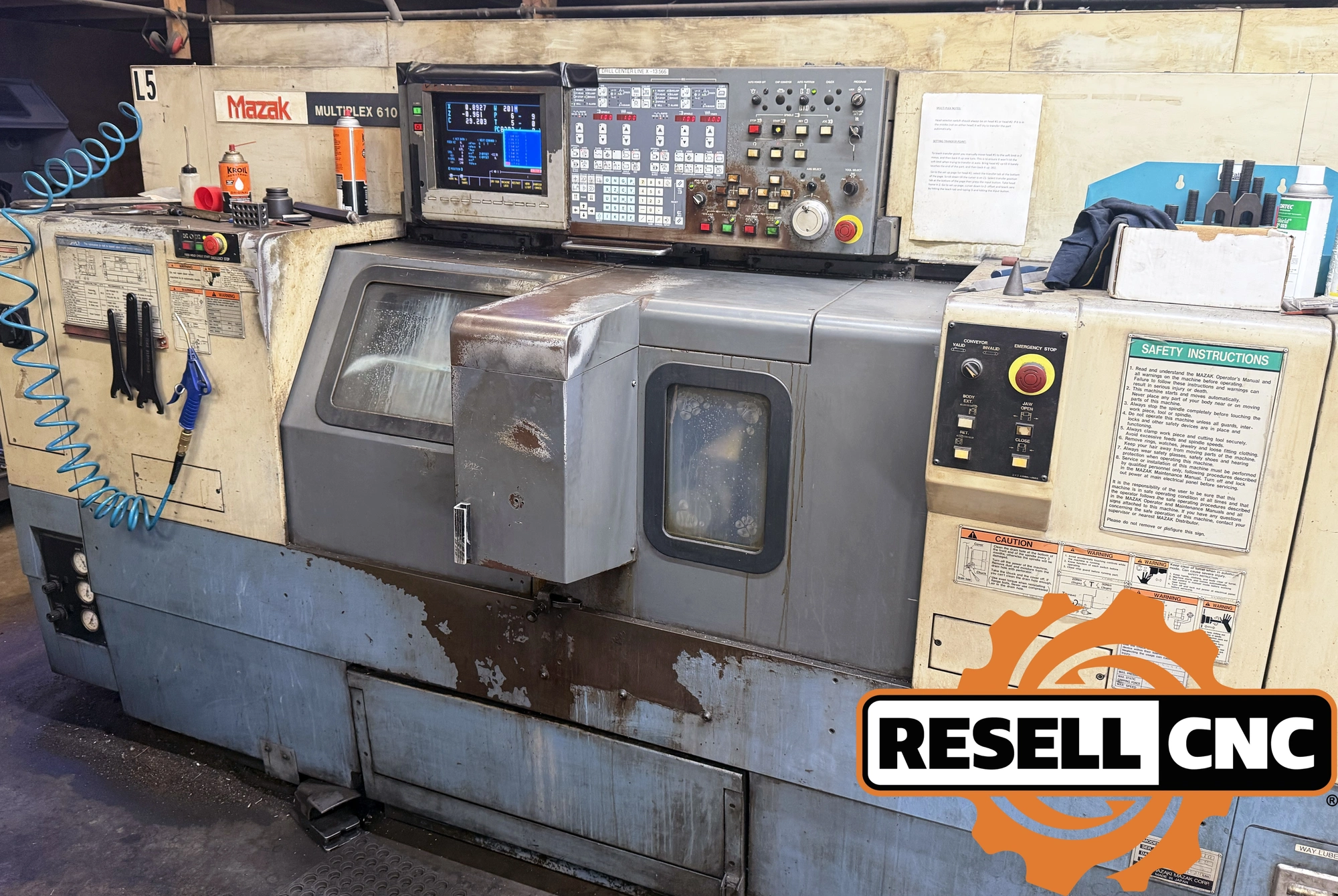

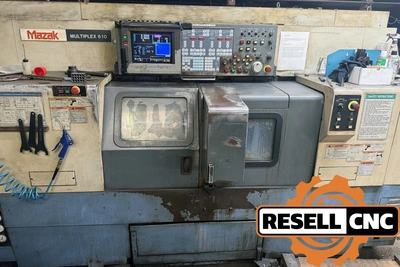

USED 1998 Mazak Multiplex 610

X2nd Turret Live Tooling: true
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Machining Length: 8.86" (chucking) / 25.6" (shaft)

W-Axis (sub): 23.8"

C-Axis Resolution: 0.001°

C-Axis Rapid: 100 RPM

Bar Capacity: 3.0
B Axis: false
C Axis: true
Chuck Size: 12.0
Chuck Type: Hydraulic

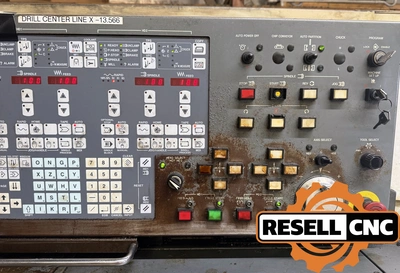

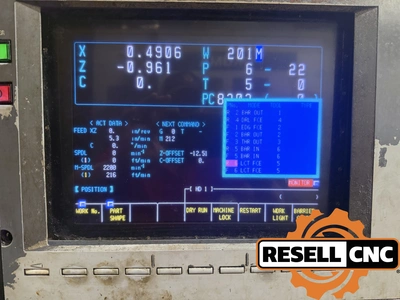

Control Make Model: Mazatrol T-Plus
Distance Between Centers: 57.09
Live Milling Hp: 10
Live Milling Max Rpm: 4500
Live Milling Thru Spindle Coolant: false

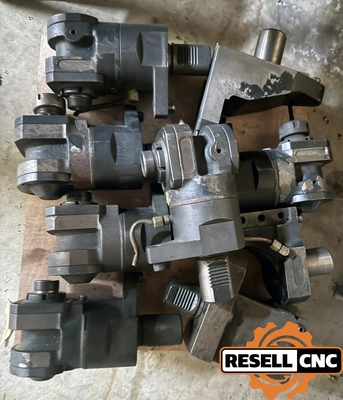

Live Tooling Milling: true
Max Cutting Turning Diameter: 22.0
Max Swing Over Bed: 22.04
Max Turning Cutting Length: 8.86
Programmable Tailstock: false
Rapid Traverse: 945
Second Bar Capacity: 3.0
Second Chuck Size: 12.0
Second Spindle Bore: 3.46
Second Spindle Motor: 30
Second Spindle Nose: A2-8
Second Spindle Speed: 3000
Single Turret: false
Single Turret Live Tooling: true
Spindle Bore: 3.46
Spindle Motor: 30
Spindle Nose: A2-8
Spindle Speed: 3000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 24.0
Total Spindles: 2
Turret Options: Turrets: Dual 12-Station

Twin Turret: false
X Travel: 12.2
Y Axis: false
Z Travel: 23.8
