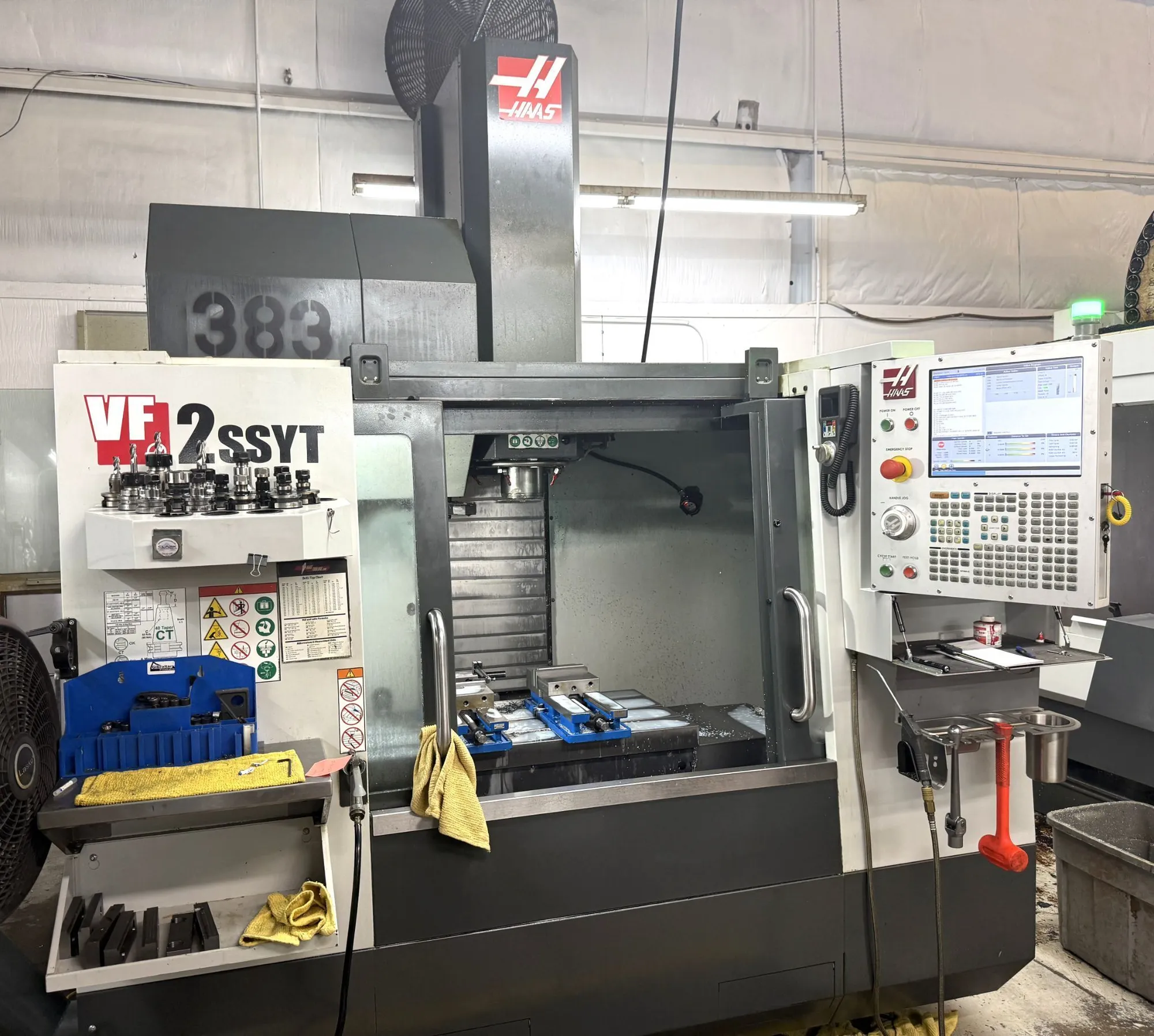

USED 2021 HAAS VF-2SSYT

X Axis 30 " 762 mm
Y Axis 20 " 508 mm
Z Axis 20 " 508 mm
Spindle Nose to Table (~ max) 24 " 610 mm
Spindle Nose to Table (~ min) 4 " 102 mm
TABLE S.A.E. METRIC
Length 36 " 914 mm
Width 18 " 457 mm
T-Slot Width 5/8 " 16 mm
T-Slot Center Distance 4.92 " 125.0 mm
Number of Std T-Slots 3 3
Max Weight on Table (evenly distributed) 1500 lb 680 kg
SPINDLE S.A.E. METRIC
Max Rating 30 hp 22.4 kW
Max Speed 12000 rpm 12000 rpm
Max Torque 90 ft-lb @ 2000 rpm 122 Nm @ 2000 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Taper BT or CT 40 BT or CT 40
Bearing Lubrication Air/Oil Injection Air/Oil Injection
Cooling Liquid Cooled Liquid Cooled
SPINDLE (OPT) S.A.E. METRIC
Max Rating 30 hp 22.4 kW
Max Speed 15000 rpm 15000 rpm
Max Torque 90 ft-lb @ 2000 rpm 122 Nm @ 2000 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Taper BT or CT 40 BT or CT 40
FEEDRATES S.A.E. METRIC
Rapids on X 1400 in/min 35.6 m/min
Rapids on Y 1400 in/min 35.6 m/min
Rapids on Z 1400 in/min 35.6 m/min
Max Cutting 833 in/min 21.2 m/min
AXIS MOTORS S.A.E. METRIC
Max Thrust X 1995 lb 8874 N
Max Thrust Y 1995 lb 8874 N
Max Thrust Z 3085 lb 13723 N
TOOL CHANGER S.A.E. METRIC
Type SMTC SMTC
Capacity 30+1 30+1
Max Tool Diameter (adjacent empty) 5 " 127 mm
Max Tool Diameter (full) 3 " 76 mm
Max Tool Length (from gage line) 11 " 279 mm
Max Tool Weight 12 lb 5 kg
Tool-to-Tool (avg) 1.6 sec 1.6 sec
Chip-to-Chip (avg) 2.2 sec 2.2 sec
GENERALS S.A.E. METRIC
Air Required 4 scfm, 100 psi 113 L/min, 6.9 bar
Coolant Capacity 55 gal 208 L
