USED STEDMAN FC2215

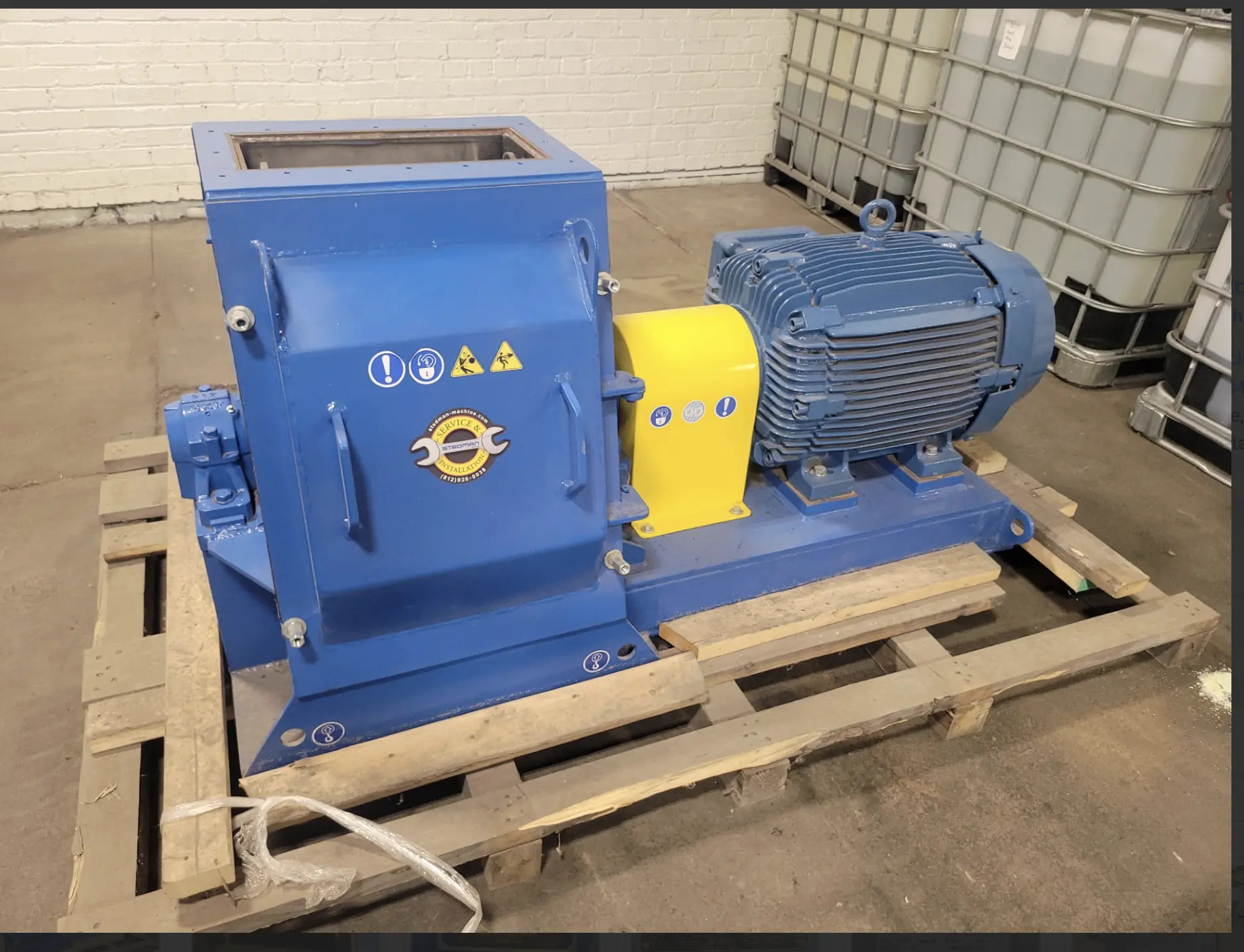

# 🏭 EQUIPMENT SPECIFICATIONS: FC 22x15 Full Circle Hammer Mill

### 📋 MACHINE OVERVIEW
* **Model:** FC 22x15
* **Equipment Type:** Fully Reversible Air-Swept Hammer Mill
* **Capacity:** 15 tons per hour
* **Reduction Ratio:** Up to 20:1
* **Feed Size:** Up to 1/2"–1" (depending on material)

---

## ⚙️ TECHNICAL SPECIFICATIONS

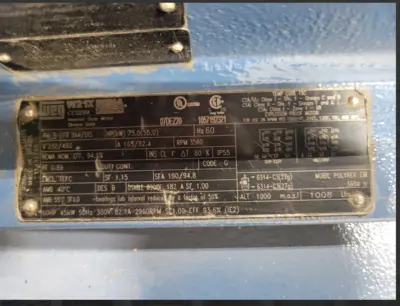

### **Drive & Power**
* **Power Requirement:** 100 to 150 HP
* **Standard Drive Range:** Typically 30–75 HP (depending on specific configuration and material)
* **Drive Configuration:** Direct coupled with motor

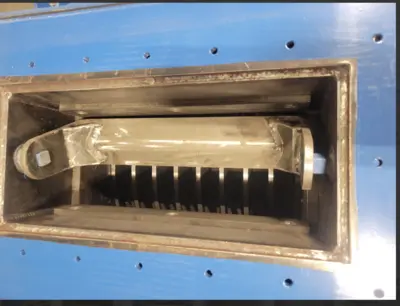

### **Rotor & Cage**
* **Rotor Design:** Twin rotor tubular design with turbulence channel
* **Rotor Diameter:** 22 inches
* **Cage Width:** 15 inches
* **Bearing Type:** Sealed plummer block with lubrication, self-aligned bearing

---

## 🛠️ CONSTRUCTION & FEATURES

* **Housing Construction:** Heavy-duty carbon steel housing with replaceable wear components
* **Screen System:** Heavy sieve holding ring
* **Sealing:** Dual sealing system for dust and material containment
* **Feed System:** Pocket feeder equipped with a magnet
* **Discharge:** Open discharge, no screens (Available with an optional slide gate and pocket feeder)

---

## ♻️ APPLICATIONS

Designed for versatile material reduction, including but not limited to:
* Limestone & Agricultural Lime
* Fertilizer
* Minerals & Chemicals
* Coal
* Cattle & Poultry Feed
