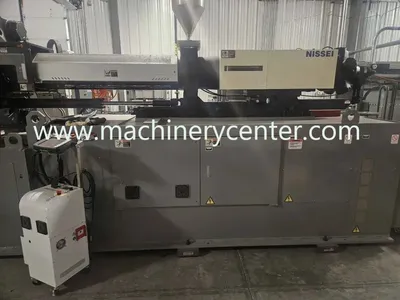

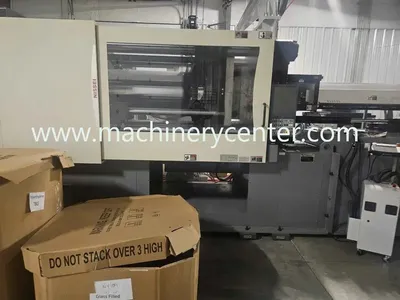

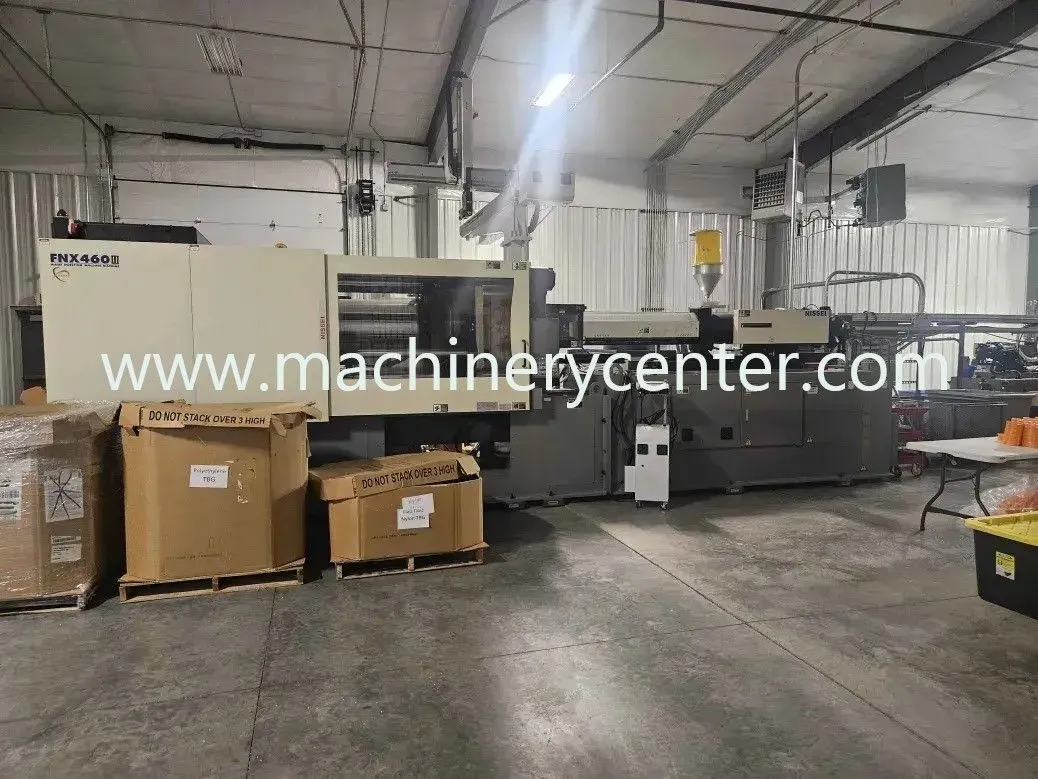

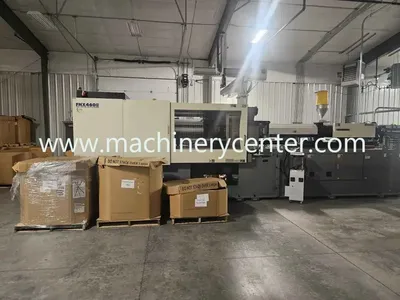

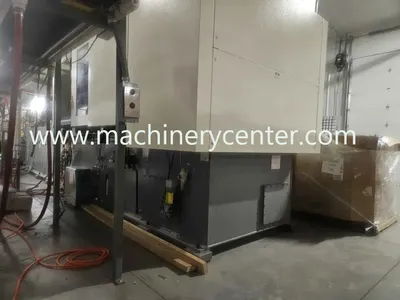

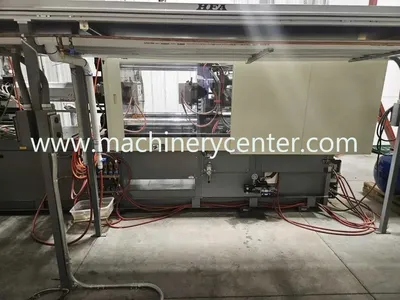

USED 2021 NISSEI FNX460-III-160A
Overview
Description
500 Ton, 68 Oz. Nissei Hybrid Injection Molding Machine '21
Model: FNX460-III-160A
ONLY 109 HOURS !!!!
Specifications
| Year | 2021 | 2021 |
|---|---|---|
| Electric | Yes | Yes |
| Tonnage | 500 | 500 |
| Shot Size | 68 | 68 |
| Platen Size | 46.9" x 46.9" | 46.9" x 46.9" |
| Tie Bar Spacing | 32.3" x 32.3" | 32.3" x 32.3" |
| Daylight (Min/Max) | 55.1" Max | 55.1" Max |
| Mold Height (Min) | 14.8" | 14.8" |
| Mold Height (Max) | 55.1" | 55.1" |
| Clamp Stroke | 40.4" | 40.4" |
| Ejector Stroke | 6.3" | 6.3" |
| Control | Tact IV | Tact IV |
| Dimensions | Clamp: 20' L X 8' W X 8'6" H / Injec. Unit: 17' L X 8' W X 7' H | Clamp: 20' L X 8' W X 8'6" H / Injec. Unit: 17' L X 8' W X 7' H |
| Weight | Clamp: 30,000 Lbs/ Inj. Unit: 16,000 Lbs. | Clamp: 30,000 Lbs/ Inj. Unit: 16,000 Lbs. |
Equipped With
68 Oz. Injection Unit
3-Stage Back Pressure Metering Velocity
Barrel Heat Radiation and Burn Prevention
Remote Maintenance Function
Nozzle
and Barrel Temp Upper/Lower Limit Alarm
Stagnant Material Flow Prevention Function
Mold Clamping Safety Device
Core Pull
Air Blow
