USED 2015 MATSUURA VX-1500

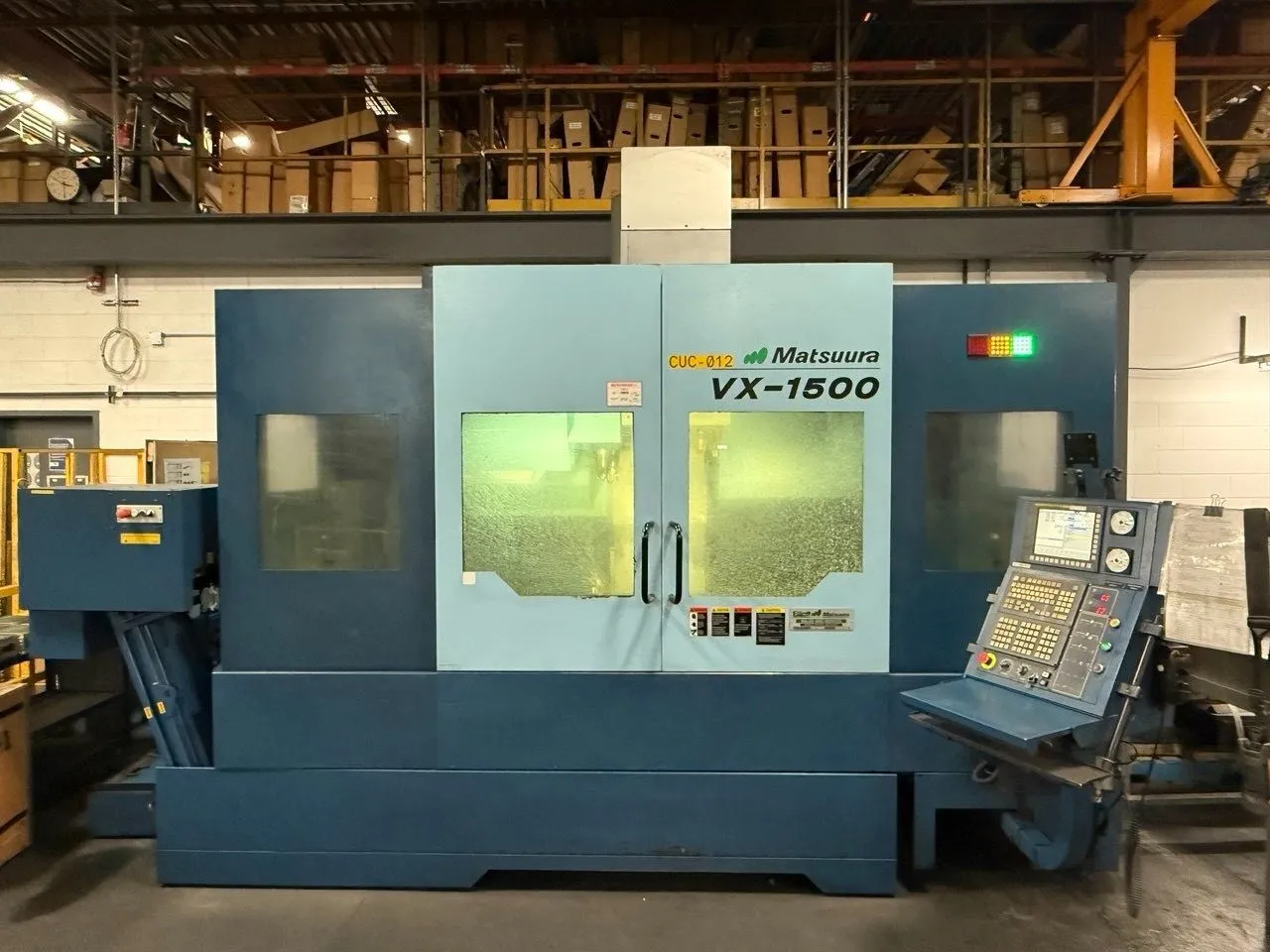

2015 MATSUURA VX-1500 VERTICAL MACHINING CENTER

Manufacturer: Matsuura
Model: VX-1500
Mfg Date: 2015-05

Power: 200V / 3 Phase / 60 Hz

Cutting Hours:
Power On Time: 55,281 hours
Operating Time: 32,192 hours
Cutting Time: ~11,000 hours
Cycle Time: 37,888 hours

Travels (X, Y, Z): 60in x 27.55in x 24.01in (1,524 x 700 x 610 mm)
Table Size: 66.92in x 27.55in (1,700 x 700 mm)
Table Capacity: 4,400 lbs (2,000 kg)
Spindle Taper: CAT 50 BIG-PLUS
Spindle Speed: 50 - 15,000 RPM
Spindle Motor: 20 / 40 HP (15 / 30 kW)
Maximum Spindle Torque: 258 ft-lbs (350 Nm)
Spindle Lubrication: Oil-Air
Spindle Diameter: 3.54in (90 mm)

Tool Changer Capacity: 30 Tools
ATC Type: Double Grip Arm, Random Bi-Directional
Maximum Tool Diameter: 4.92in (125 mm) Adjacent Pockets Full
Maximum Tool Diameter: 7.87in (200 mm) Adjacent Pockets Empty
Maximum Tool Length: 15.75in (400 mm)
Maximum Tool Weight: 33 lbs (15 kg)
Rapid Traverse (X, Y, Z): 1,417 IPM (36 m/min)
Feed Rate: 0.04 - 787 IPM (1 - 20 m/min)
T-Slots: 6 x 18 mm on 100 mm Centers
Positioning Accuracy: ±0.00019in (±0.005 mm)
Repeatability: ±0.000039in (±0.001 mm)
Coolant Tank Capacity: 158 gal (600 L)

Control: Fanuc G-Tech 31iB

Through-Spindle Coolant: 300 PSI CTS
Air Through Spindle: Yes
Chip Conveyor: Lift-Up Scraper Type Conveyor
Spindle Air Blow: Yes

Probe System: Renishaw OMP-60 Touch Probe
Tool Setter: Renishaw NC-4 Laser Tool Setter

Weight: Approx. 24,250 lbs
Dimensions: 155in x 146in x 113in
