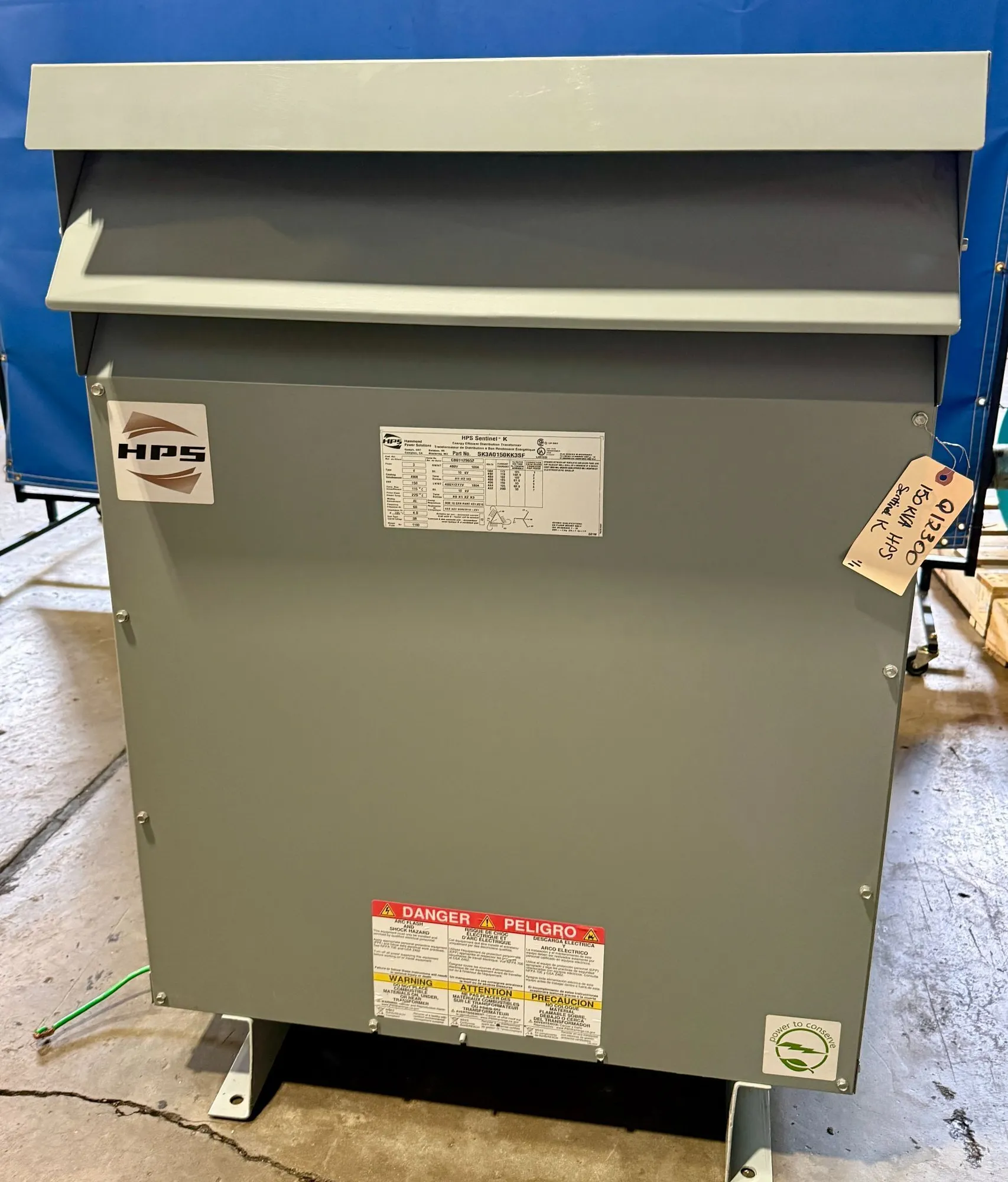

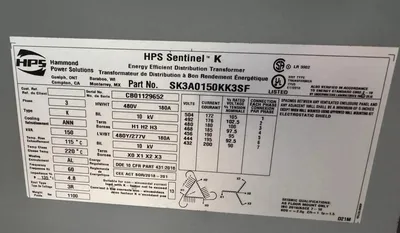

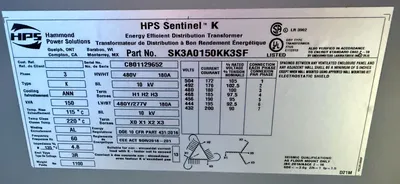

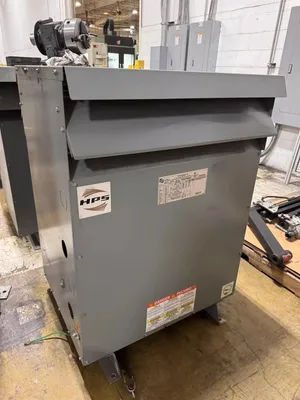

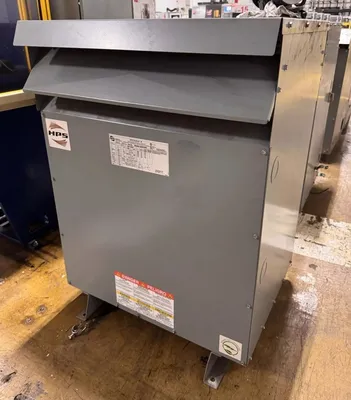

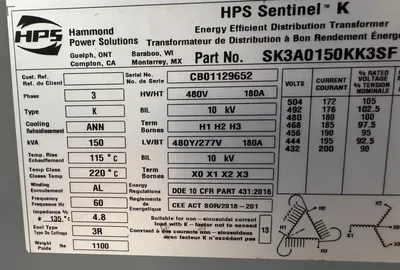

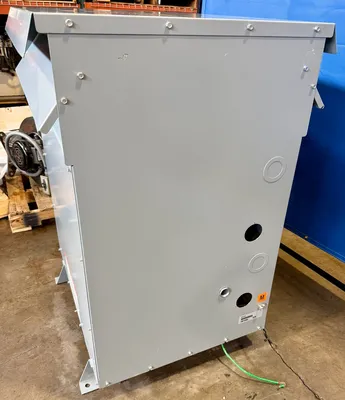

150 kVA HAMMOND POWER SOLUTIONS SENTINEL K TRANSFORMER, Part No. SK3A0150KK3SF, K-Rated Distribution, 3-Phase, 480D V Primary to 480Y/277 V Secondary, 60 Hz, Multi Tap, Dry Type.
| Catalog Number | SK3A0150KK3SF | SK3A0150KK3SF |
| Phase - Electrical | 3 | 3 |
| Primary Input Voltage | 480D V | 480 V |
| Secondary Output Voltage | 480Y/277 V | 480,277 V |
| VA Rating | 150 kVA | 150 kV·A |
| Multi-Tap? | Yes | Yes |
| Frequency | 60 Hz | 60 Hz |
| Temp Class | 220° C | 220°C |
| Temp Rise | 115° C | 115°C |
| % Impedance | 4.8 | 4.8 |
| Enclosure Type | 3R | 3R |
| Winding Material | Aluminum | Aluminum |
| Dimensions | 32" x 30" x 45" | 32" x 30" x 45" |
| Weight | 1,200 lbs | 1,200 lbs |
K-Rated Distribution
Air Natural Convection Cooling
