USED 2013 SHARP 22100B

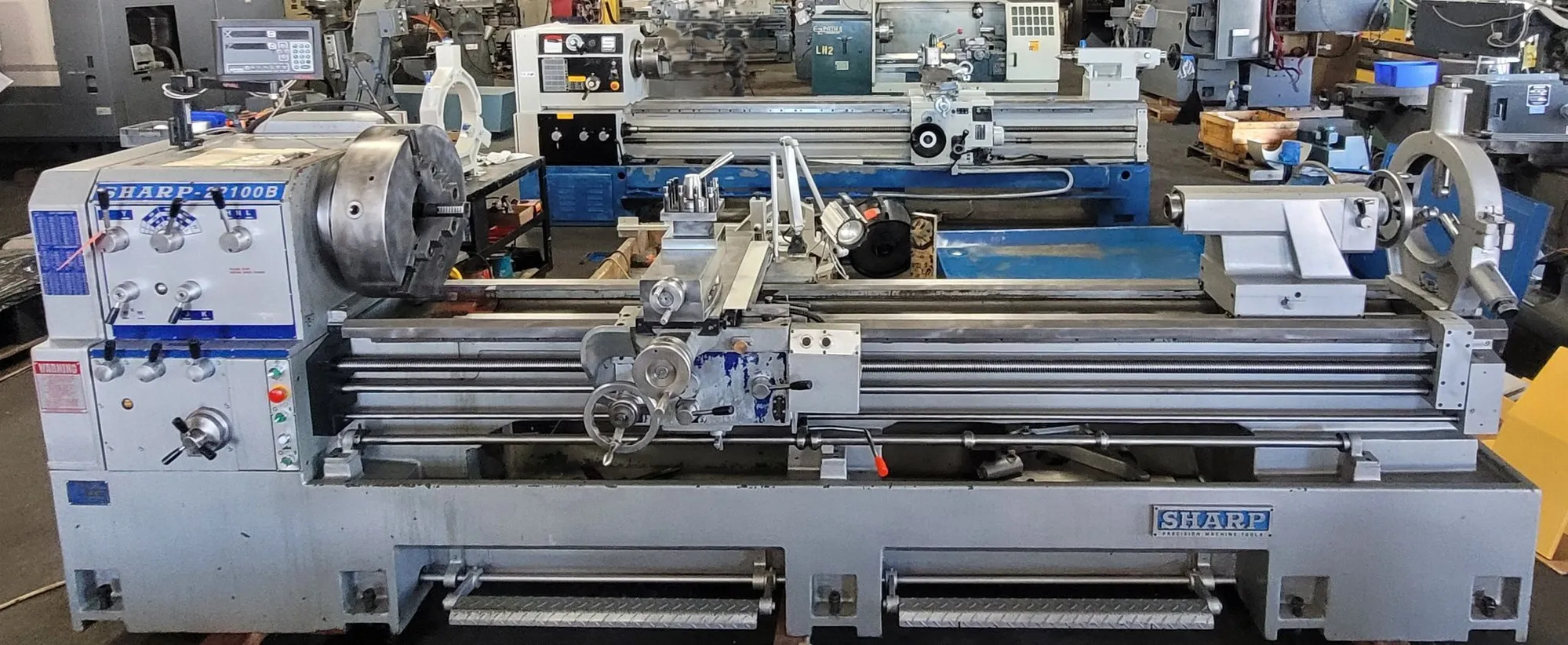

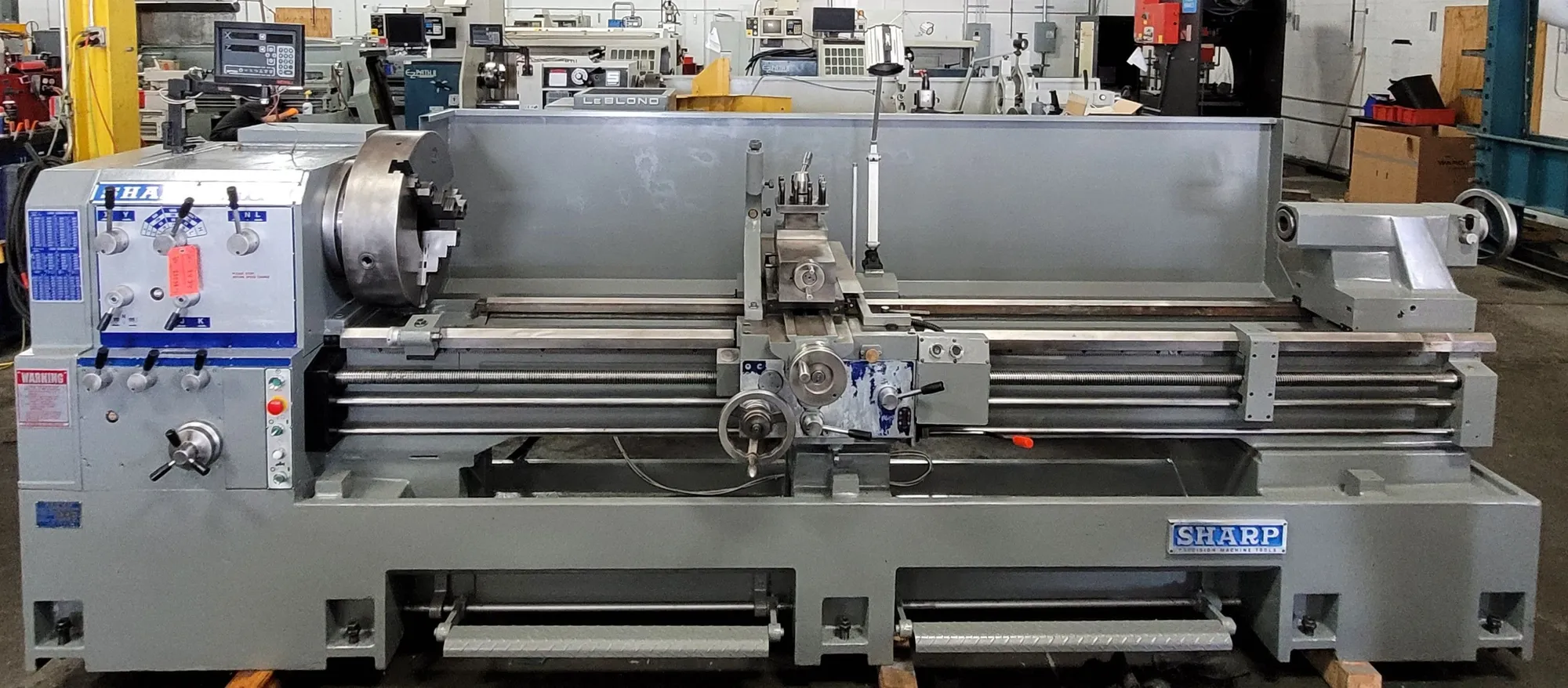

22"/31" x 100" Sharp 22100B Gap Bed Lathe w/Newall DRO

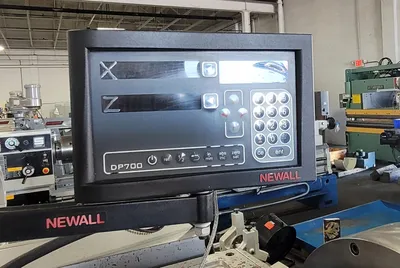

Newall DP700 DRO

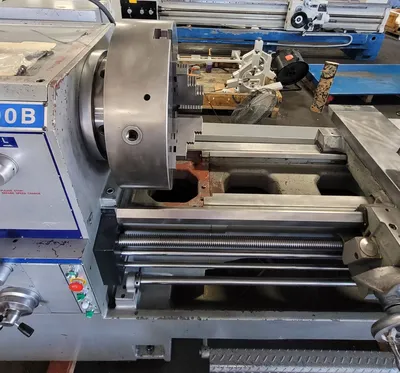

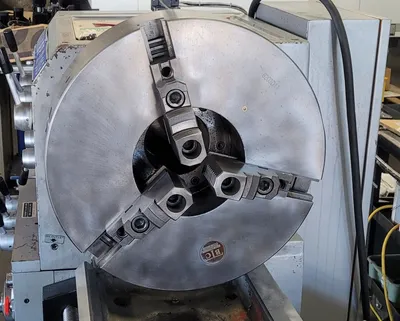

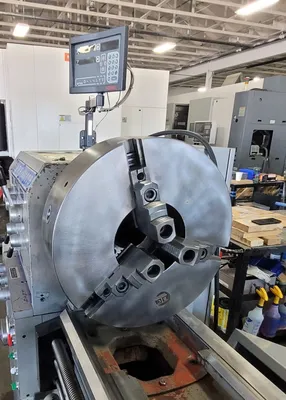

16" BTC 3 Jaw Chuck

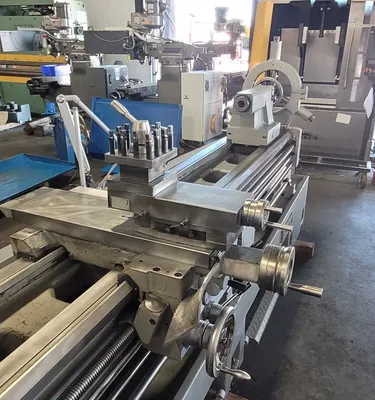

4 Way Toolpost

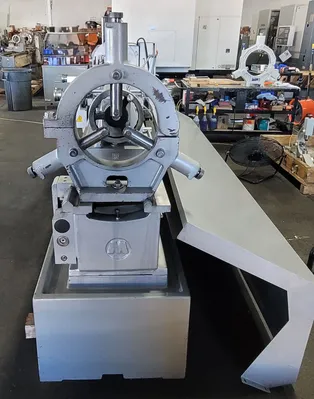

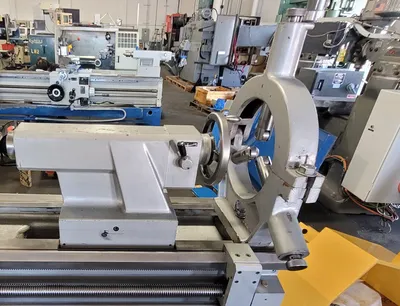

Steady Rest(4″ – 11.5″)
Direct selection for inch / metric threads
Quick change gearbox
One piece Meehanite cast bed

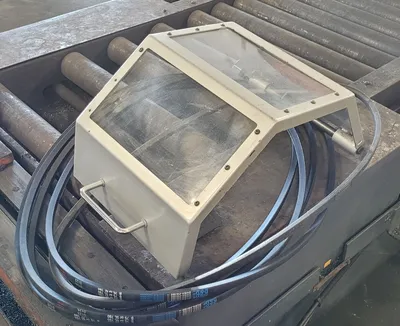

Splash guard & 16″ chuck guard
Coolant system,
Halogen light
4-way carriage stop

Capacity
Swing Over Bed: 22"
Swing Over Cross Slide: 13.2"
Swing Over Gap: 31"
Distance Between Centers: 100"

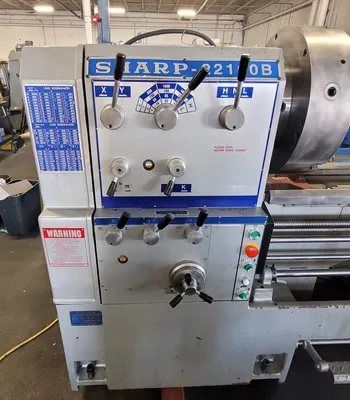

Headstock
Spindle Bore: 4.5”
Spindle Nose: D1-11 Camlock
Spindle Speeds (12 Steps): 10 – 1,000 RPM
Spindle Motor: 15 HP

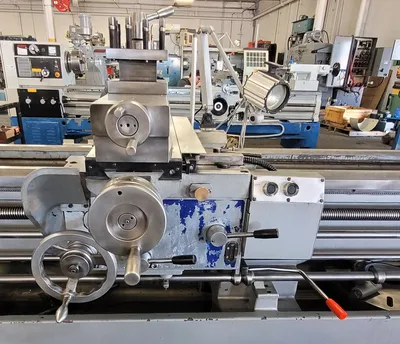

Carriage & Travel
Bed Width: 15.75"
Cross Slide Travel: 11.8"
Compound Rest Travel: 6.2"
Longitudinal Feeds: 0.0022" – 0.032"/Rev
Cross Feeds: 0.00026" – 0.035"/Rev

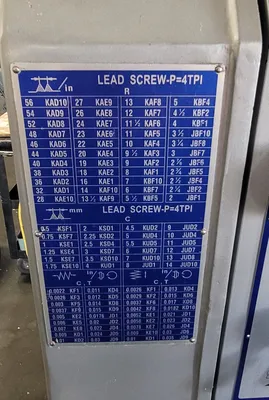

Threads
Inch Threads (44): 2 - 56 TPI
Metric Threads (24): 0.5 - 14 mm
Diametral Pitch Threads (36): 4 – 56

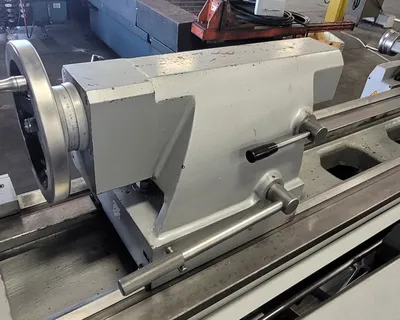

Tailstock
Quill Diameter: 3"
Quill Travel: 6.5"
Quill Taper: MT #5

Dimensions & Weight
Power Requirements: 230V / 460V, 3-Phase
Approximate Weight: 6,930 lbs
Overall Dimensions: 157" L x 41" D x 50" H
