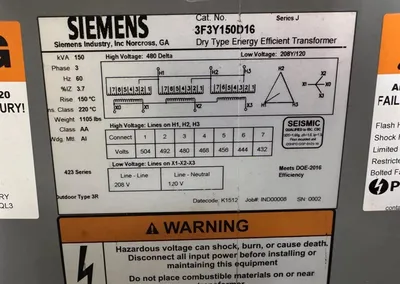

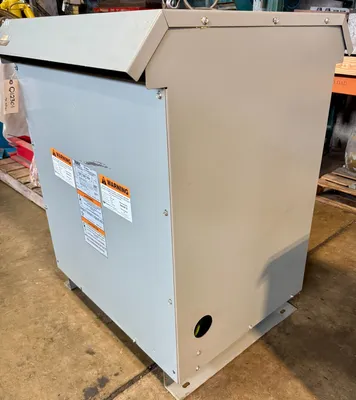

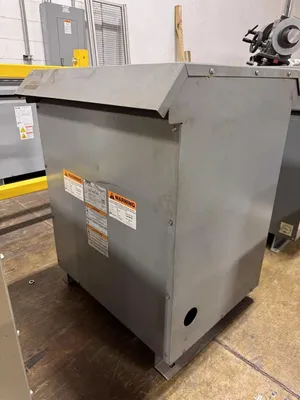

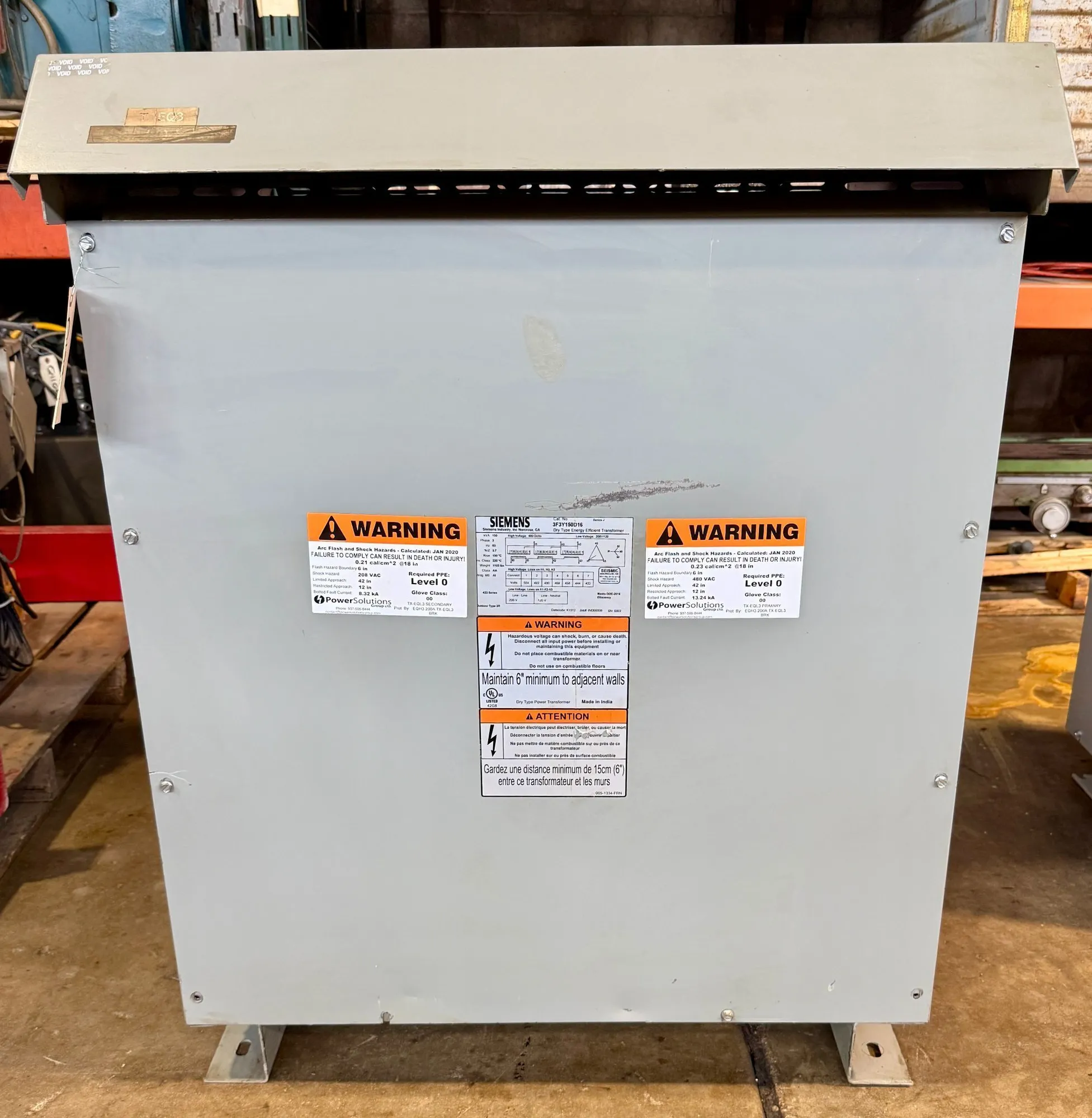

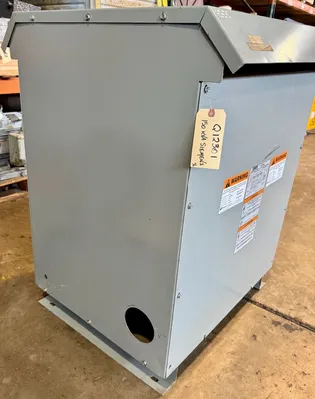

150 kVA SIEMENS TRANSFORMER, Catalog # 3F3Y150D16, J Series, 3-Phase, 480D V Primary to 208Y/120 V Secondary, 60 Hz, Multi Tap, Ventilated, Dry Type, New 2015.
| Catalog Number | 3F3Y150D16 | 3F3Y150D16 |
| Phase - Electrical | 3 | 3 |
| Primary Input Voltage | 480 Delta VAC | 480 V |
| Secondary Output Voltage | 208Y/120 VAC | 120 V |
| VA Rating | 150 kVA | 150 kV·A |
| Multi-Tap? | Yes | Yes |
| Insulation Temperature | 220° C | 220°C |
| Mounting | Floor | Floor |
| Frequency | 60 Hz | 60 Hz |
| Temp Rise | 150° C | 150°C |
| % Impedance | 3.7 | 3.7 |
| Enclosure Type | NEMA 3R | NEMA 3R |
| Dimensions | 33" x 33" x 43" | 33" x 33" x 43" |
| Weight | 1,250 lbs | 1,250 lbs |
