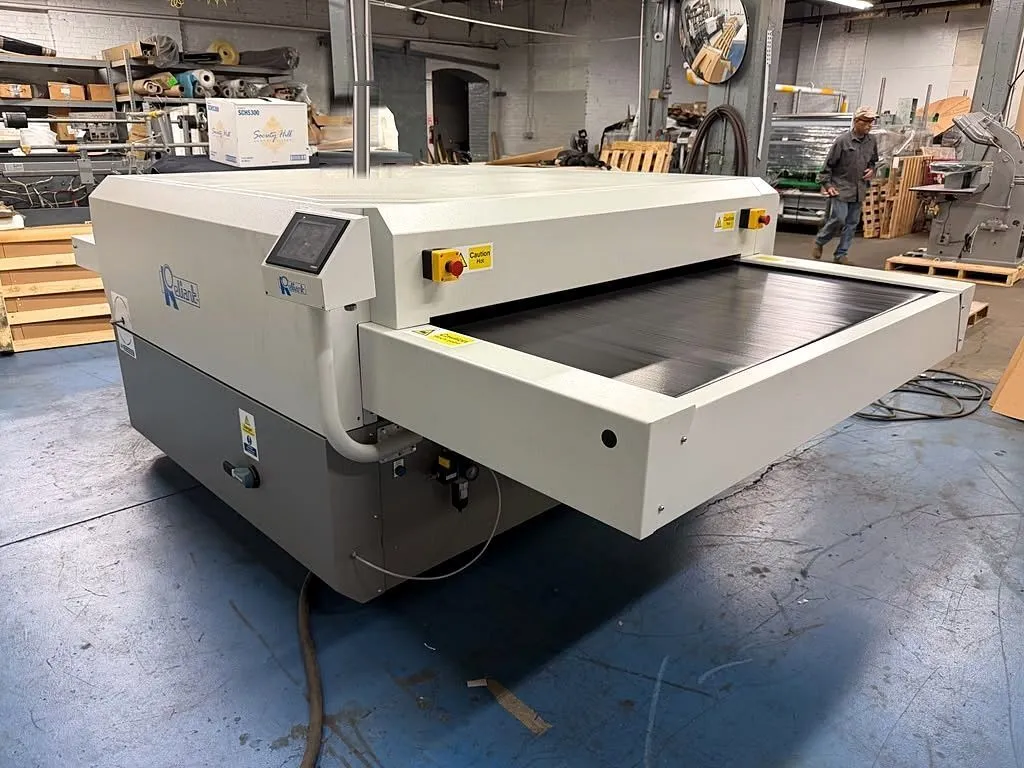

USED 2024 RELIANT Magnum 160

2024 RELIANT Magnum 160, a demo unit perfect for printing and converting. Features a 1620mm belt, 1700mm heat tunnel, and advanced heating control. Includes AC inverter motor and mini PLC with touchscreen. Ideal for panels and reel-to-reel applications. comes with a 6 month OEM warranty

Magnum 160
Continuous Roll-Fusing / Laminating Machine — 1620mm Belt
Condition: Demonstration Unit (Demo)
6 month OEM warranty included
Key Specifications
Running speed range 2–20 m/min
Temperature range 0–220ºC
Belt width 1620mm
Heating tunnel length 1700mm
Electrical supply 220V
Features & Construction
• 1620mm belt width
• 1700mm long heat tunnel
• Separate 4-zone heating (2 zones top / 2 zones bottom)
• Single (one) zone of temperature control across the width
• Independent PID micro-processing temperature control of all zones
• Constant BSZ belt temperature monitoring system
• Fully computerised onboard mini PLC control system with touchscreen input and job memory recall
• Constant belt speed controlled using AC inverter motor
• Unique Synchro-Track belt alignment system for longer, trouble-free belt life
• Continuous PTFE-coated, low-profile, scarf-joined conveyor processing belts
• Felt wiper cleaning bars located on top & bottom belts
• Split-side panel system for fast & easy belt replacement
• Floating upper modules to ensure consistent light pressure for heat transfer
• Steel pressure rollers with 3mm precision ground high-temperature rubber covers
• Mechanical gap adjustment of lower pressure roller with the GOS system
• GOS system from 0 to 10mm, in 2mm increments
• Pneumatic pressure roller (0–8 bar) via regulator on control panel
• Suitable for panels, trimmed parts or reel-to-reel application
• Straight path processing direction
• 1.0-metre lower inlet conveyor belt extension
• Off-load conveyor belt
• Super cool, energy-saving insulation
