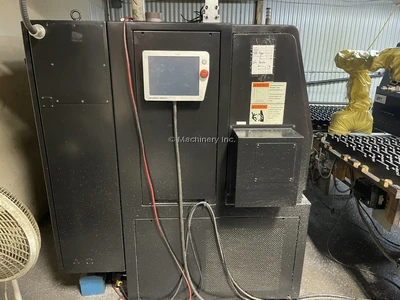

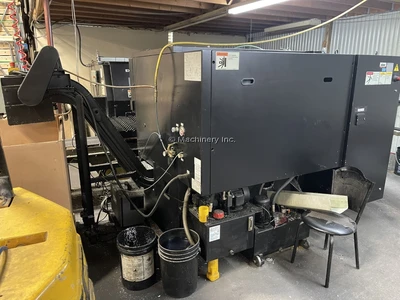

USED 2019 TAKISAWA EX-GALAXY

Manufacturer: TAKISAWA
Model: EX-GALAXY
Year: 2019
Swing: 18.9"
Turning Length: 18.74"

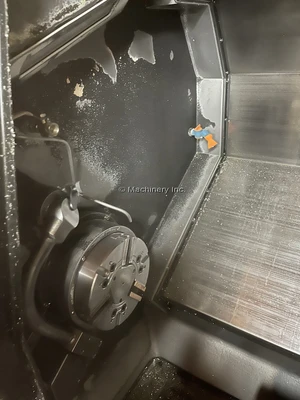

Chuck Size: 8"
Spindle Bore: *
HP: 15
RPM: 4000

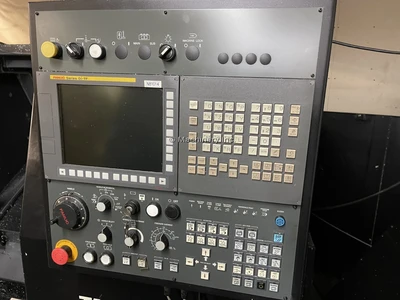

Control: FANUC OI-TF
Price: CALL US!

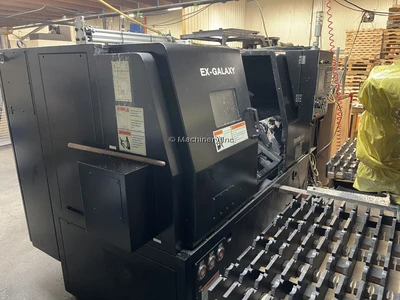

TAKISAWA EX-GALAXY CNC TURNING LATHES, 2019

Swing Over Bed 480 mm 18.90 in

Swing Over Saddle 315 mm 12.40 in

Standard Turning Diameter 216 mm 8.50 in

Max Turning Diameter 320 mm 12.60 in

Max Turning Length 476 mm 18.74 in

Bar Capacity 65 mm 2.56 in

X-Axis Travel 180 mm 7.09 in

Z-Axis Travel 530 mm 20.87 in

Spindle Speed 4,000 rpm 4,000 rpm

Chuck Size 8 in 8 in

Spindle Nose A2-6 A2-6

Spindle Through Hole Diameter 76 mm 2.99 in

Spindle Bearing Diameter 110 mm 4.33 in

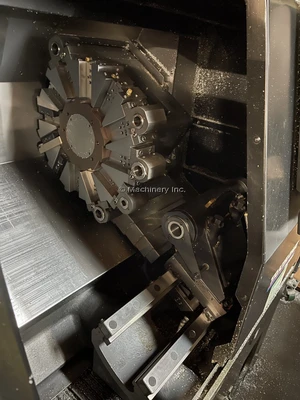

Number of Tools T12 T12

Turning Tool Shank 25 mm 0.98 in

Boring Bar Shank Diameter 40 mm 1.57 in

Stroke of Tailstock 450 mm 17.72 in

Tailstock Spindle Diameter 90 mm 3.54 in

Taper Hole of Tailstock Spindle MT4 (MT5 Optional) MT4 (MT5 Optional)

Tailstock Spindle Travel 100 mm 3.94 in

X-Axis Rapid Traverse Rate 20 m/min 787 ipm

Z-Axis Rapid Traverse Rate 24 m/min 945 ipm

Spindle Drive Motor 7.5/11 kW (11/15 hp) 11/15 hp

X-Axis Drive Motor 1.2 kW 1.61 hp

Z-Axis Drive Motor 2.5 kW 3.35 hp

Turret Index Motor 1.2 kW 1.61 hp

Height 1770 mm 69.69 in

Width 2240 mm 88.19 in

Length 1645 mm 64.76 in

Weight 4300 kg 9,480 lb


ELECTRICS: 220/3PH/60HZ

FULL LOAD CURRENT: 30A

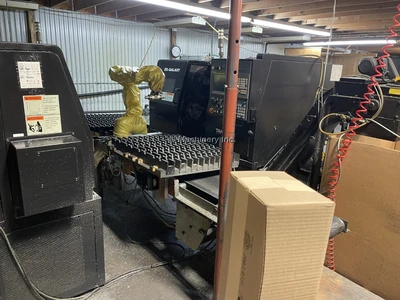

(2) IDENTICAL MACHINES AVAILABLE


VERY LOW HOURS!!!

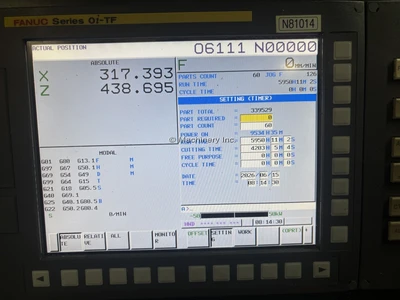

HOURS MACHINE #14:

POWER ON: 9534 HOURS

RUN TIME: 5950 HOURS

CUTTING: 4203 HOURS

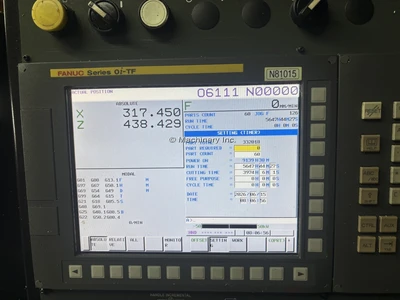

HOURS MACHINE #15:


POWER ON: 9139 HOURS

RUN TIME: 5647 HOURS

CUTTING: 3974 HOURS

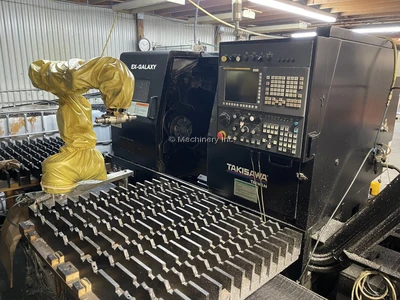

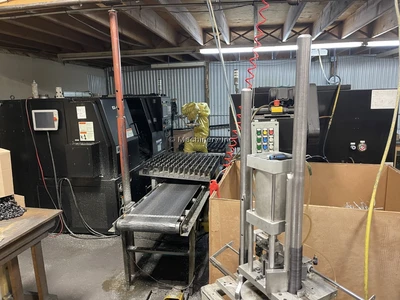

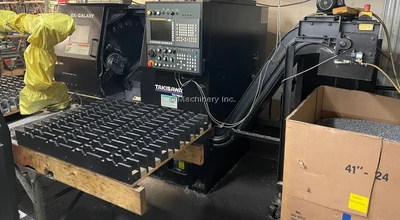

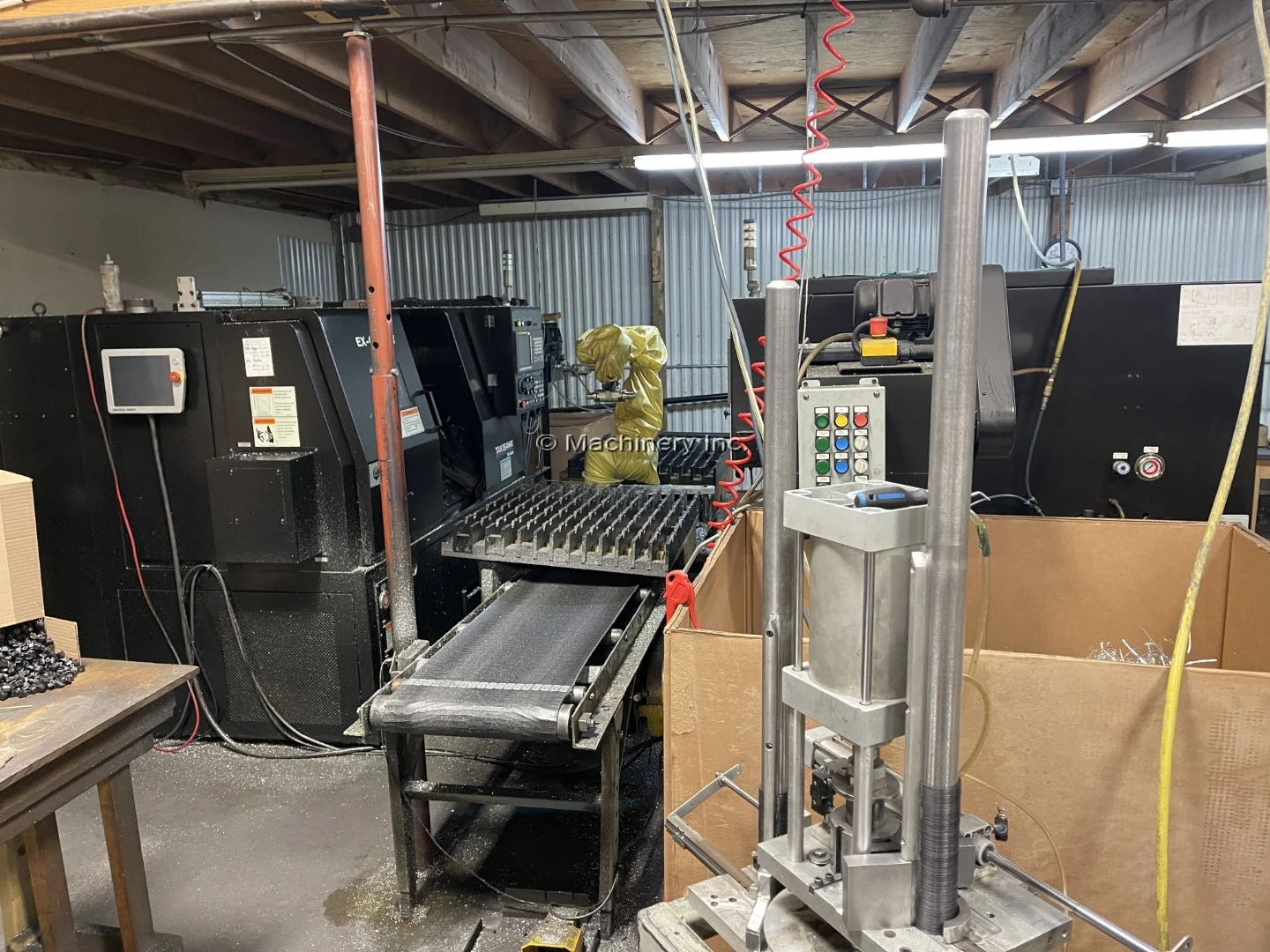

NOTE: ROBOT IS NOT FOR SALE!
