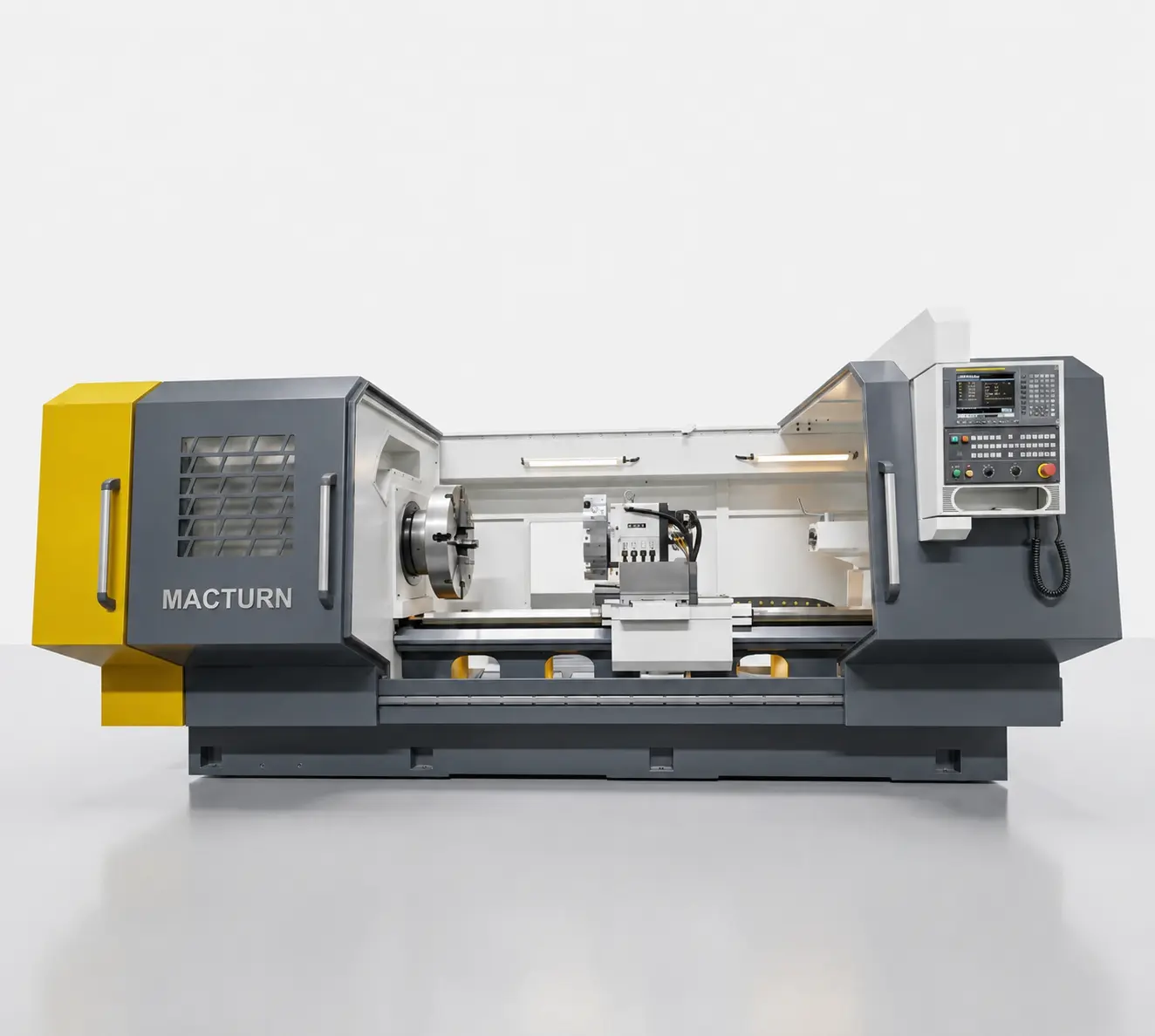

NEW Macturn 10 HS CNC
Overview
MEGABORE CNC LATHE MACTURN 10
Spindle Bore ……………..…………. 10 Inch
Swing over bed …………………. 1000 mm
Centre Distance ………………… 2000 mm
Loading Capacity …………………..… 4 Ton
CNC Controller……............. Fanuc Oi-TF
Specs
MEGABORE MODEL MACTURN 10
Spindle Bore 10 Inch (255 mm)
Center Height 500 mm
Swing over bed 1000 mm
Swing over cross – slide 630 mm
Distance between centres 2000 mm
Bed width on carriage guideway 650 mm
Spindle speeds Low: 15 ~ 100 rpm High 100 ~ 350 rpm
Maximum Traverse X Axis 420 mm
Maximum Traverse Z Axis 1750 mm
Rapid travel X (4 m/min) & Z (6 m/min)
Turret 8 Station Hydraulic Turret
Turret Disc Type Polygon Disc 32x32 tool shank
No of Tools 8 Station
Quill Travel 290mm
Tailstock quill Diameter 120 mm
Quill Taper MT#6
Main Spindle Motor 15 Kw
CNC Controller Fanuc Oi-TF
Machine Weight 8.2 ton
Foot Print 4700 x 2100 x 2100 mm
Equipped With
STANDARD ACCESSORIES
Fanuc Oi TF CNC Controller w/full key panel
Fanuc with Manual Guide-i function
Fanuc Spindle Motor 15kw
Fanuc X & Z Axis Servo Motor
2 sets of all steel Independent 4 Jaw Chuck
X and Z Axis auto lubrication system
Electronic Hand wheel Handheld MPG
Two Door Full Length Front & Rear Splash Guard
Spindle Oil Cooler
Electrical Cabinet Refrigerator
Flush Coolant Water System
1 x Fixed Steady Rest
Heavy Duty Manual Tailstock MT6
8 Station Hydraulic Turret
Rear Chuck Adapter
Alarm Lamp (R/Y/G)
Cabinet Light
Multi tap 3Ø transformer
Levelling bolts, foundation blocks & tool box
Fanuc Programming and Instruction Manual
Machine Operation & Parts Manual
