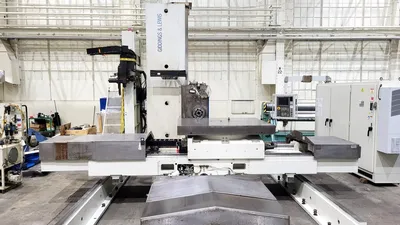

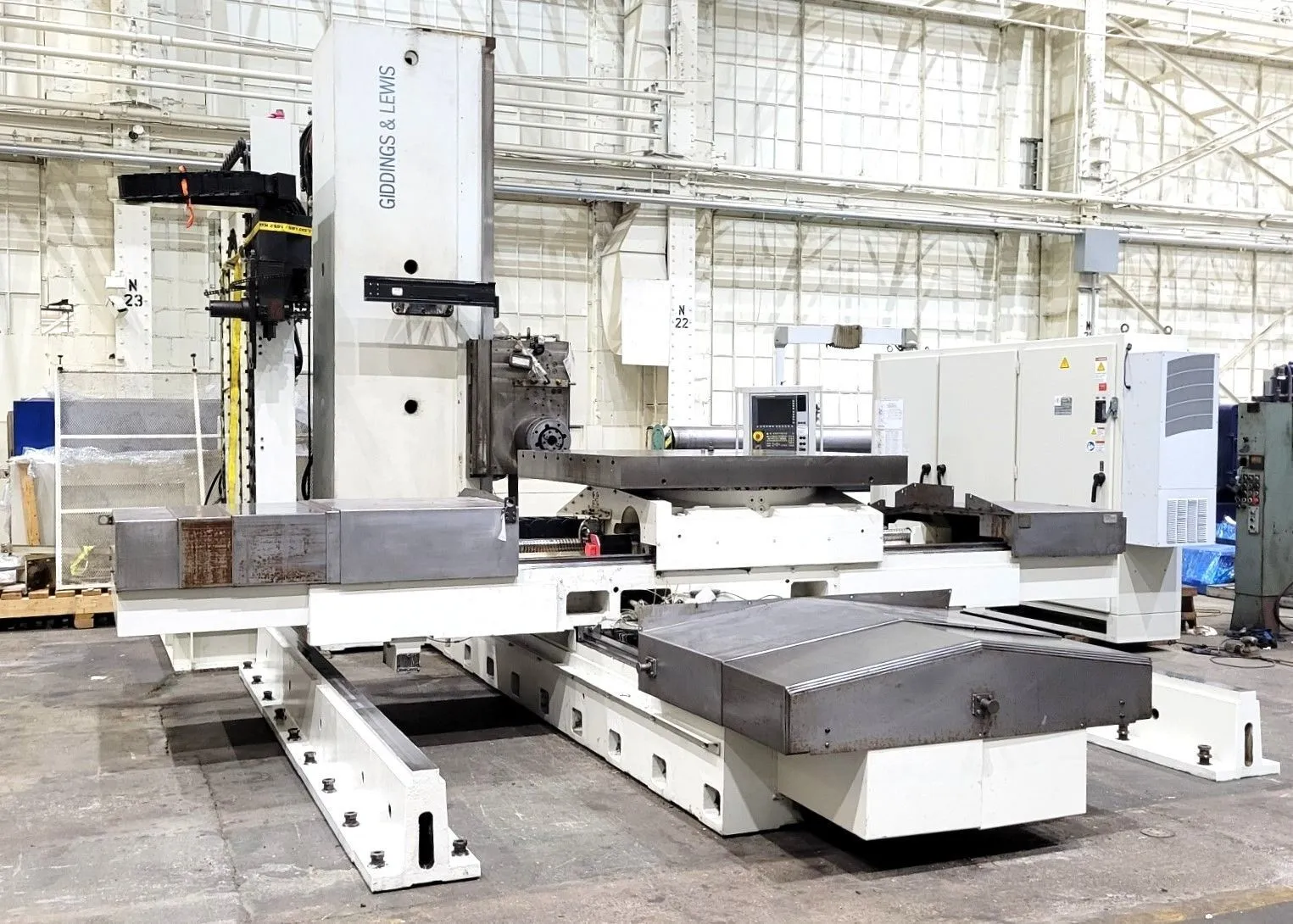

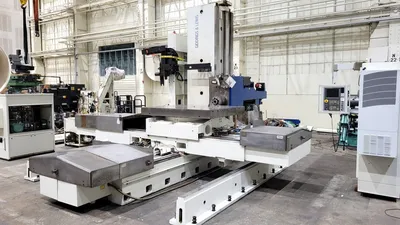

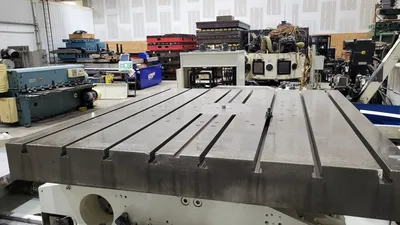

Giddings & Lewis RT1250 6.1" CNC Boring Mill (2006)
| Spindle Size | 6.1" | 154.94 mm |
| X-Horiz Tvl of Table | 141.7" | 3,599.2 mm |
| Y-Vert Tvl of Head | 141.7" | 3,599.2 mm |
| Power | 74 hp | 55.2 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| Table-W | 49.1" | 1,247.1 mm |
| Table-L | 63" | 1,600.2 mm |
| Spindle Tvl. | 49.1" | 1,247.1 mm |
Giddings & Lewis RT1250 6.1" CNC Boring Mill (2006)
Spindle Diameter 6.1"
Taper In Spindle Cat 50
Vertical Head Travel, Y-Axis 82.7"
Vertical Head Travel, Above Table 78.7"
Table Cross Travel, X-Axis 98.42"
Saddle Travel, W-Axis 59.05"
Spindle Travel, Z-Axis 49.2"
Table Size, Built-In Rotary 62.99" X 70.86"
Table Rotation, B-Axis 360,000 Positions
Table Rotation 6 Rpm
Table Load Capacity 33,100 Lbs
Spindle Speeds 1-3500 Rpm
Speed Ranges 4
Spindle Motor 50 Hp / 74 Hp
Rapid Traverse 985 Ipm
Floor Space W X D 240" X 300"
Overall Height 197"
Approximate Weight 70,000 Lbs

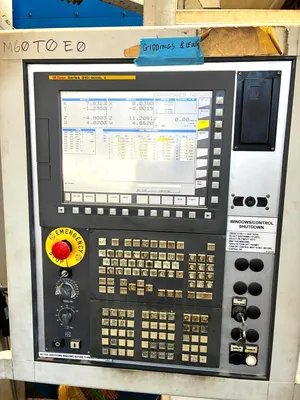

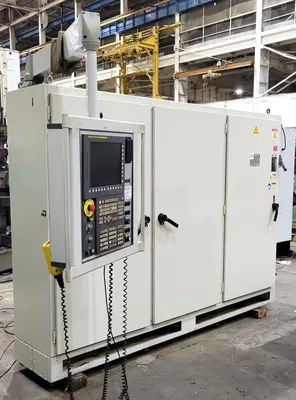

Fanuc 310i Cnc Control
Software For Ch Facing Heads & Programmable Boring Bars
60 Station Automatic Tool Changer
Coolant-Thru Spindle
Remote Pendant
Manual Cam Lock Latch Coupler For Attachments
Full Coolant & Chip Enclosure
Steel Telescoping Way Covers
Chip Conveyor
50 Hp / 74 Hp Spindle Motor
