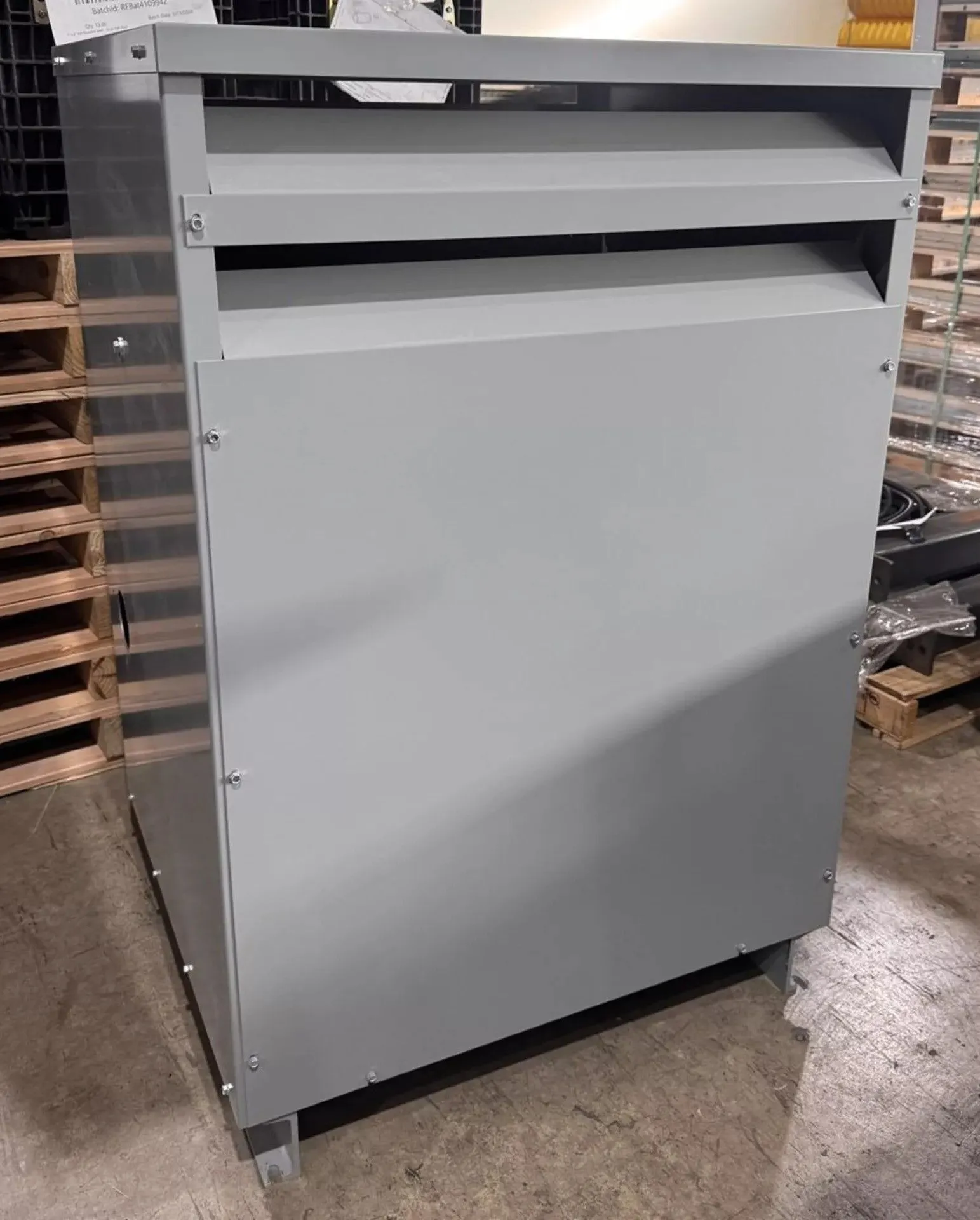

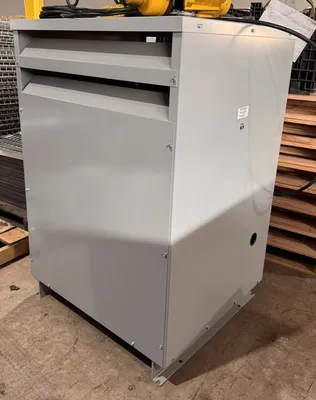

150 kVA EATON TRANSFORMER, Catalog # V29R47T4916, 3-Phase, 208D V Primary to 480Y/277 V Secondary, 60 Hz, Multi Tap, Dry Type, New 2021.
| Catalog Number | V29R47T4916 | V29R47T4916 |
| Phase - Electrical | 3 | 3 |
| Primary Input Voltage | 208 Delta VAC | 208 V |
| Secondary Output Voltage | 480Y/277 VAC | 480 V |
| VA Rating | 150 kVA | 150 kV·A |
| Multi-Tap? | Yes | Yes |
| Mounting | Floor | Floor |
| Frequency | 60 Hz | 60 Hz |
| Temp Class | 220° C | 220°C |
| Temp Rise | 150° C | 150°C |
| Enclosure Type | NEMA 2 | NEMA 2 |
| Winding Material | Aluminum | Aluminum |
| Dimensions | 35" x 32" x 51" | 35" x 32" x 51" |
| Weight | 1,400 lbs | 1,400 lbs |
