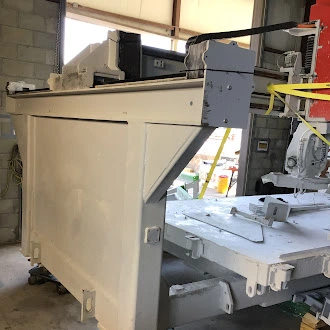

USED 2023 PARK INDUSTRIES VOYAGER X

Capacity: 0” x 0“

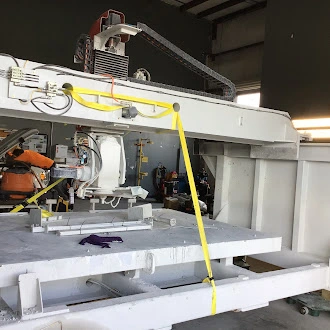

2023 Park Industries VOYAGER XP 5-axis CNC bridge saw featuring a powerful 27 HP arbor motor, automatic 0–47° mitering, milling capabilities and a hydraulic tilt table for precision fabrication of granite, quartz, quartzite, porcelain and other dimensional stone materials.
Manufacturer Park Industries
Model VOYAGER XP
Year 2023
Machine Type 5-Axis CNC Bridge Saw
Primary Application Countertop, architectural and dimensional stone fabrication
Arbor Motor 27 HP
Axis Configuration True 5-axis CNC operation
Blade Capacity 14″, 16″ or 18″ diameter
Blade Speed Variable-frequency drive; approximately 1,000–6,000 RPM
Automatic Mitering 0–47°
Maximum Cutting Depth Approximately 4.5″ with applicable blade
Maximum Slab Capacity Approximately 144″ × 84″
Table Hydraulic tilt table
Table Surface Lightweight concrete cutting surface

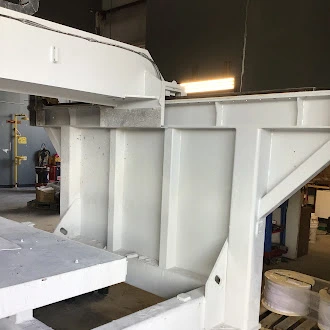

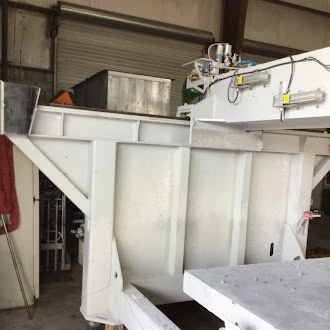

Machine Design Monoblock construction

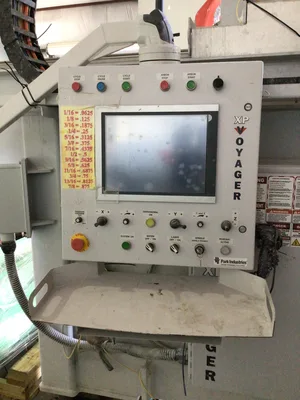

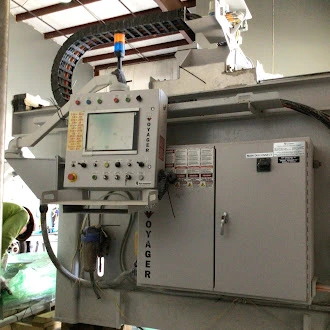

Control Modes Automatic CNC and manual operation
Milling Capability Tool-bit attachment for routing, coring and profiling
Cutting Functions Straight cutting, mitering, contour cutting, step cutting and incremental routing
Additional Functions Coring, gauging, straight-line profiling and coping
TightCut Capability Blade-plunge functionality for tighter part nesting
Compatible Materials Granite, marble, engineered stone, quartz, quartzite, porcelain and ultra-compact materials
Approximate Footprint 26′ L × 21′ 6″ W × 10′ H, including recommended clearance
Approximate Machine Weight Up to 14,500 lb., depending on configuration
