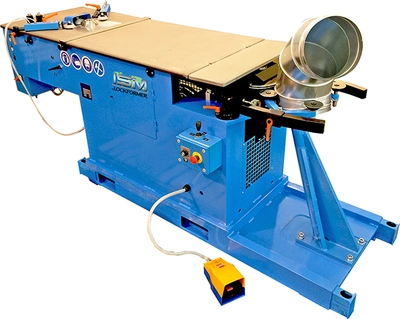

ISM GORE-MAX 1.5 Plus Gorelocker Fitting Machine

ISM's Gorelocker fitting machine, the Gore-Max 1.5 Plus produces fabricated fittings and fittings production. The Gore-Max 1.5 Plus is your quality, efficient and cost-effective solution to the production of welded elbows, reducers, end caps and off-sets. ISM's easy-to-operate Gore-Max 1.5 Plus provides you the power to fabricate hundreds of fittings in-house each day.
Two machines are combined into one with the Gore-Max 1.5 Plus, offering a Flanger/Swager that will flange one side of a cylindrical gore while swaging the connecting side of the next gore with the simple flip of a switch. At the opposite end, a lockseamer finalizes the operation by closing the seam into a standing rib. Operations are conducted simultaneously, increasing productivity.
The Gorelocker Gore-Max 1.5 Plus handles a variety of materials and gauges to produce standing rib diameters from 5” to 50”. Producing these airtight seals eliminates the need for painting, coating or sealing. The Gore-Max 1.5 Plus uses minimal power and floor space, and functions without slag, heat, noise, water or spark production, keeping your environment productive, safe and clean.
