Norlok Letterlok 3000 (Return Fastener)
Overview

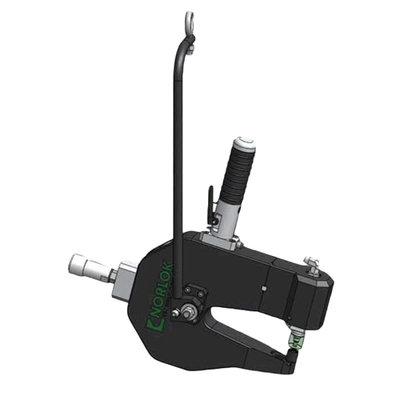

The LETTERLOK 3000 is designed to fasten the open end of the channel letter returns. This versatile tool eliminates drilling and pop riveting open letter returns and letter centers. It can produce a UL recognized fastener in just two pieces of aluminum.
Specs
Press Design: Single steel “C” frame
Stroke: 1/4”
Throat: 3 1/4” or 4 1/2"
Upper Tooling: Fast change punch. Replaceable punch stripper
Lower Tooling: MDWA insert style. Adjustable to suit material thickness.
Capacity: MEDIUM DUTY (0.18ӯ PUNCH)
Aluminum: MAX: Combined thickness of 0.125” MIN: Two ply 0.024”
Cycle speed: 30 – 40 CPM (standard speed)
Air Requirements: 65 psi (min) 85 psi (max) 75 psi (recommended) Approx. 0.8 cu ft free air per cycle. (5 HP @ 40 clinches per minute)
Dimensions: Width 2-1/4" (overall) Length 12 1/8" (overall) Height 8 1/4" (overall)
Weight: 15 lbs Workhead 45 lbs Booster
