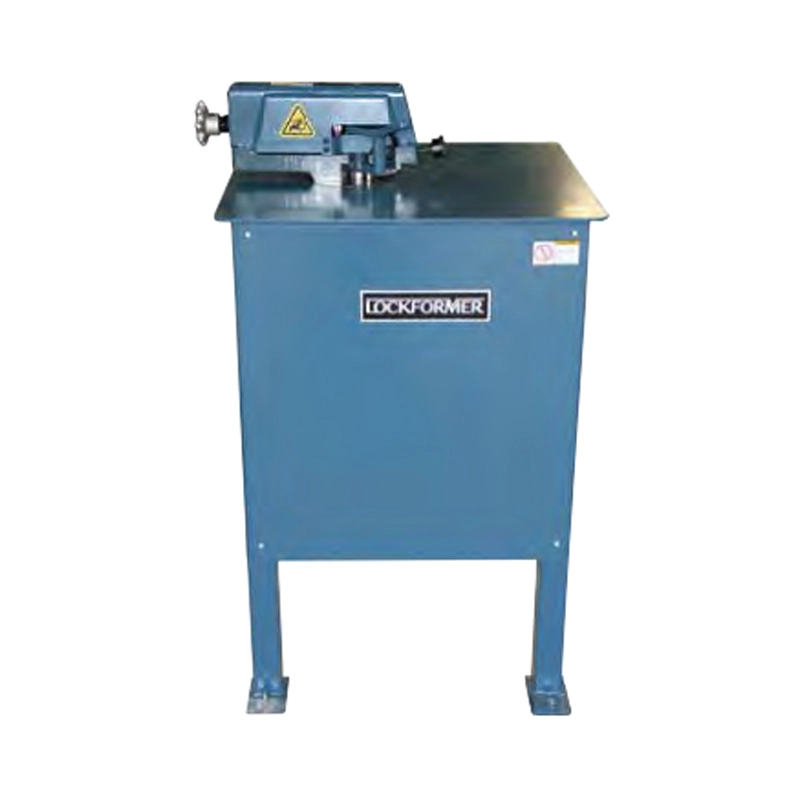

These ductwork prep machines automatically follow any edge – curved or straight.
Use the convenient table slot to turn up a "starting flange" and let it go! A calibrated dial can be set for radii as small as 3-1/4" (or 2"when auto-guide is deactivated). Automatically flange 16 to 26 gauge material at speeds of 18 fpm. A non-releasing type head is suitable for open-end fittings, straight and irregular curves.
Standard with Lockformer quality construction, this machine has an industrial electric motor, and an arc-welded steel stand protected with Lockformer’s top-quality primer and paint finish.
Capacity: 16 gauge maximum Working range 16-24
Depth Of Pocket/Size: 2 flange heights available,3/8" or 1/4"
Speed: 18 feet per minute
Motor/voltage: 3/4 H. P. 115/230 volts, 60 cycle, single phase, A. C. 1,800 RPM
Dimensions: Length - 24", Width - 24", Passline - 34"
Weight: 300 lbs
