USED 2009 HAAS SL-20T
Overview
Description

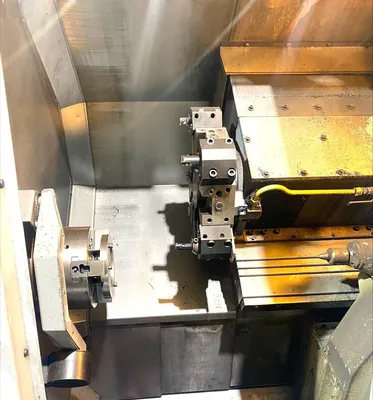

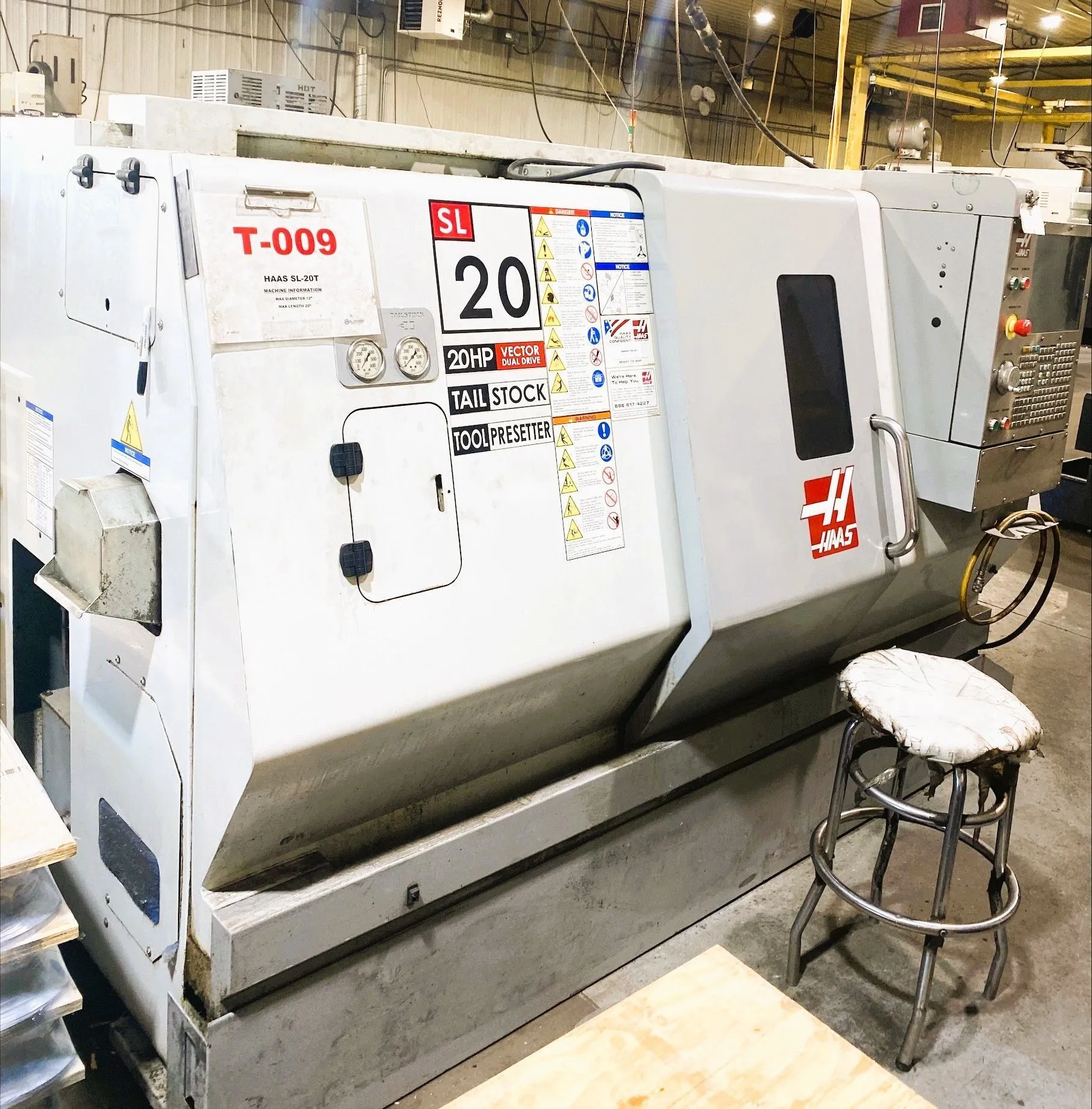

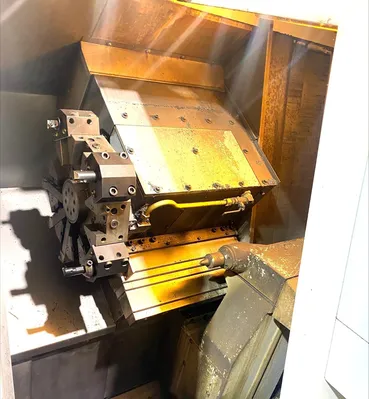

Low Hours, 8" Chuck, Tailstock, Tool Presetter, Chip Auger. This 2009 Haas SL-20 cnc 2-axis lathe is in plant, under power, and available for immediate inspection and purchase. Machine is in plant, under power, and ready for immediate inspection.
Specifications
| MAX SWING | 23" | 584.2 mm |
|---|---|---|
| MAX CUTTING DIAMETER | 10.3" | 261.62 mm |
| MAX CUTTING LENGTH | 20" | 508 mm |
| X-AXIS TRAVEL | 8.45" | 214.63 mm |
| Z-AXIS TRAVEL | 20" | 508 mm |
| CHUCK SIZE | 8" | 203.2 mm |
| BAR CAPACITY | 2" | 50.8 mm |
| SPINDLE BORE | 3" | 76.2 mm |
| SPINDLE NOSE | A2-6 | A2-6 |
| SPINDLE MOTOR | 20 hp | 14.9 kW |
| SPINDLE SPEED | 4,000 RPM | 4,000 RPM |
| TURRET POSITIONS | 10 | 10 |
Equipped With
8", 3-JAW HYDRAULIC CHUCK
HYDRAULIC TAILSTOCK
MANUAL TOOL PRESETTER
CHIP AUGER
WORKLIGHT
RIGID TAPPING
BARFEED INTERFACE
QUICK CODE
USB PORT

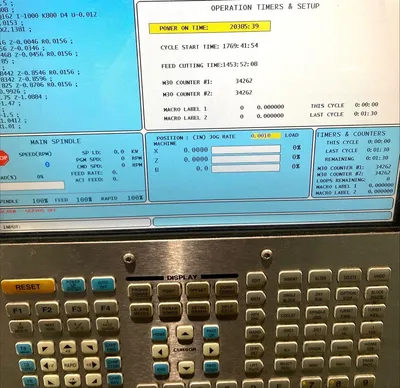

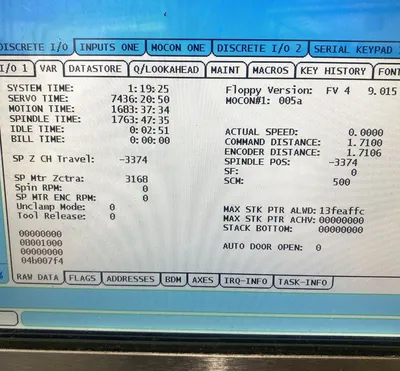

** AS OF JUNE, 2026 - SPINDLE TIME: 1,763 HOURS
** MACHINE CUTTING PRIMARILY CARBON, ALLOY STEEL & DUCTILE IRON
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
