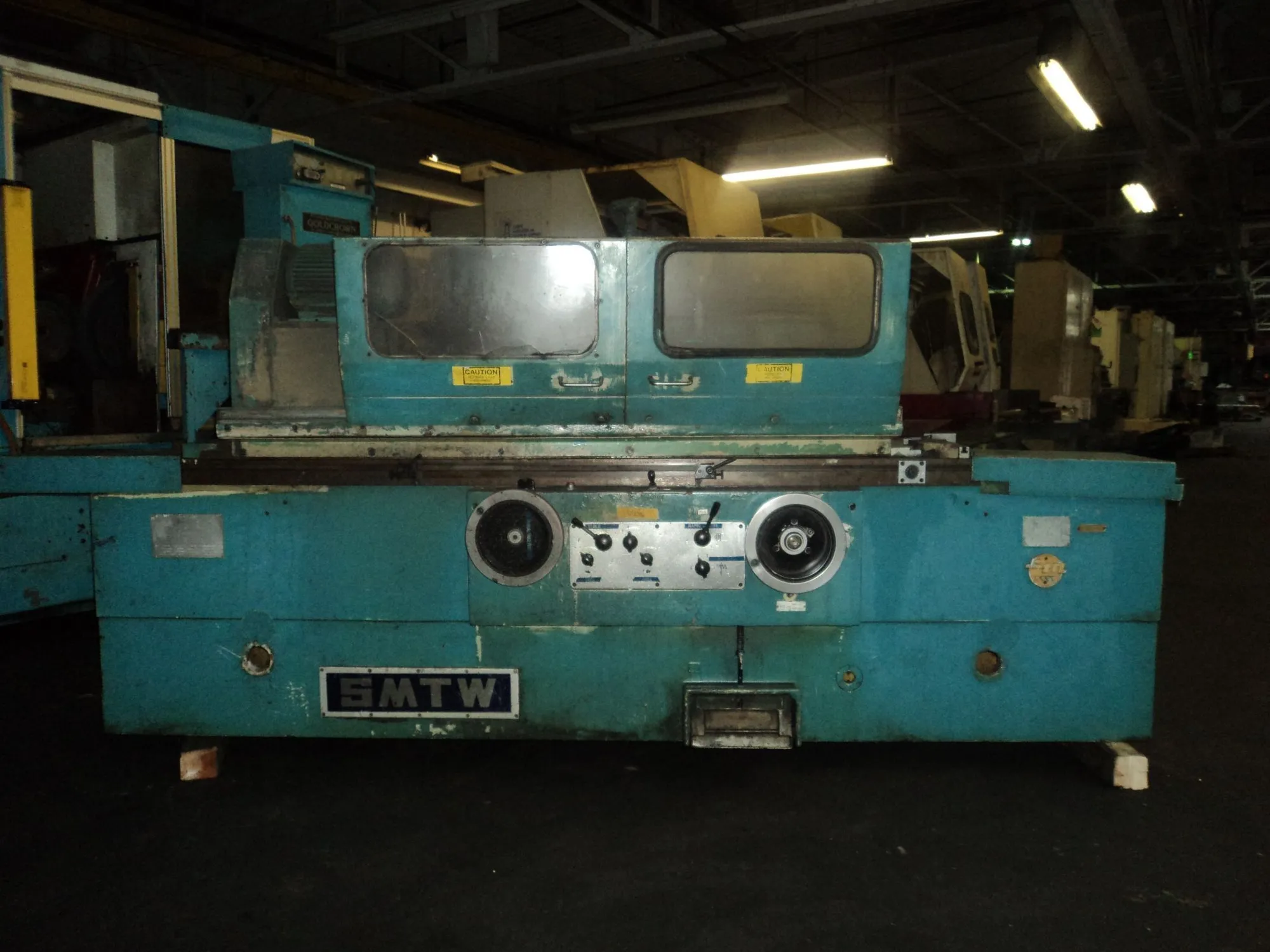

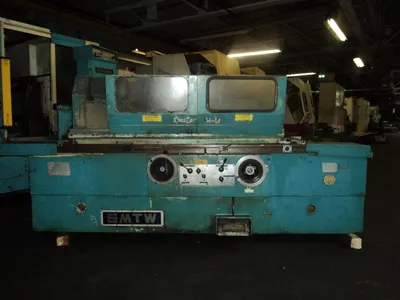

USED 1978 SMTW 14x40 / 1000

SMTW 14x40/1000 cylindrical grinder, 1978. Features 14" swing, 40" centers, plain head, 23.62" grinding wheel diameter, 14.74 HP, 1100 RPM speed, equipped with dresser. Ideal for precision grinding needs.

SMTW PLAIN CYLNIDRICAL GRINDER
Model M1332B/1000

S/N M1332B

STANDARD SPECIFICATIONS
Swing over table……………………………………………………... 14”
Distance between centers…………………………………………….. 40”
Grinding diameter - with steady rest – min./max……………….…… 0.393” – 2.3622”
- without steady rest – min./max……………….... 0.31496”-12.598”
Max. upper work table swing angle clockwise………………………. 3°
Max. longitudinal work table travel………………………………….. 41.3385”
Wheel dimensions OD x W x ID – max……………………………… 600 x 75 x 305mm
- worn……………………………… 450 x 75 x 305mm
Wheel peripheral speed……………………………………………….. 35 m/s
Wheel spindle speed………………………………………………….. 1100 r/min
Max. lead screw travel………………………………………………… 231mm
Rapid advance and withdrawal amount……………………………….. 50mm
Wheel head displacement per rev. of hand wheel coarse/fine………… 2/0.5mm
Wheel head displacement per div. of hand wheel coarse/fine………… 0.01/0.0025mm
Total motor power…………………………………………………….. 11 kilowatts
Tail stock dresser.
Dead center head stock.
Auto feed.

Specifications are deemed accurate, however, subject to verification or prior sale.
