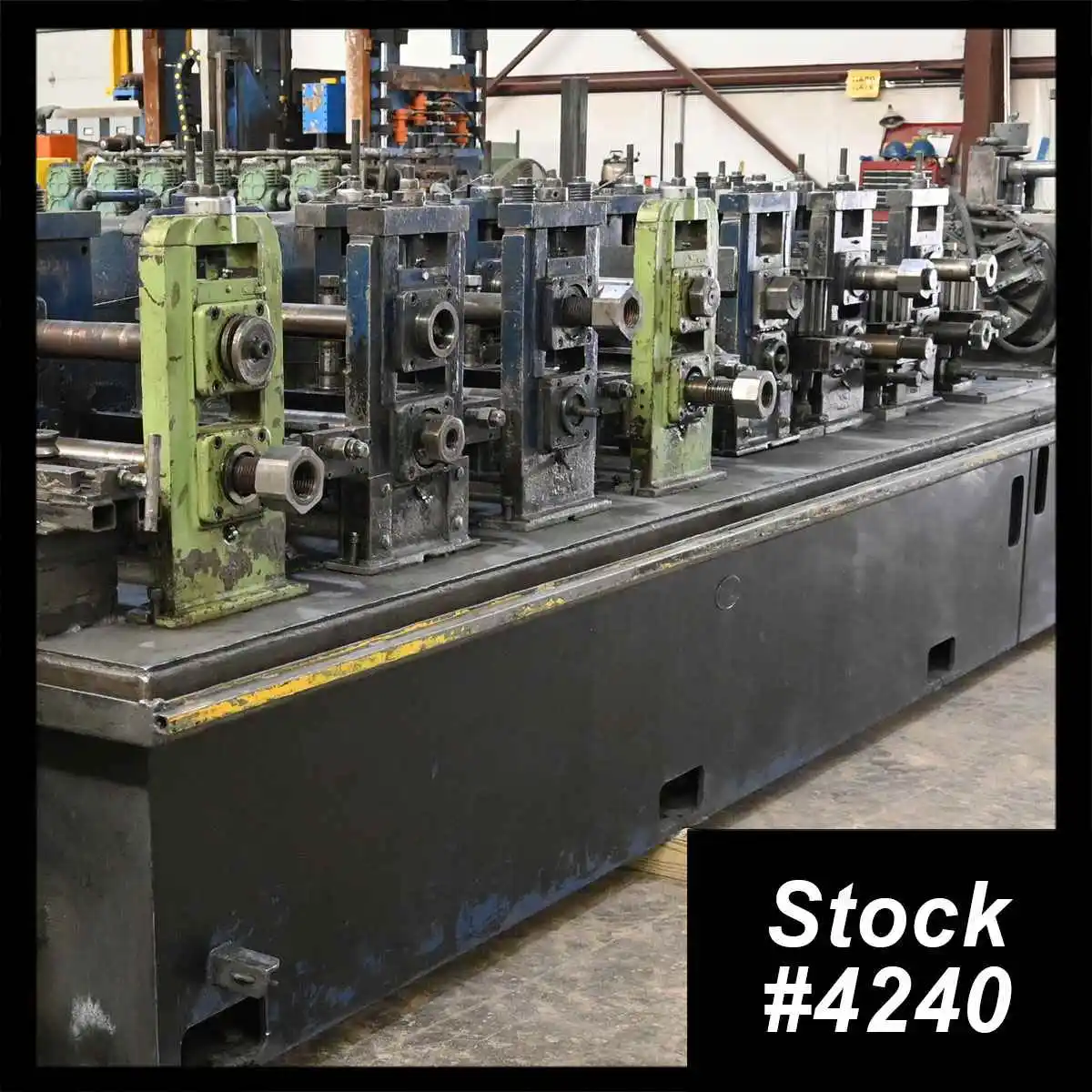

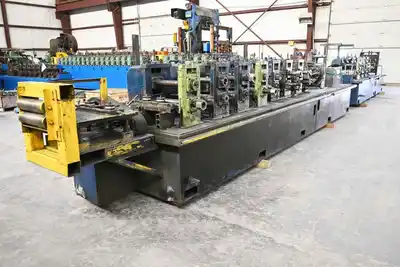

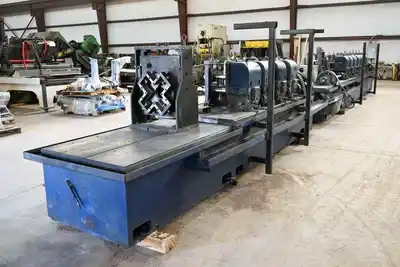

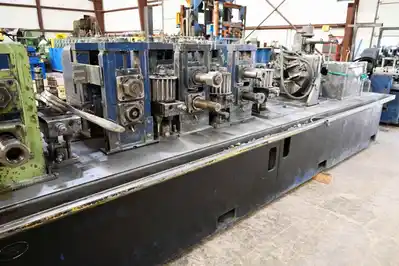

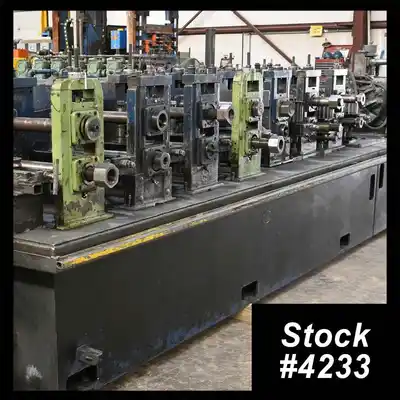

USED YODER M2-1/2

SPECIFICATIONS:
Maximum Tube Diameter: 3″ (76.2 mm)
Minimum Tube Diameter: .500″ (12.7 mm)
Maximum Wall Thickness: .134″ (3.4 mm)
Minimum Wall Thickness: .028″ (0.7 mm)
Maximum D/T Ratio: 60:1
Minimum D/T Ratio: 10:1
Maximum Material Yield: 50,000 PSI
Maximum Mill Speed: 300 FPM Max. Gear In Speed, No Load
Driven Spindle Diameter: 2.5″ (63.5 mm)
Hand of Operation: Left to Right
FORMING MILL:
Entry Guide Unit
(4) Driven Breakdown Stands
(7) Idle Side Roll Units
(3) Driven Fin Stands
WELDING SECTION:
Guide Roll Unit
3-Roll Weld Pressure Unit

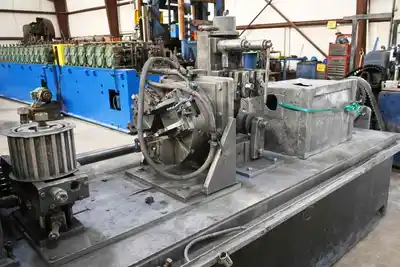

Rotary Scarfing Unit
SIZING MILL:
(4) Driven Sizing Stands
(4) Idle Side Roll Units
Double Sided 4-Roll Turkshead
SPARE PARTS:
Crate of new spindles, gearbox bearings, and more.
LOCATION: Universal Warehouse, Perrysburg, Ohio
