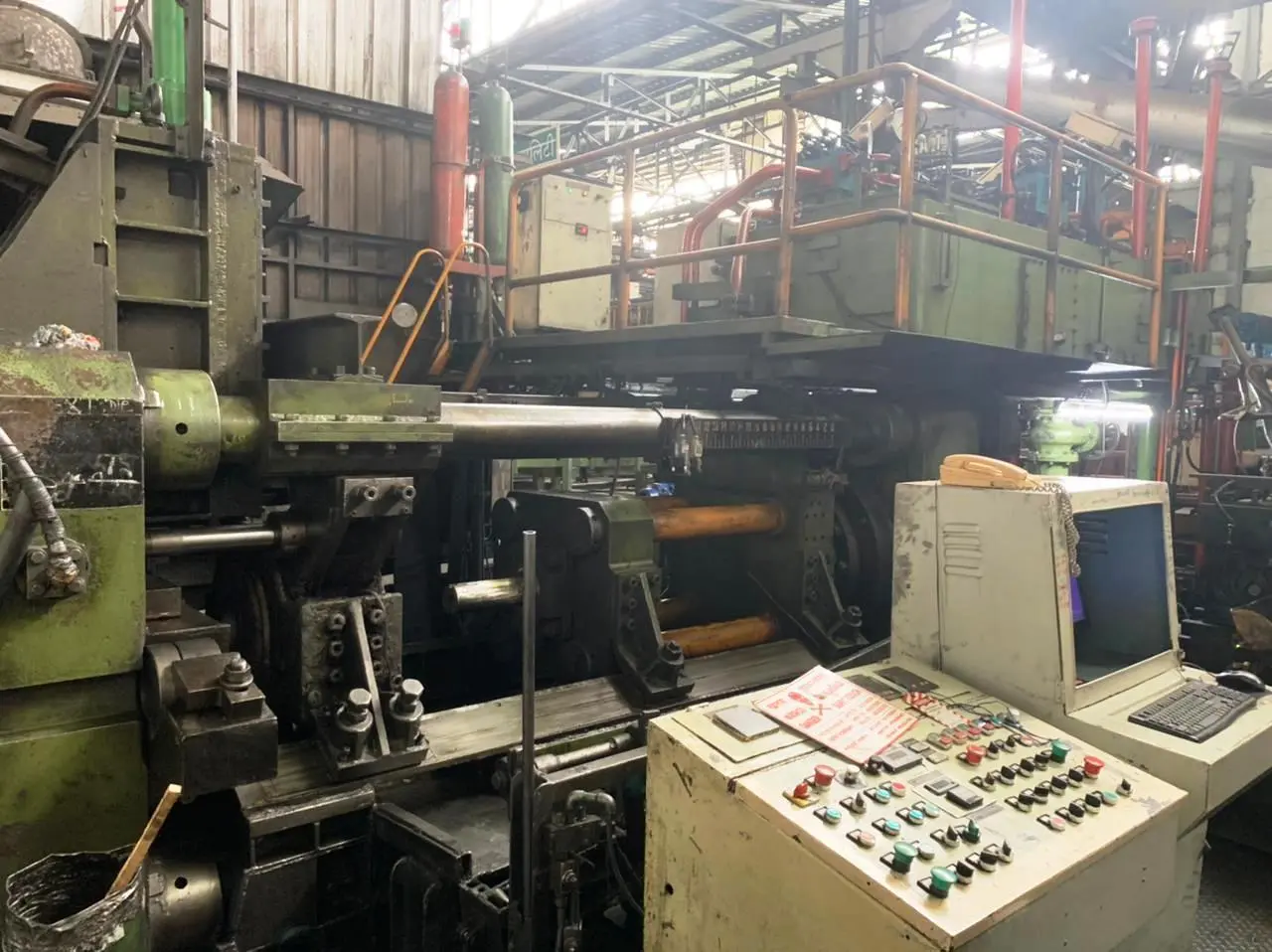

USED 1978 INDIAN MADE 750 TON

FOR SALE: 750 USton (680 mton) Aluminum Extrusion Line

Manufacture
- Indian made
- New 1978
- Status: complete plant on foundation, under power, running 3 shifts 10-15 days per month

SPECS:
Total Force of Press
- 750 US tons
- 680 mtons
- Extrusion Pressure - 210 Bar

Billet Size
- Diameter = 121 mm / 4.75"
- Length = Min: 203 mm / 8". Max: 420mm / 16.5"
- Weight per Inch of Billet = 0.76 kg/inch

Container Diameter & Area
- 128 mm (12,873 square mm)
- Dummy Block Diameter = 127 mm
- Container length = 410 mm

Maximum Ram Speed
- 30mm/sec

Maximum Runout Length
- 33.8 Meters / 111 ft

Dead Cycle Time
- 14 Seconds

Tool Stack
- 250 mm diam x 250 mm long
- Die Sizes = 175 mm diam

Unit Pressure
- 52.82 kg per square mm

Stem Diameter
- 122 mm diam

HLS Bore
- 124 mm diam

Sealing Pressure & Force
- 180 bar / 57 mtons

Main Pump Detail
- 1 x 500 liters/min

Motor Detail
- 1 x Rexroth, 160kW, 1000 rpm

Main Ram
- Diameter = 609.6 mm
- Stroke = 970 mm
- Tonnage = 640 mtons

Side Cylinder tonnage
- 90 mtons

Tables
- Initial Lead-out = 10 ft
- Cooling Beds = 117 ft long x 20 ft wide

PLC
- Press, Puller, Stretcher, and Finish Saw = Siemens S7-1200 (new in 2005)
- Puller drive = drive ABB DCS 800
- Cold saw = Siemens S7-200
- Electrics and controls complete and running

EQUIPMENT
- log heating furnace
- hot shear
- complete press
- overhead single puller
- underbed cooling system
- runout cooling bed
- belt conveyor
- stretcher
- finish saw (including infeed & outfeed roller conveyor table + gauge stopper)
- conveyor moving sawn profiles to final packaging area
- die oven

Sold "as is, where is" EXW installed plant foundation.

It is a complete plant on the foundation, on power with all electrical and in running condition. The reason for selling this plant is we want to use this space for some other work.
