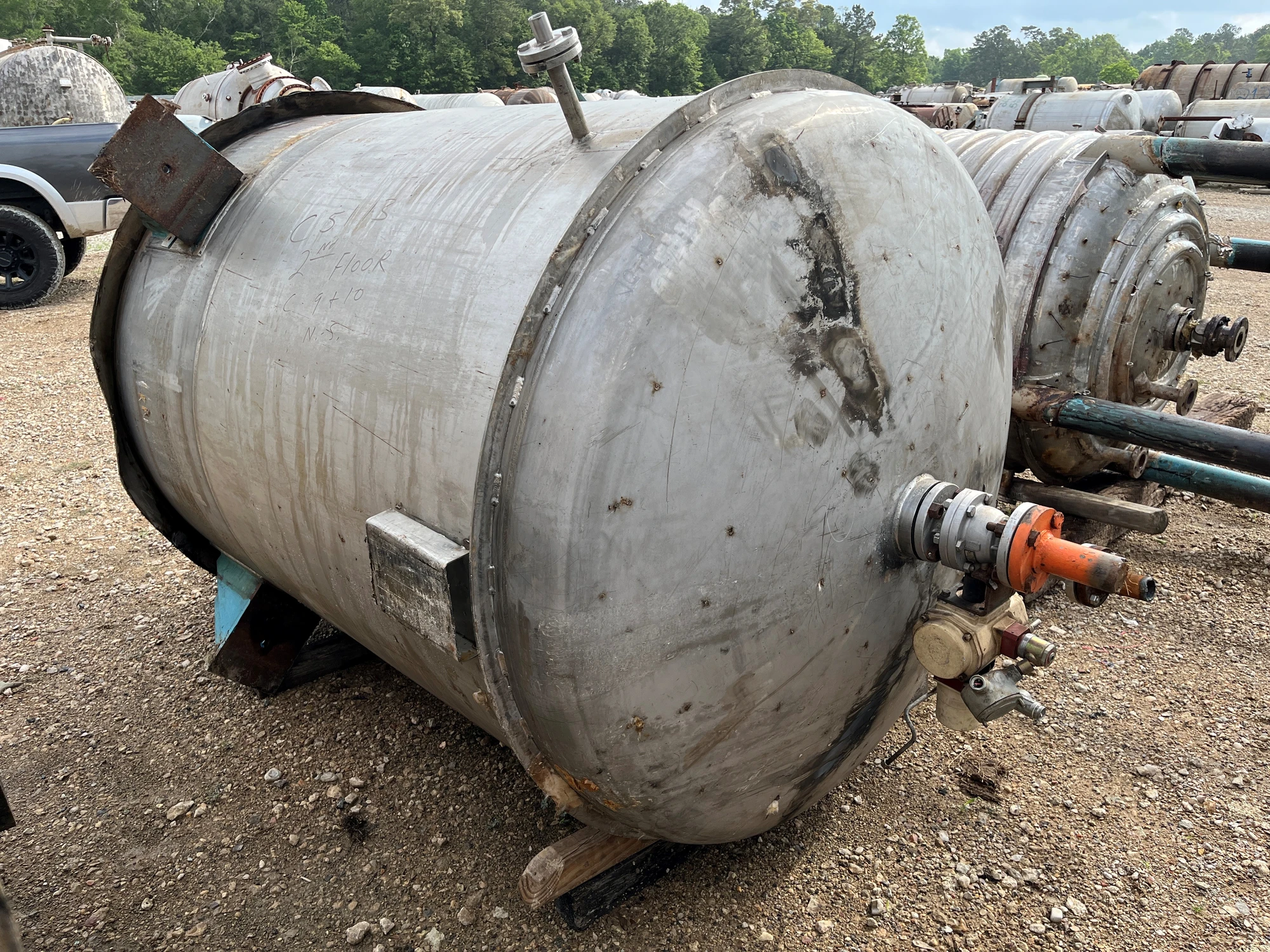

Used Approximately 1,000 Gallons Stainless Steel Reactor with Coils
Manufacturer: Alloy Fabricators
Capacity: 1,000 gallons
Serial: 1-142A
Year: 1991
Internal pressure: 33 psi @ 335°F
Coil pressure: 85 psi @ 335°F
Agitator: 1 hp, 0 - 60 rpm, Axial type, 304 SS; Single hub with 4 blades, 26 1/2" dia; 18" dia. 2 blade radial flow at bottom; Pro Quip model #100JLU30
Material of construction: 304 stainless steel
Dimensions: 5' dia. X 6' straight side
Dished top, dished bottom
4 side wall baffles
Lug mounted
| Capacity | 1,000 gal | 3,785.4 L |
| Type of stainless | 304 | 304 |
| Internal Pressure | 33 PSI | 2.3 bar |
| Internal Temperature | 335°F | 168.3°C |
| Jacket Pressure | 85 PSI | 5.9 bar |
| Diameter | 5" | 127 mm |
| Straight Side | 72" | 1,828.8 mm |
| Type Of Heads | Dished | Dished |
| Legs/Lugs | Lug mounted | Lug mounted |
| Dimensions | 5' dia. X 6' straight side | 5' dia. X 6' straight side |
