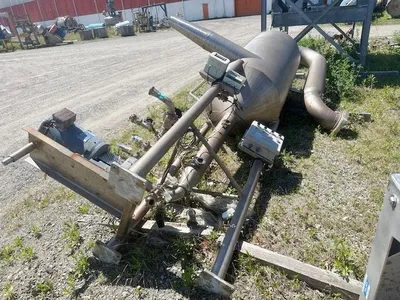

USED API SCHMIDT-BRETTEN Evaporation System

Used Stainless Steel API Schmidt-Bretten Plate Evaporator System

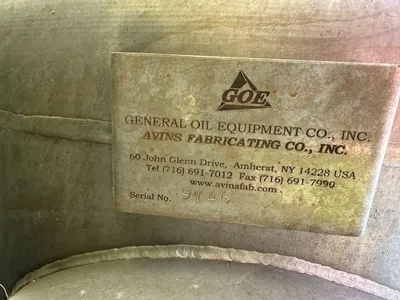

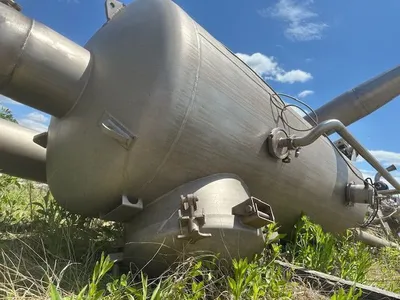

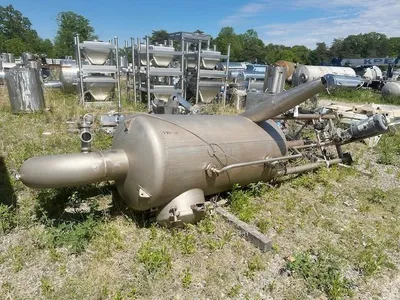

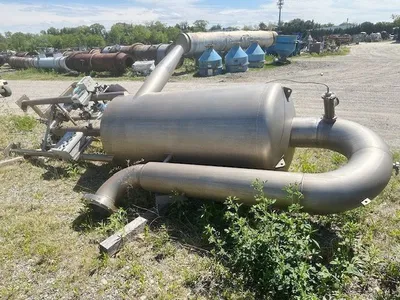

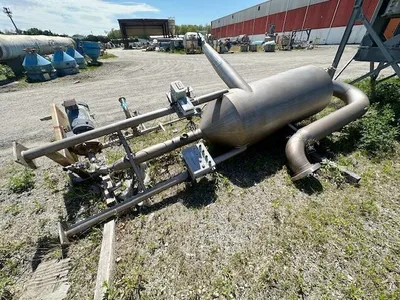

Separator vessel
(3) Heat Exchangers - Schmidt
Vacuum Pump
(2) centrifugal pumps

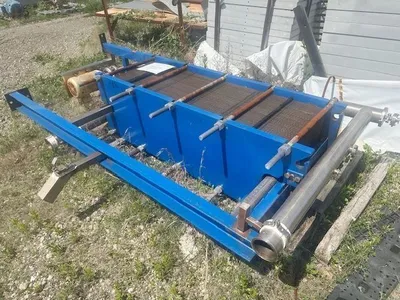

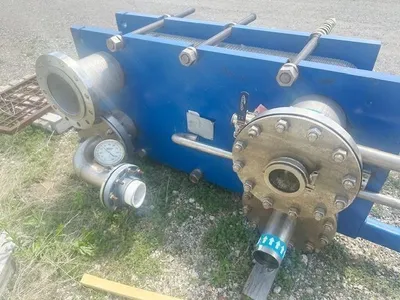

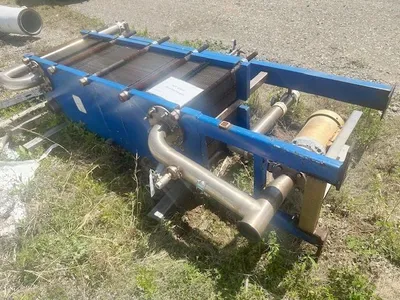

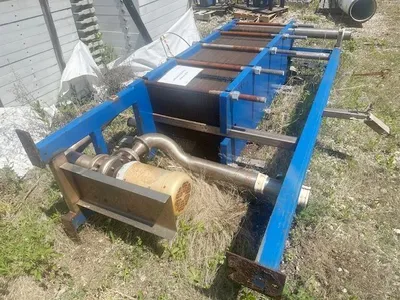

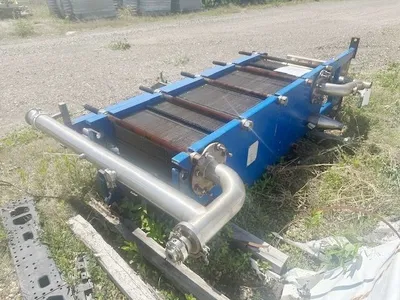

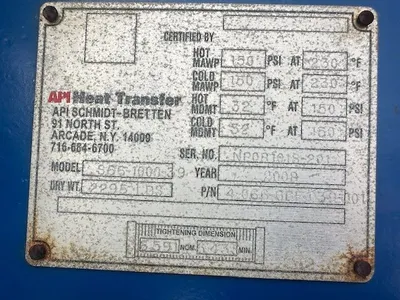

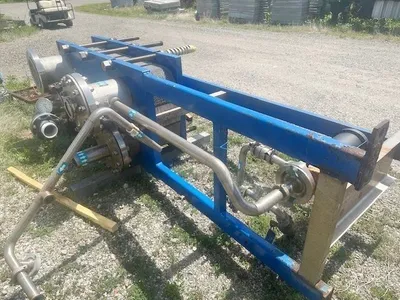

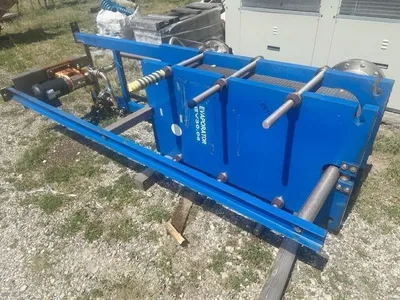

Unit #1: Plate Heat Exchanger – API Heat Transfer Model 866-1000-39
Serial Number: NP081018-201
Year: 2008
Part Number: 4-006-GBF-039-001
Dry Weight: 2,295 lbs (≈1,041 kg)
Hot MAWP: 150 psi @ 230 °F (≈10.3 bar @ 110 °C)
Cold MAWP: 150 psi @ 230 °F (≈10.3 bar @ 110 °C)
Hot MDMT: 32 °F @ 150 psi (≈0 °C @ 10.3 bar)
Cold MDMT: 32 °F @ 150 psi (≈0 °C @ 10.3 bar)
Tightening Dimensions: 6,591 mm nominal, 6,435 mm minimum

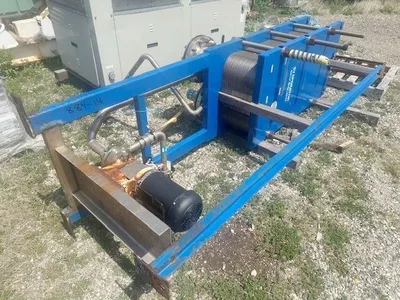

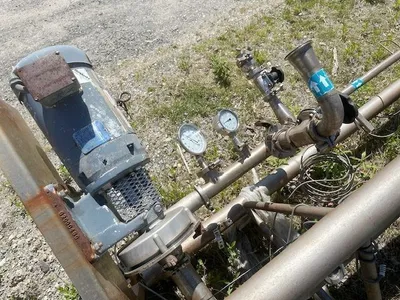

Pump: Centrifugal, WEG Model 00236ET3E145T-S, 2 kW (≈2.7 HP), 60 Hz, 230/460 V, 3,520 rpm, 4.94/2.47 A

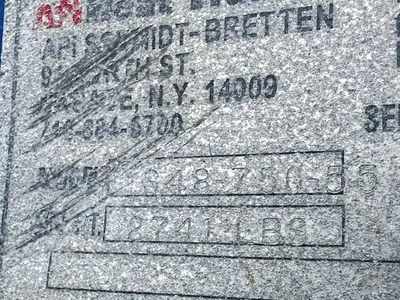

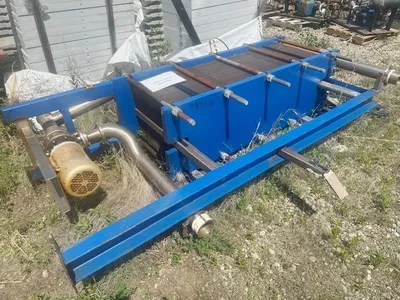

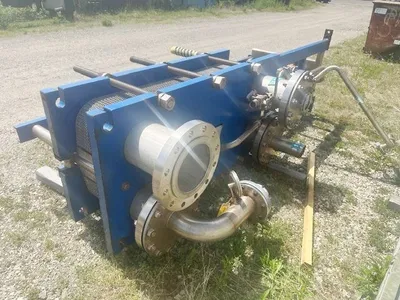

Unit #2: Plate Heat Exchanger – API Heat Transfer Model 848-750-55
Serial Number: NP081018-10
Year: 2008
Part Number: 2-048-GBF-055-001
Dry Weight: 2,741 lbs (≈1,243 kg)
Hot MAWP: 150 psi @ 230 °F (≈10.3 bar @ 110 °C)
Cold MAWP: 150 psi @ 230 °F (≈10.3 bar @ 110 °C)
Hot MDMT: 32 °F @ 150 psi (≈0 °C @ 10.3 bar)
Cold MDMT: 32 °F @ 150 psi (≈0 °C @ 10.3 bar)
Pump: Centrifugal, WEG Model 00236ET3E145T-S, 2 kW (≈2.7 HP), 60 Hz, 230/460 V, 3,520 rpm, 4.94/2.47 A

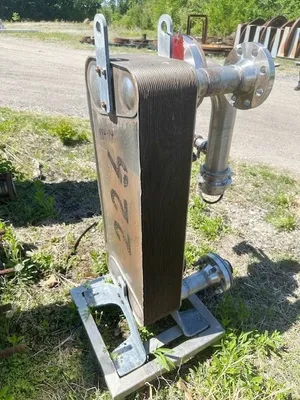

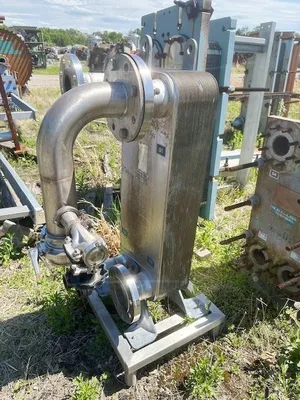

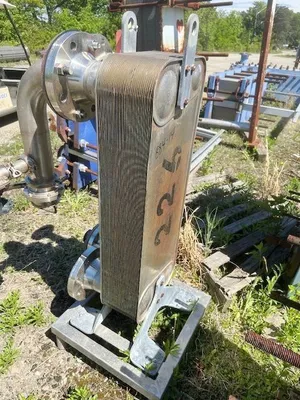

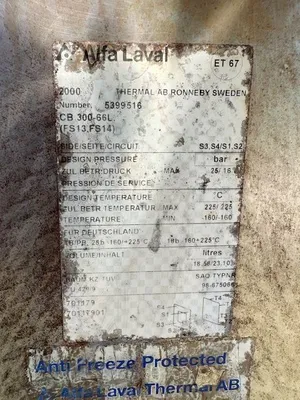

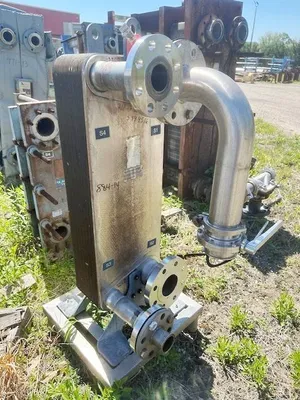

Unit #3: Plate Heat Exchanger – Alfa Laval CB 300-66L
Serial Number: 5399516
Pressure Rating: 25 bar / 16 bar (≈363 psi / 232 psi)
Temperature Rating: Max 225 °C (≈437 °F), Min -160 °C (≈-256 °F)
Volume: 18.56 L / 23.1 L (≈4.9 gal / 6.1 gal)
