USED YAMATO ADL311S-A SPRAY DRYER + GAS410 SOLVENT R

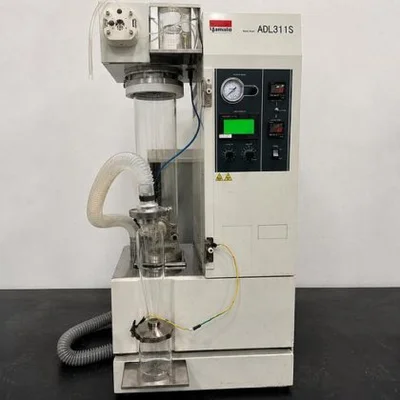

The Yamato ADL311S Spray Dryer with GAS410 is a compact laboratory spray drying system designed to convert liquid samples into fine, dry powders with controlled particle size.

The ADL311S unit handles both aqueous and organic solvent samples, while the GAS410 solvent recovery unit enables safe processing of flammable or toxic solvents using a closed-loop nitrogen (N₂) system, preventing environmental release and improving safety.

This combination is widely used in pharmaceutical R&D, food science, and material research for producing uniform micro-particles with minimal degradation.
---------------------------------------------------------------

Key Highlights

- Compact and lab-scale spray dryer
- Converts liquids directly into fine powder (no pre/post processing)
- Supports organic solvents (with GAS410)
- Closed-loop N₂ inert gas system for explosion safety
- Integrated solvent recovery (condenser + freezer system)
- Suitable for heat-sensitive materials
- High recovery efficiency and minimal contamination
- Built-in compressor (via GAS410, no external compressor needed)
---------------------------------------------------------------

Applications / Uses

- Pharmaceutical (API drying, drug formulation)
- Food industry (flavors, milk powder, additives)
- Chemical & material science (nanoparticles, polymers)
- Biotechnology (enzymes, biomolecules)
- Battery & advanced materials research
---------------------------------------------------------------

Typical Specifications (Summary)

(combined system – may vary)

Spray Dryer (ADL311S-A)

- Evaporation Capacity: ~1300 mL/h
- Inlet Temp Range: ~40°C – 220°C
- Outlet Temp Range: ~0°C – 60°C
- Airflow: up to ~0.7 m³/min
- Feed Rate: 0–26 mL/min
- Dimensions: 580 × 420 × 1125 mm
- Weight: ~80 kg

GAS410 Solvent Recovery Unit

- System Type: Condenser + refrigeration recovery
- Gas: Nitrogen closed-loop system
- Flow Rate: ~0.12 – 0.65 m³/min
- Recovery Flask: ~2L
- Cooling System: 400W refrigeration condenser
- Safety: Oxygen monitoring + sealed circulation
---------------------------------------------------------------

Typical Configuration Includes

- ADL311S Spray Dryer main unit
- Glass drying chamber & cyclone
- Peristaltic feed pump
- GAS410 solvent recovery system
- Nitrogen circulation system
- Tubing and connectors
- Control interface
