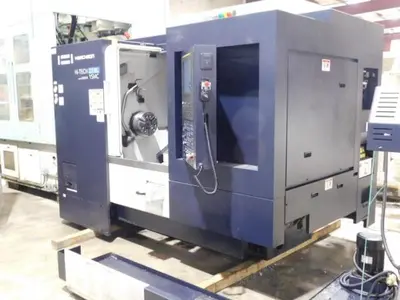

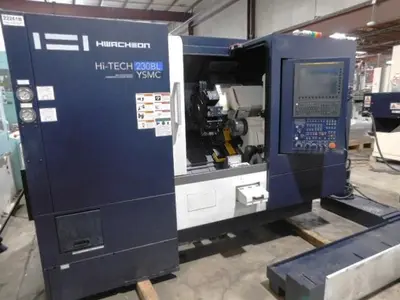

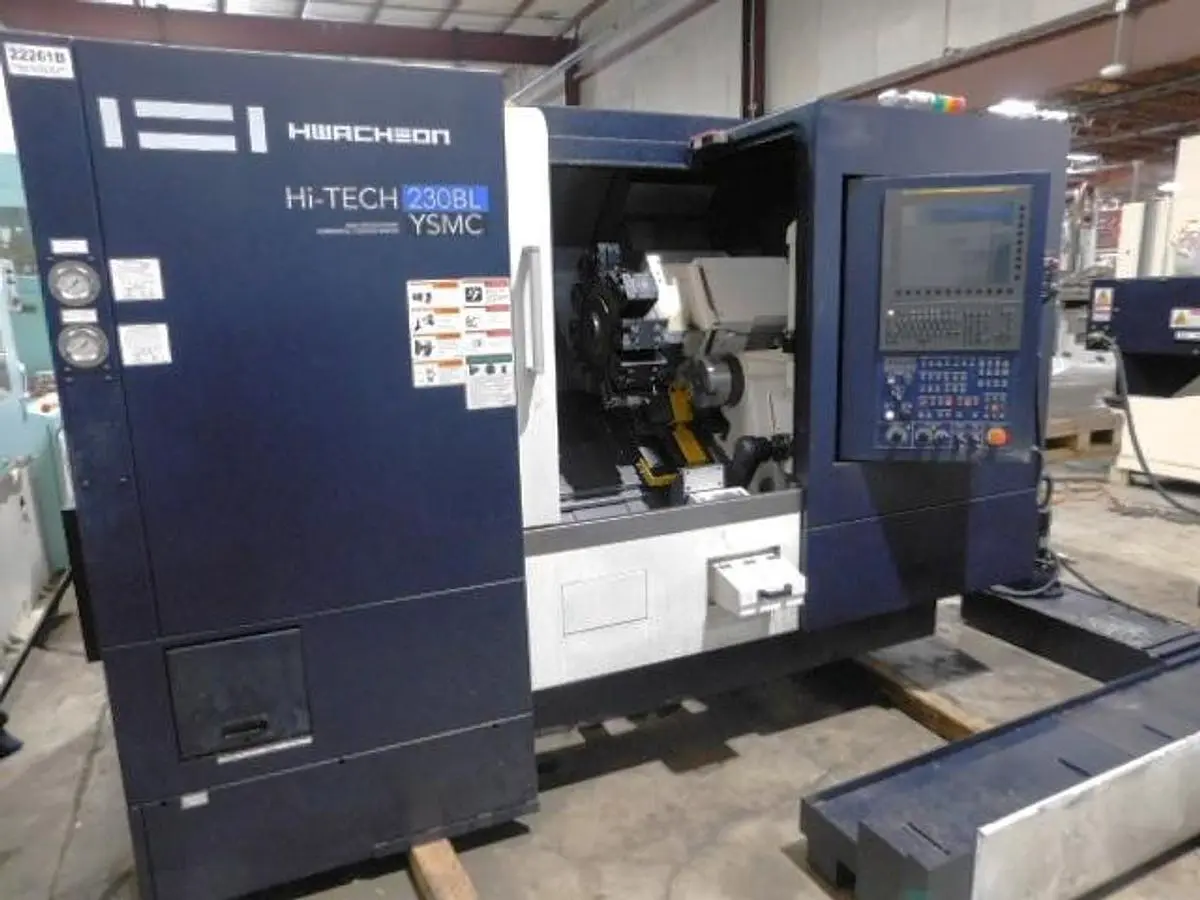

USED 2021 HWACHEON HI-TECH 230BL YSMC

Used CNC Lathe with Fanuc Oi-TF control. Features: subspindle, live milling, 10" & 5" hydraulic chucks, automatic tool eye, and chip conveyor. Max speed 3,500 RPM.

Chuck Sizes 10" Hydraulic Chuck on Main Spindle/5" Hyd on Subspindle
Maximum Swing/Over Carriage 29.55" / 15.76"
Maximum Cutting Diameter 15.76"
Maximum Cutting Length 20.93"
X-Axis Travel 9.456"
Y-Axis Travel +/- 2.36"
Z-Axis Travel 27.56"
C1 Axis Spindle Rotation/C2 Axis Spindle Rotation .001 / .001 Degree
B-Axis Travel (Subspindle) 25.216"
Spindle Nose / Spindle Bore / Bar Capacity A2-8" / 3.58" / 3.19"
Spindle Speed / Sub Spindle Speed 3,500 RPM / 5,000 RPM
Spindle Motor / Sub Spindle Motor 22 HP / 10 HP
Rotary Tool Speed / Rotary Motor 5,000 RPM / 7.4 HP
Number of Turret Positions 12 Sided / 24 Stations
Rapid Traverse Rates X, B / Z 1182 IPM, 945 IPM / 1182 IPM
Machine Dimensions 124" x 76" x 83" approx.
Machine Weight 14,960 lbs. approx.

Control Fanuc Oi-TF Series Control
Y Axis Capability (Off Center)
Subspindle
Full C Axis Spindle Rotation Both Spindles
Live Milling / Drilling Capability
10" 3 Jaw Hydraulic Chuck on Main Spindle
5" 3 Jaw Hydraulic Chuck on Subspindle
Automatic Tool Eye
Chip Conveyor
Parts Catcher

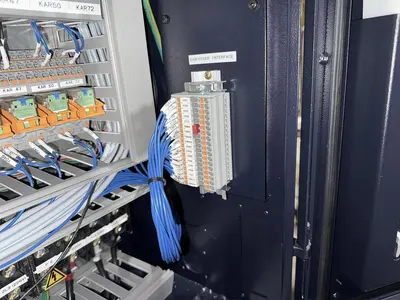

Barfeed Interface ONLY
Rigid Boxed Way Design
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
