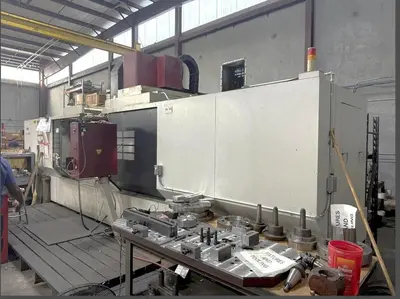

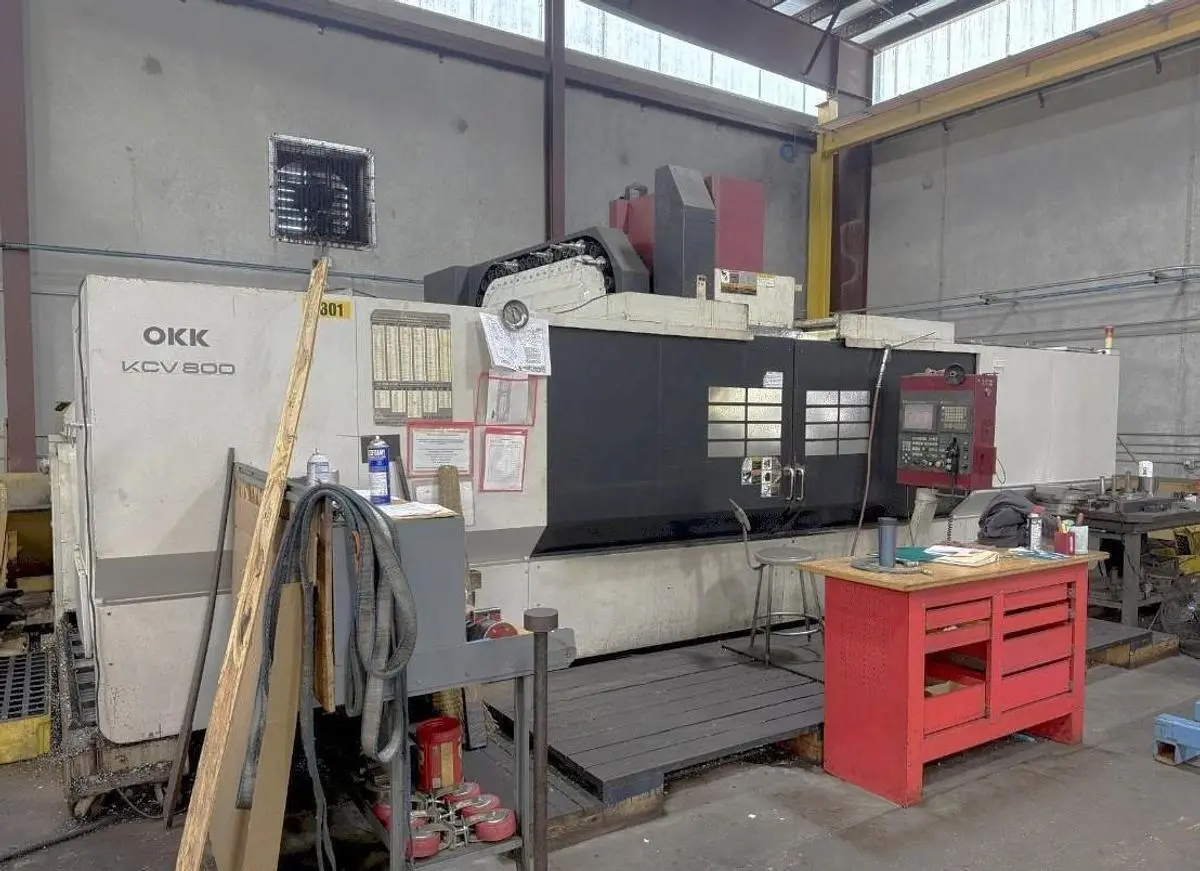

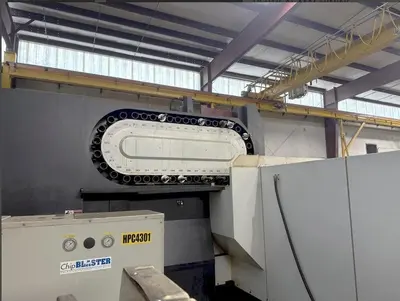

USED 2007 OKK KCV800
Overview
Used Vertical machining center with Fanuc 160i control, 40-station ATC, and high-torque 12,000 RPM spindle. Features 120" X, 33.85" Y, 28.34" Z travels, and spindle oil chiller.
Specs

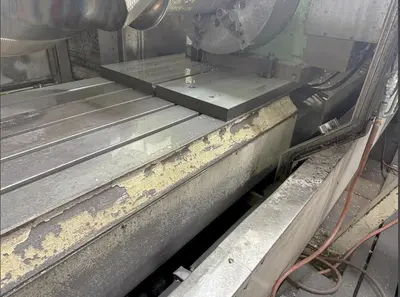

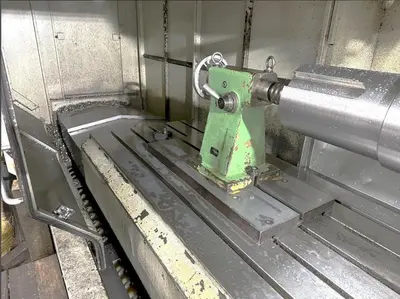

Table size 130" x 32"
Maximum Weight on Table 6,613 lbs.
X-Axis Travel 120"
Y-Axis Travel 33.85"
Z-Axis Travel 28.34"
Spindle Taper CAT #50
Spindle Speeds 12,000 RPM
Spindle Motor 40 HP - 2 Speed Geared
Distance Spindle Nose to Table Top 7.87" - 36.22"
Number of Tool Positions 40 Station Side Mounted ATC
Machine Dimensions 250" x 174" x 141"
Machine Weight 46,200 lbs.
Equipped With
Control Fanuc 160i Control
40 Station Side Mounted Tool Changer
Wired for 4th Axis

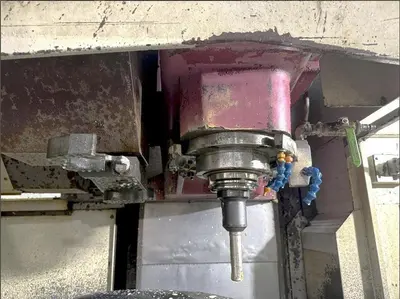

12,000 RPM Spindle

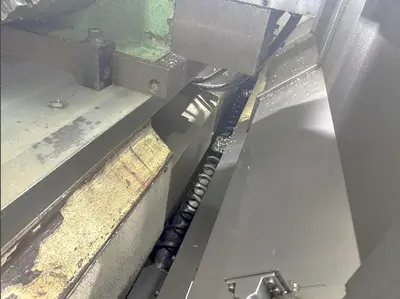

Dual Chip Augers

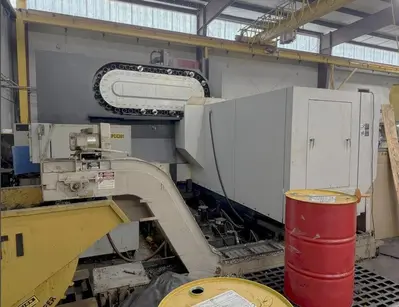

Rear Exit Belt Style Chip Conveyor

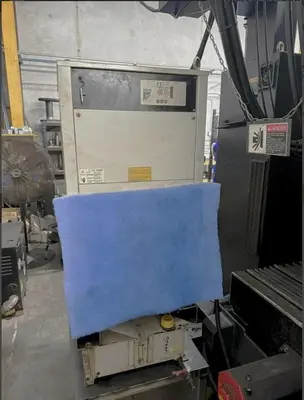

Spindle Oil Chiller Unit
Chip Blaster High Pressure Coolant Through the Spindle
Remote Jog Handle
RS 232 Port Interface
Coolant System with Tank & Pump
Boxed Ways
High Torque Spindle
Built for Heavy Duty Cutting
