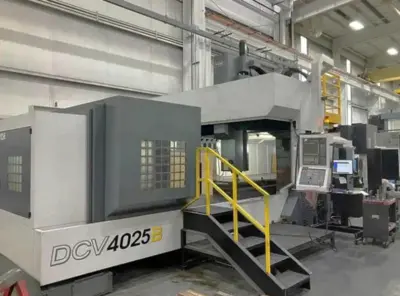

USED 2012 YCM DCV4025B
Overview
Used gantry machining center features a 158"x94.5" table, 160"x98"x40" travel, CAT 50 spindle taper, 4,500 RPM spindle speed, and 120-tool changer. Equipped with Fanuc 31i control, high-speed machining, chiller unit, and ethernet interface.
Specs
Table Size 158" x 94.5"
Maximum Weight on Table 44,092 lbs.
Distance Between Columns 107.9"
X-axis travel 160"
Y-Axis Travel 98"
Z-Axis Travel 40"
Spindle Taper CAT 50
Spindle Speed 4,500 RPM
Spindle Motor 30 HP
Distance Spindle Nose to Table Top 7.87" - 47.87"
Tool Magazine Capacity 120 Station Tool Changer
Maximum Tool Diameter / Length / Weight 4.92" / 13.78" / 44.1 lbs.
Rapid Traverse Rates X / Y, Z 472 IPM / 591 IPM
Cutting Feedrates 394 IPM
Machine Weight 101,412 lbs.
Equipped With

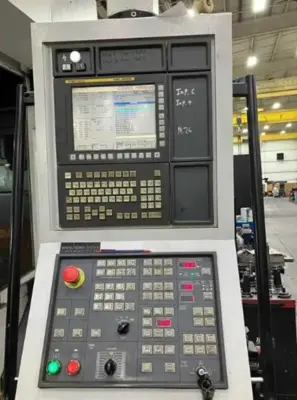

Machine Control Fanuc 31i Series Control
Coolant Through the Spindle

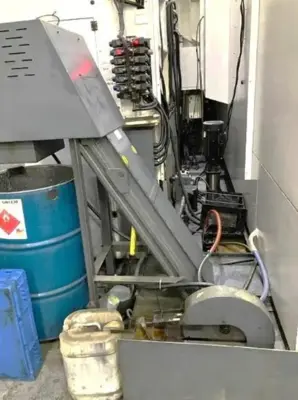

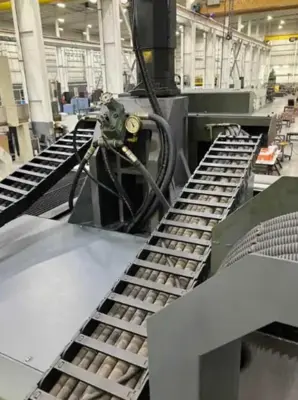

Chip Conveyor
Chip Augers
Chiller Unit
High Speed Machining
Data Server
Ethernet Interface
RS 232 Port Interface
Spindle Thermal Compensation
3 Roller Type Guide Way on Y Axis
Hardened and Ground Box Ways on Z Axis
Tool Selection Random Method
Electrics 220/480V
