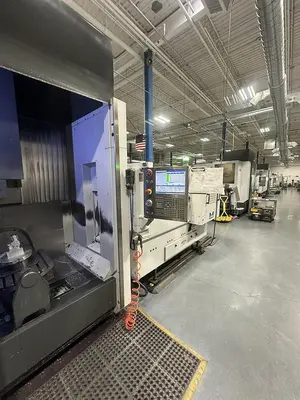

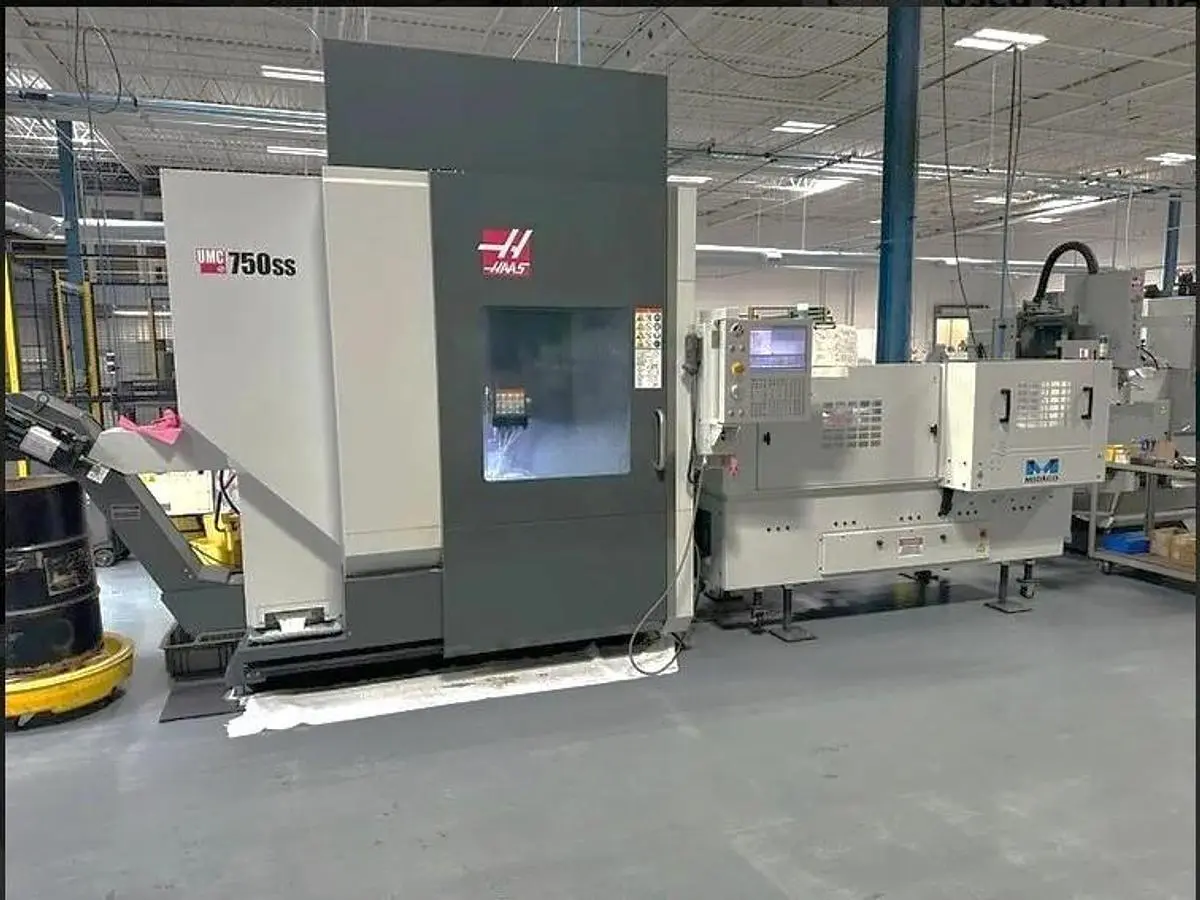

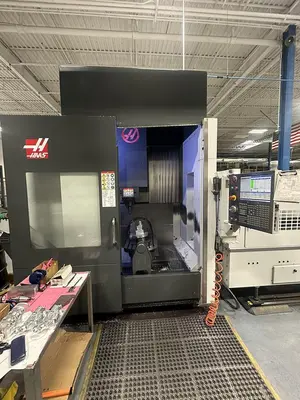

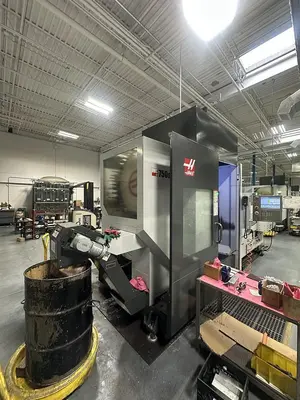

USED 2016 HAAS UMC-750SS
Overview

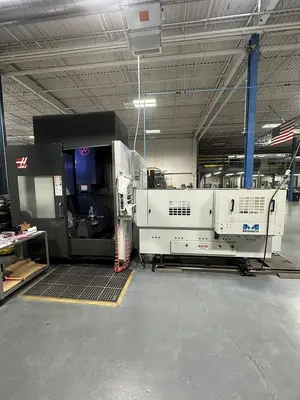

Used Universal Machining Center offers the power and precision you need. Features a 15,000 RPM spindle, HAAS Intuitive Programming, Midaco pallet changer, trunnion 4th/5th axis, and high-speed machining.
Specs
Table Size / Number of Pallets 19.7" x 24.8" / 19 Pallets
Table load capacity 200 lbs
X axis travel 30"
Y axis travel 20"
Z axis travel 20"
B axis rotate of trunnion -35 Degrees to 110 Degrees
C axis table rotation .001 Degree Positioning
Spindle taper CAT #40
Spindle speed 15,000 RPM
Spindle motor 30 HP
Distance Spindle Nose to Table Top 4" - 24"
Tool magazine 30 + 1 Position Toolchanger
Maximum Tool Diameter / Length / Weight 5" / 12" / 12 lbs.
Rapid traverse rates 1200 IPM
Maximum feed rates 650 IPM
Machine dimensions 240" x 132" x 110"
Machine weight 23,000 lbs

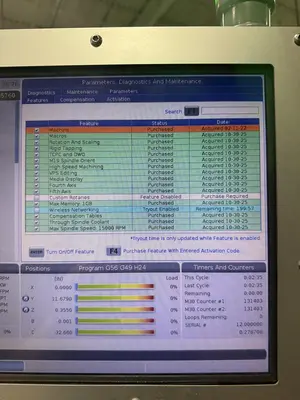

Equipped With

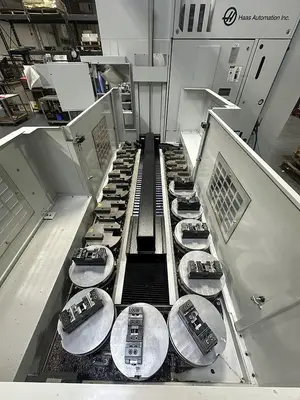

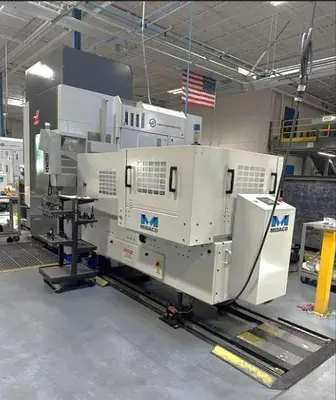

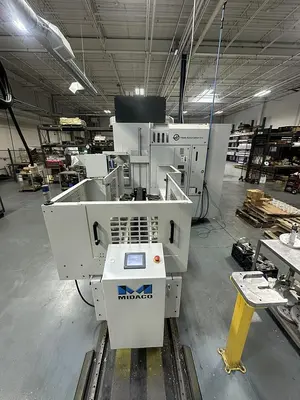

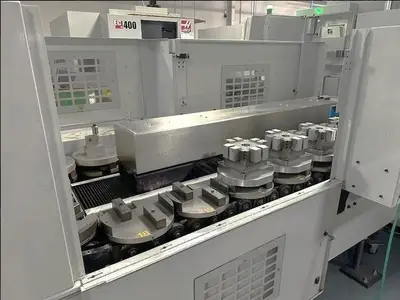

Midaco 19 Pallet Changer System

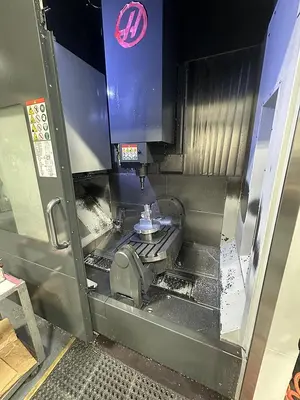

Trunnion Style 4th/5th Axis Table
Coolant Through the Spindle
15,000 RPM Spindle
Haas Wireless Intuitive Probing Package
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros

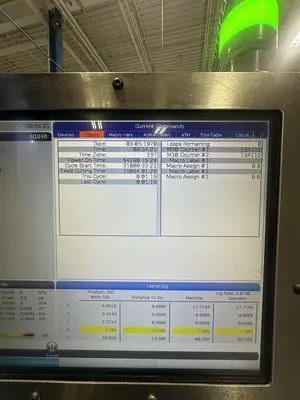

Haas Intuitive Programming System
Belt Chip Conveyor-Hennig
30 Station Tool Changer
High Speed Machining
Rigid Tapping
Remote Jog Handle
TCPC and DWO
VPS Editing Capability
Media Display
Compensation Tables
1 GB Programming Storage
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
Wired 220V Electrics
