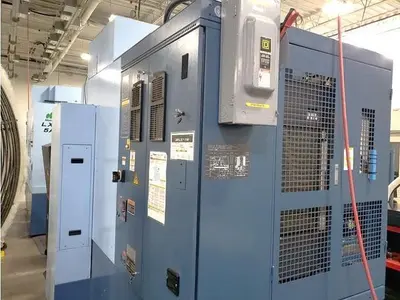

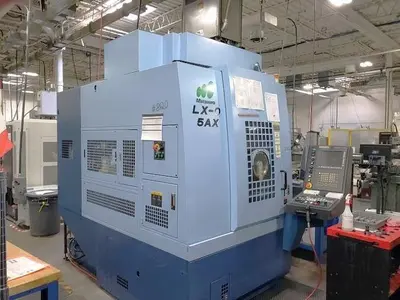

USED 2010 MATSUURA LX-0 5AX
Description
Used Vertical machining center with Matsuura L-Tech Fanuc 30i control. Features a 43,000 RPM BT30 spindle, 30-station tool changer, and high-speed linear motors. Max part size 5.9"x5.9", max table load 44 lbs. Comes with some tooling and manuals.
Specifications
| X | 12.92" | 328.17 mm |
|---|---|---|
| Y | 7.87" | 199.9 mm |
| Z | 9.84" | 249.94 mm |
| RPM | 43,000 RPM | 43,000 RPM |
| # ATC | 30 | 30 |
| Taper | BT-30 | BT-30 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 71" x 105" x 110" | 71" x 105" x 110" |

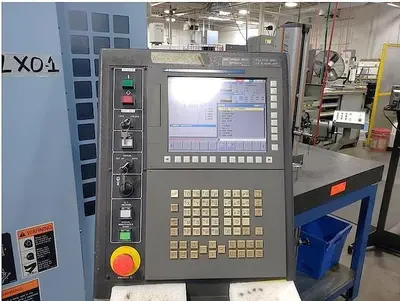

Control Matsuura L-Tech Fanuc 30i Control
Maximum Part Diameter x Part Height 5.9" x 5.9"
Maximum Table Load 44 lbs
X-Axis Travel 12.92"
Y-Axis Travel 7.87
Z-Axis Travel 9.84"
B Axis Movement -110/+10 Degree
C axis table rotation 360 Degrees
Spindle Taper BT #30
Spindle Speed 43,000 RPM
Tool Magazine Capacity 30 Station Tool Changer
Rapid Traverse Rates 3546 IPM
Machine Dimensions LxWxH 71" x 105" x 110"
Equipped With
43,000 RPM Spindle
BT30 Taper Spindle
30 Station Tool Changer
Uses All Linear Motors for High Speed Machining
Some Tooling Included
All Available Manuals
