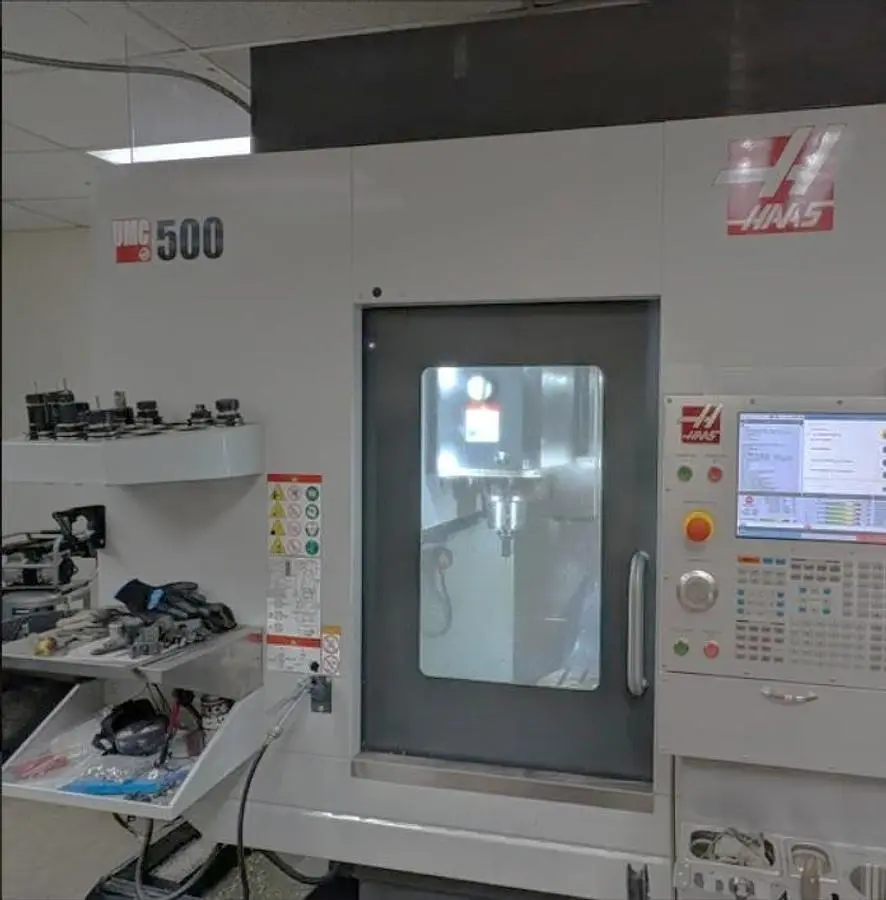

USED 2022 HAAS UMC-500
Overview
Used Vertical Machining Center; features include a 15.7" table, 5th Axis Table, CAT #40 spindle at 15,000 RPM, Renishaw Probing, and Haas Visual Programming System. Machine dimensions 120"x98"x110". Weight 13,500 lbs.
Specs
Table size 15.7" Diameter
Table load capacity 500 lbs
X axis travel 24"
Y axis travel 16"
Z axis travel 16"
B axis rotate of trunnion -35 Degrees to 110 Degrees
C axis table rotation .001 Degree Positioning
Spindle taper CAT #40
Spindle speed 15,000 RPM
Spindle motor 30 HP
Distance Spindle Nose to Table Top 4" - 20"
Tool magazine 30 + 1 Position Toolchanger
Maximum Tool Diameter / Length / Weight 5" / 12" / 12 lbs.
Rapid traverse rates 1200 IPM
Maximum feed rates 650 IPM
Machine dimensions 120" x 98" x 110"
Machine weight 13,500 lbs
Equipped With
Trunnion Style 5th Axis Table
Coolant Through the Spindle - 300 PSI
Renishaw Probing with Tool & Part Probing
Chip Conveyor

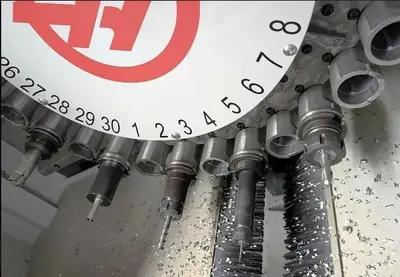

30 Station Side Mounted Tool Changer
Remote Jog Handle w/ Large Touch Screen
User Definable Macros
Coordinate Rotation & Scaling
Spindle Orientation
Haas Visual Programming System
Rigid Tapping
High Speed Machining
Through Tool Air Blast
CNC Control Cabinet Cooler
