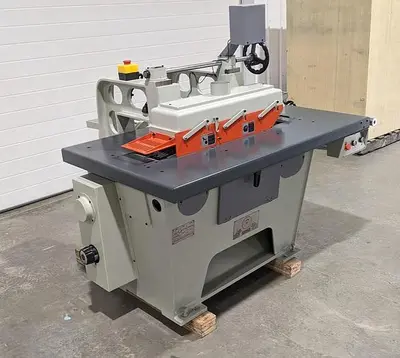

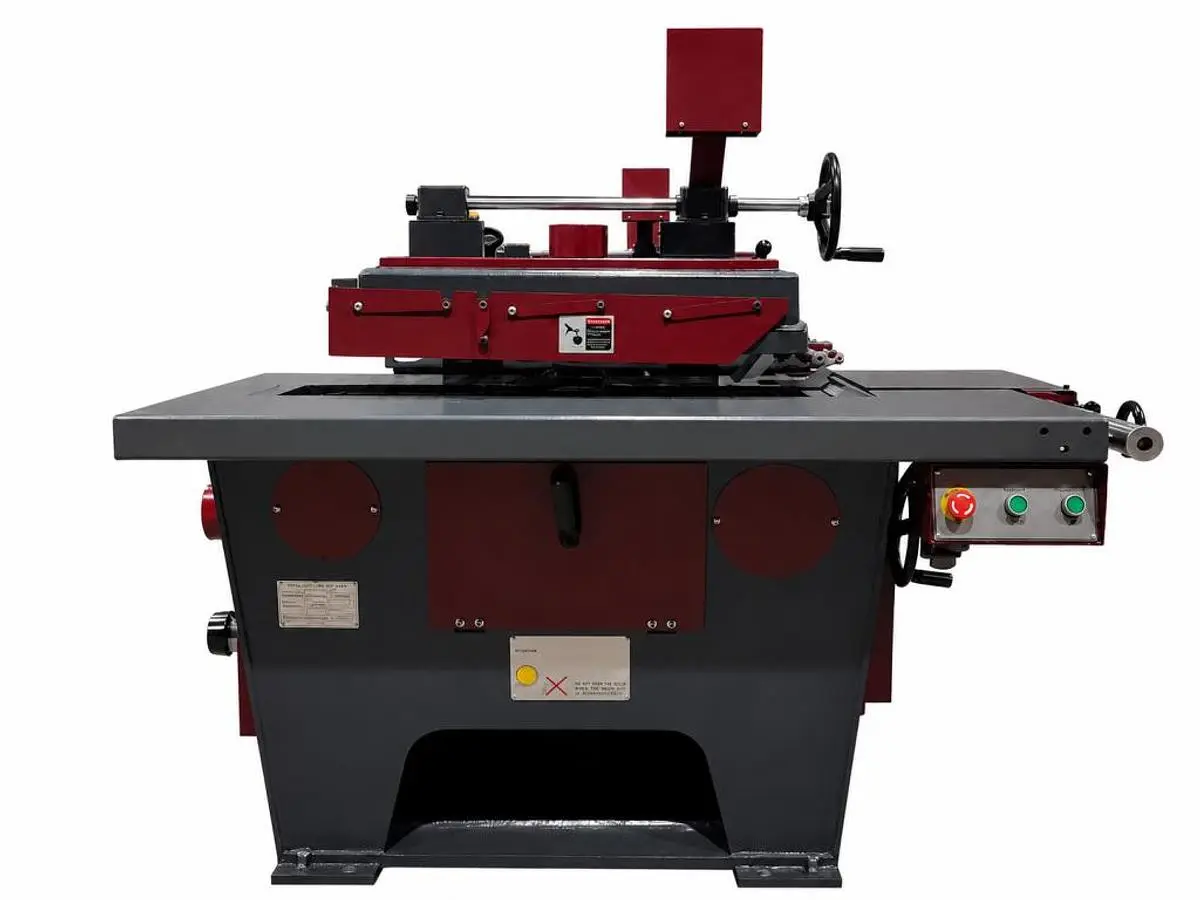

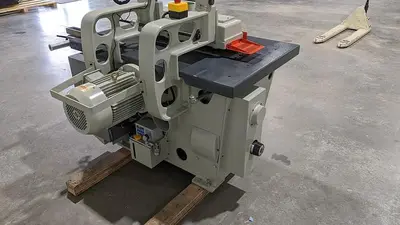

NEW TIMBERTECH TSLR14

MAIN MOTOR HP: 10 HP
VOLTAGE, FREQUENCY: 230 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 33 Amps
FEED HP: 1.5 HP
FEED SYSTEM: Split Chain and Race equipped with "True Track"
FEED SPEED RANGE: 10-90 FPM
ELEVATION STYLE: Manual Wheel Adjustment
TOTAL MACHINE HP: 11.5 HP
CONTROL VOLTAGE: 110 Volt
PASS-LINE: 31-3/8''
MAX. WORKING WIDTH: 18'' From Blade to Rear Columns
MIN. THICKNESS: 3/16"
MAX. WORKING THICKNESS: 3-1/8''
GLUE LINE RIP: Guaranteed 8' 4/4 stock @ 50 FPM
ARBOR RPM: 3530 RPM
BLADE SIZE: 14'' Tungsten Carbide Tipped
NO. OF TEETH ON BLADE: 70 Tooth
TOOTH SPACING: 5/8''
BLADE KERF: .197''
TRACKING STYLE: "True Track" System
DUST PORT SIZE OUTLET: (1) 4'' Top (1) 6'' Bottom
ARBOR DIAMETER: 2''
CHAIN ADJUSTMENT: True Track Adjustable Chain
HOLD DOWN STYLE: (6) Spring Loaded Hold Downs
KICKBACK FINGERS: (33) Top (38) Bottom Fingers
REAR E STOP: Push Button
SAFETY FEATURE: Sawblade Door Safety Interlock
GUARDING High: Visibility Guarding
OILER: Automatic Oiler
LOW OIL WARNING/SHUT OFF: Low Oil Shut-off
FENCE TYPE: Industrial Cam Lock Quick Release
FENCE DIMENSIONS: 1-3/4'' x 23-3/4''
FRAME CONSTRUCTION: 1/4'' Steel Construction
WORKTABLE DIMENSIONS: 55'' x 33-1/2''
TABLE CONSTRUCTION MATERIAL: Steel
DECIBEL RATING: 80 dB
NET WEIGHT: 1890 Lbs.
GROSS WEIGHT: 2050 Lbs.
MACHINE DIMENSIONS: 65'' x 54'' x 55-1/2''
PACKAGING DIMENSIONS: 68'' x 57'' x 60''
