Manufacturer: DMG
Model: DMU125P
Year: 2004
Axis_Travels(X;Y;Z): 49" x 34.6" x 31.5"
RPM: 18000
HP: *
ATC: 30
Control: HEIDENHAIN iTNC 530
Price: CALL US!

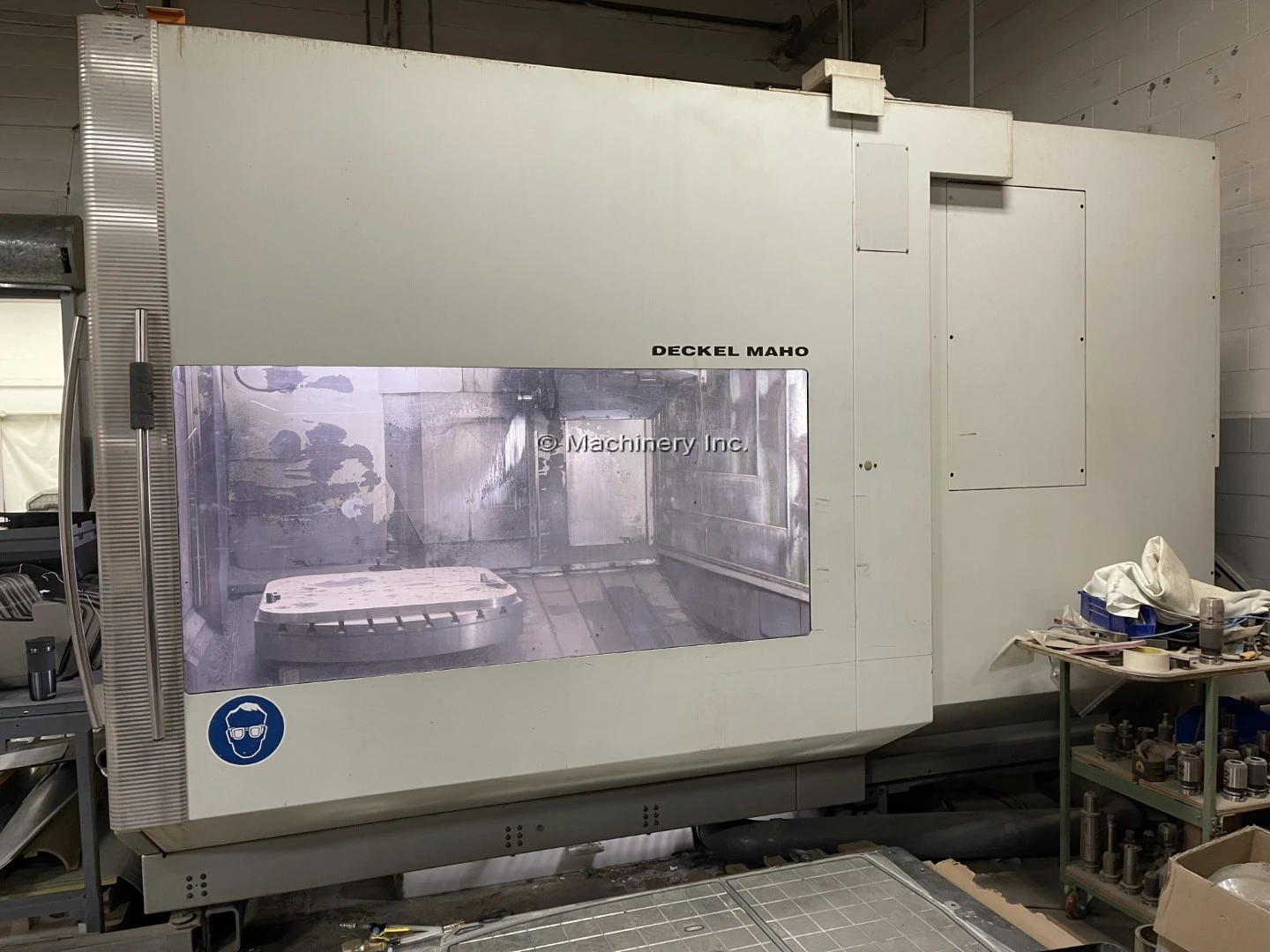

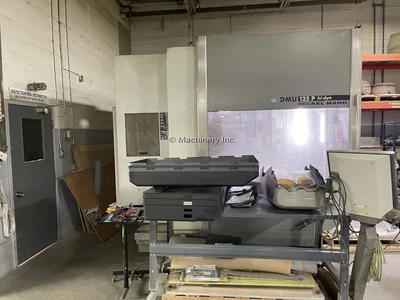

Used 2004 DMG DECKEL MAHO DMU125P hi-dyn 5-Axis CNC Universal Machining Center, 2004
-Spindle:
Speed: 18000 RPM
Taper: HSK63
-WORKING RANGE-
X axis (longitudinal)................................ 49.21" (1,250 mm)
Y axis (transverse).................................... 34.65" (880 mm)
Z axis (vertical)...................................... 31.50" (800 mm)
Maximum workpiece diameter 47.2" (1,200 mm)
Maximum workpiece height 59.06" (1,500 mm)

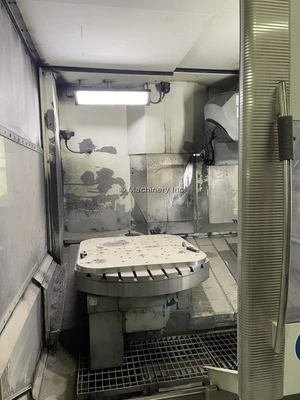

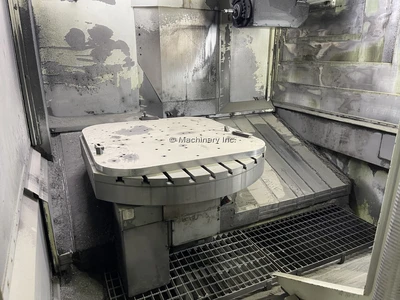

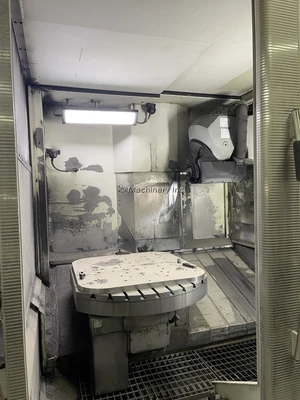

-NC SWIVEL ROTARY TABLE, has bearings on both sides-
Clamping surface............................ 39.37" diameter (1,000 mm)
Maximum table load................................ 2,205 lbs (1,000 kg)
Rapid speed rotary axis........................................ 5.3 rpm
Rapid speed swivel axis........................................ 5.6 rpm
Rotation range...................... 360 x 0.001 degree (Full 4th axis)
Swivel angles To spindle -45 degrees, from working spindle +30 degrees

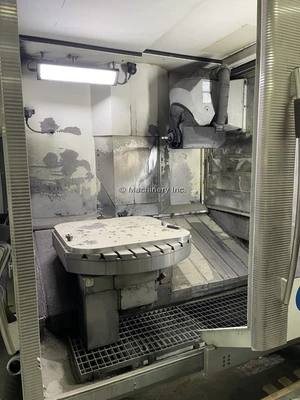

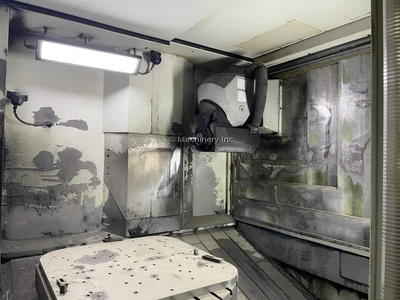

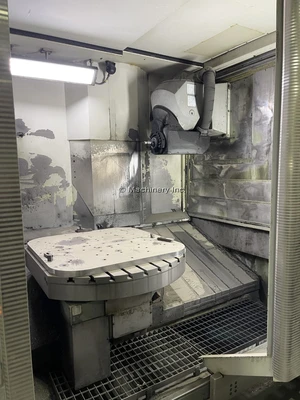

-AUTOMATIC UNIVERSAL MILLING HEAD-
Automatic swivel from horizontal to vertical in approximately 4 seconds.
The auto swivel head makes this machine 2 machines in one because both
vertical and horizontal machining is possible with one workpiece clamping.
Together with the NC Swivel Rotary table 5-Sided, full 5-Axis machining is
possible with one workpiece clamping.
Equipped with:

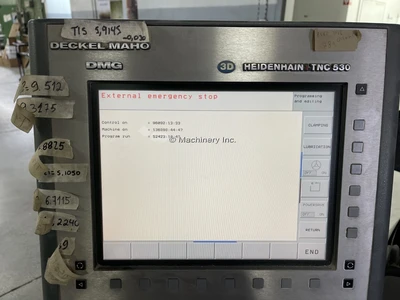

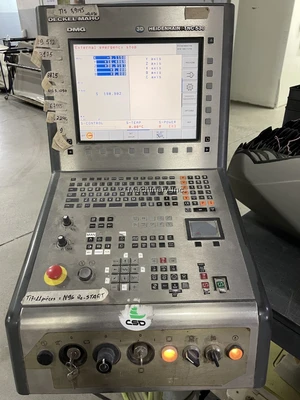

HEIDENHAIN iTNC 530 - 3D

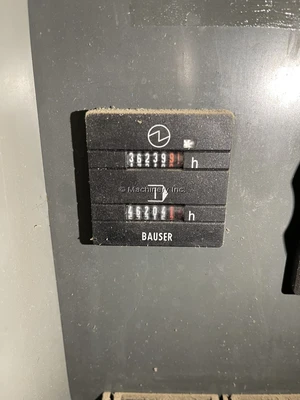

HOURS:
CUTTING HOURS: 46204
