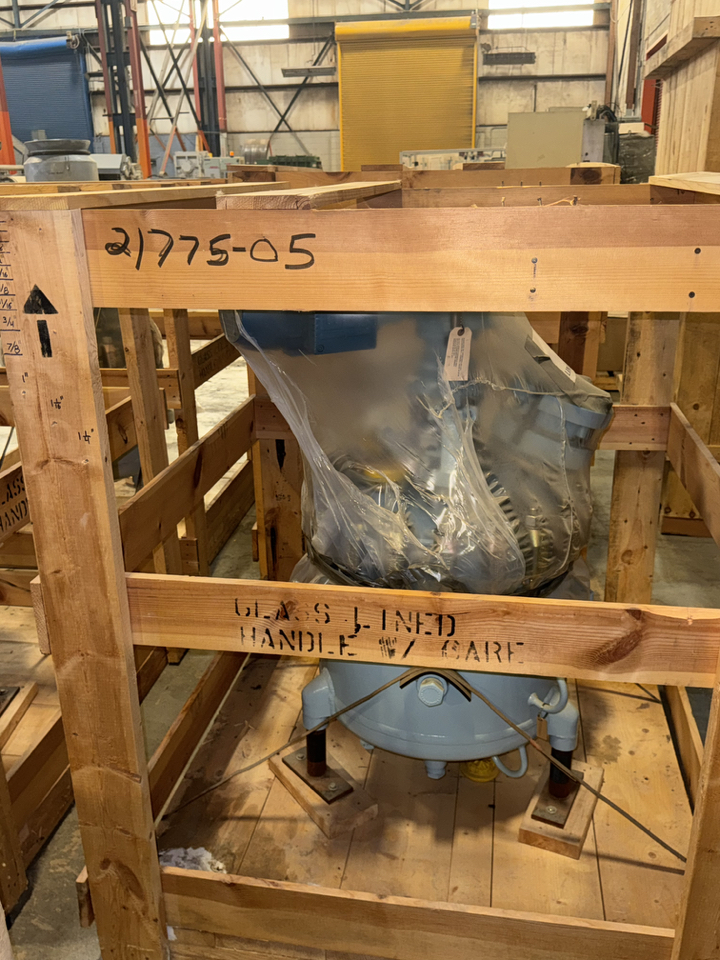

UNUSED Pfaudler Approximately 20 Gallon, Clamped-Top Glass Lined Reactor
Manufacturer: Pfaudler
Serial: 8220084
National Board: 53234
Year: 2020
Internal: 150/FV-20 Degrees F to 450 Degrees F
Jacket: 125PSI at -20 Degrees F to 450 Degrees F
Openings: Cover with Site Glass
Top Head:
(1) 2,2/8” Drive Nozzle
(2) 2” Nozzles
(2) 1,1/2” Nozzle
Bottom Head:
(1) 2”
Top Mounted Agitator with Drive & Motor.
Agitator: Light Blue, Nucerite, 3 Blade, 16” Span Retreat Cure Impeller (RCI)
Drive: 2.5 DTWNC, 10: Ratio, Output 175 RPM
Motor: 2.5 HP, 3 PH, 60Hz, 130/460 Volt, 1800 RPM, Class 1
Mounted on Legs
| Capacity | 20 gal | 75.7 L |
| National Board No. | 53234 | 53234 |
| Internal pressure | 150 PSI | 10.3 bar |
| Jacket Pressure | 125 psi |
