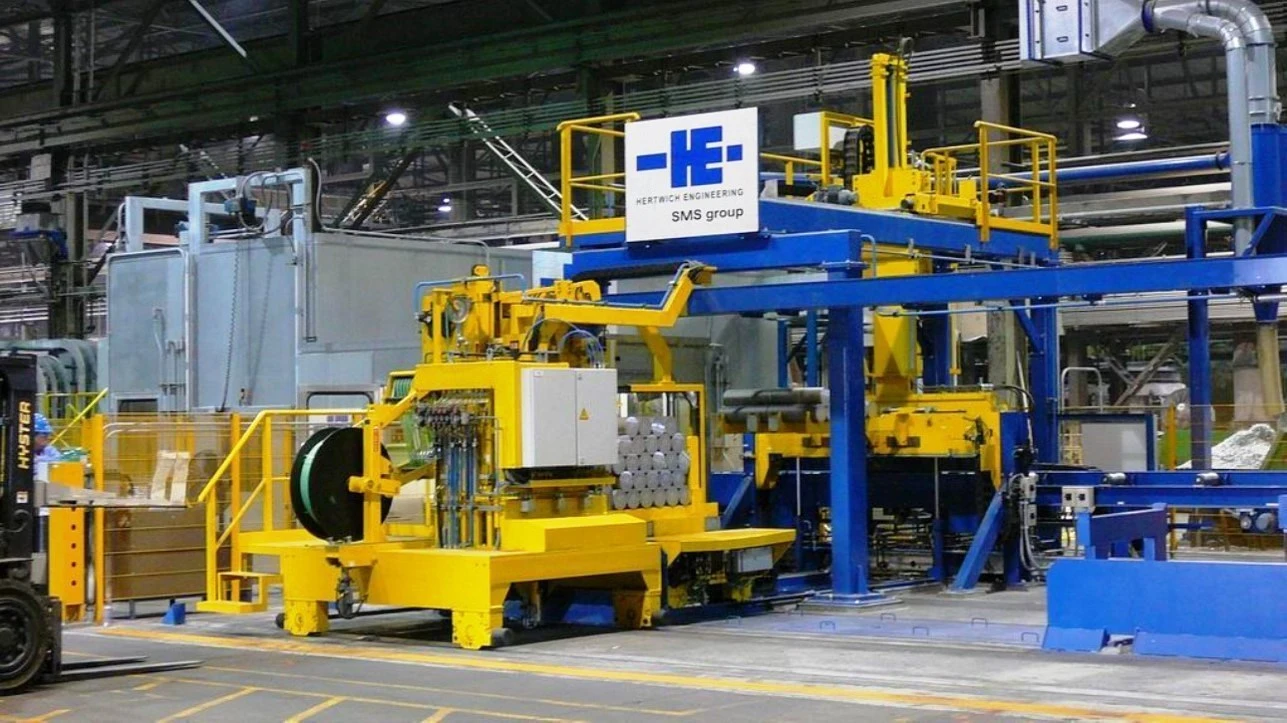

USED 2008 HERTWICH ALUMINUM EXTRUSION LOG SAW

Used Hertwich Aluminum Extrusion Log Sawing System: EX-475

(Located in a Vertical DC Log Casting plant)

Manufacture:

- Hertwich
- Commissioned new in April 2008
- Decommissioned 2016

Condition:

- One owner, very little use
- Installed on plant foundation, not under power
- Installed footprint = 156ft x 65ft (50m x 20m)

Design Capacity

- 220-270 million lbs/yr (122,000 mtons/yr)
- Billet Diameter = 5.0 - 15.98" (127 - 406mm)
- Max Length: 310" (7876 mm)
- Short-cut Billet: 15 - 78.5" (381 - 1994 mm)
- Long-cut Billet: 118 - 288" (2997 - 7315 mm)

Current Owner only ran 6-12" Billet diameters but commissioning trials proved 16" diam work well

Equipment

Entry Tables to Feed Saw (2):
- 2 x laydown tables
- 2 x transfer cars
- Length - 14m / 46ft

Log Inspection Roller Table
- Inspection: Ultrasonic station for linear testing (UT)

Saw:
- Automatic system
- Needle marker stamping
- CKS 90/1260/405 saw
- Long length gauge
- Short length gauge
- Scrap manipulator
- Scrap shuttle cars
- Swarf exhaust system
- Swarf cyclone separator
- Long scrap exit roller table
- Saw blade crane
- Noise absorbing enclosure over saw and operators cabin
- Automatic Billet Stacker
- Automatic Plastic Bander (Signode)
- Scale System
- Guards, Fences, Safety Devices
- Documentation: Complete

Sold "as is, where is" EXW on foundation, USA.
