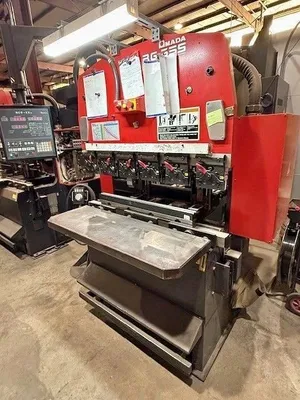

Amada RG-35S 35 Ton x 4' CNC Hydraulic Press Brake
| size | 38 Ton | 38 Ton |
| Tonnage | 38.5 T | 34.927 t |
| Type | HYD | HYD |
| Overall Length | 49.3" | 1.3 m |
| Between Housings | 40.2" | 1 m |
| Stroke | 3.94" | 100.08 mm |
| # Axis | 3 | 3 |
Maximum Tonnage: 35 Tons
Table Length: 47.3″
Maximum Bending Length: 49.3″
Distance Between Uprights: 40.2″
Maximum Stroke Length: 3.94″
Open Height: 14.58″
Throat Depth: 7.88″
Ram Speed Approach: 1.57″/sec
Ram Speed Bending: 37″/sec
Ram Speed Return: 2.16″/sec
Motor: HP 3
Dimensions: 54″x41″x78″H
Weight: 3,528 lbs

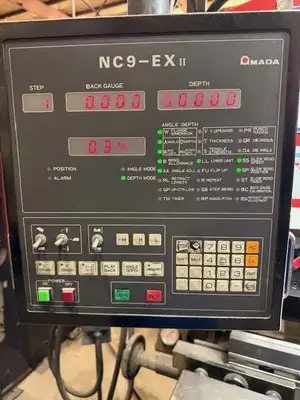

NC9EX-II Control
Remote Handwheel
Foot Treadle
