USED 1968 Jones & Shipman 1310, 1968, I.D. SPINDLE, HYD. TABLE, AUTO INFEED,

8" Swing 18" Centers Jones & Shipman 1310, 1968, I.D. SPINDLE, HYD. TABLE, AUTO INFEED, OD GRINDER, AUTO PLUNGE

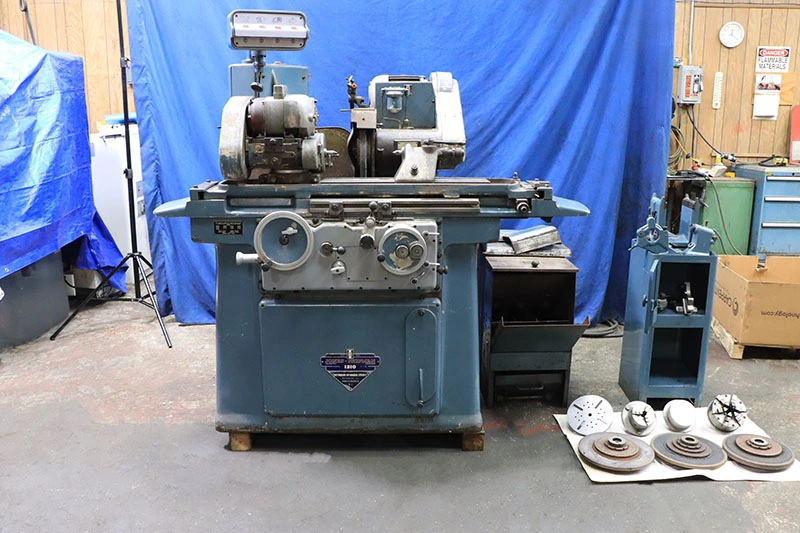

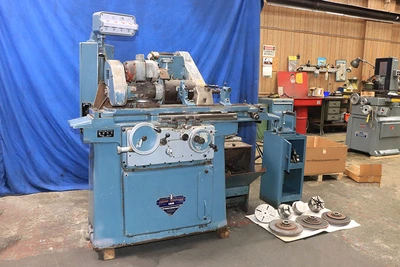

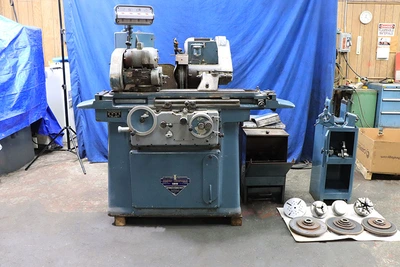

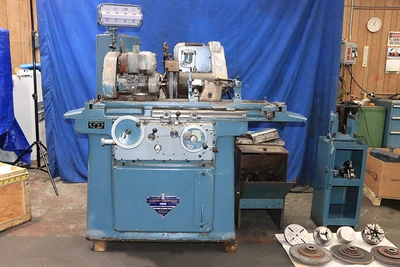

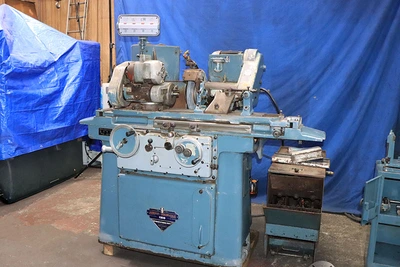

8" X 18" JONES & SHIPMAN "MADE IN ENGLAND"

UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER,

 WITH NICE ASSORTMENT OF ACCESSORIES

MODEL: 1310      S/N: BO53361       NEW: 1968

CAPACITY:

MAXIMUM SWING ....................... 8"

DISTANCE BETWEEN CENTERS ............ 18"

TABLE:

LONGITUDINAL TABLE SPEED

(HYDRAULIC) ......................... 3" TO 144" IPM

MANUAL TRAVERSE, HANDWHEEL

 PER REV. ........................... 0.50"

FINE HAND TRAVERSE KNOB GRAD. ....... 0.0005"

FINE HAND TRAVERSE KNOB PER REV. .... 0.01"

TABLE SWIVEL INCLUDED ANGLE:

  CLOCKWISE ......................... 19 DEGREES

  COUNTERCLOCKWISE .................. 20 DEGREES

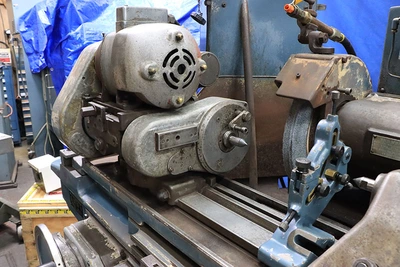

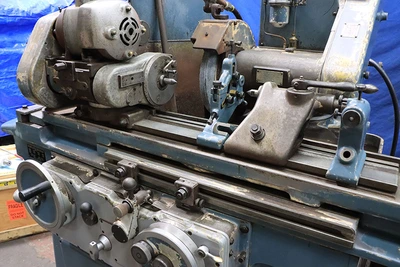

WHEELHEAD:

CROSS FEED HANDWHEEL GRAD. .......... 0.0002"

ONE DEPRESSION OF FINE FEED

  LEVER KNOB ........................ 0.0001"

AUTO INFEED @ TABLE REVERSALS ....... 0.0001" TO 0.0006"

FEED @ REVERSAL OF TABLE,

  REDUCTION IN DIAMETER ............. 0.0002" TO .0012"

CONTINUOUS (PLUNGE) INFEED RATE ..... 0.0001" TO .0006"

(PLUNGE) REDUCTION IN DIA. FROM  .... 0.004" TO .072" IPM

MAX. RANGE OF PLUNGE INFEED ... 0.8 REV. OF THE HANDWHEEL

WHEELHEAD SLIDE ADJUSTMENT .......... 7"

SWIVEL OF WHEELHEAD (EIU TYPE)....... 360 DEGREES

WHEEL SIZE .......................... 12" X 1" X 5"

WHEEL SPEEDS (2) .................... 2,000 & 2,650 RPM

WHEELHEAD MOTOR ..................... 2.0 HP

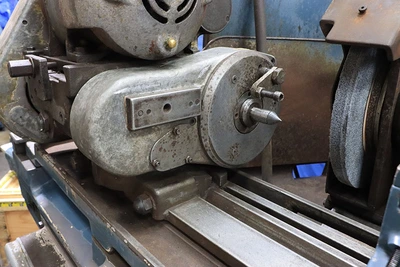

WORKHEAD:

WORKHEAD SPINDLE SPEEDS (6) ......... 36 TO 500 RPM

WORKHEAD SPINDLE TAPER .............. #3MT

APPROXIMATE DIMS. OF MACHINE ........ 66" X 48"

APPROX. FLOOR SPACE REQUIRED

 FOR OPERATION ...................... 80" X 54"

APPROX. MACHINE WEIGHT .............. 4,000 LBS

EQUIPPED WITH:

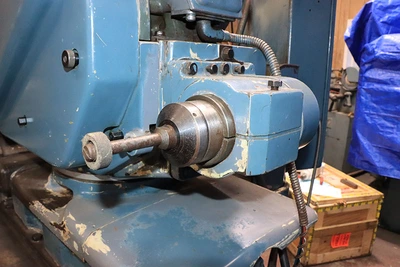

SWING AROUND INTERNAL GRINDING ATTACHMENT

 WITH I.D. GRINDING SPINDLE

COOLANT SYSTEM

GRINDING WHEEL AND HUB ON MACHINE

(3) EXTRA GRINDING WHEELS, WITH HUBS

3-JAW CHUCK, ON FACE PLATE, WITH ADAPTOR

MAGNETIC CHUCK, ON BACK PLATE, WITH ADAPTOR

FACE PLATE, WITH ADAPTOR

6-JAW CHUCK, WITH ADAPTOR

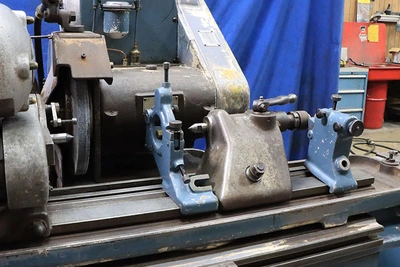

3-POINT STEADY REST

2-POINT REST SUPPORT

CENTER IN WORKHEAD

TABLE MOUNTED DRESSER

JONES & SHIPMAN WHEEL BALNCING STAND

FACTORY CABINET, JONES & SHIPMAN "BLUE'

MACHINE IS WIRED FOR 3/60/220 VOLTS

MACHINE FEATURES:

- HYDRAULIC POWER TABLE TRAVERSE

- AUTO INFEED OF THE WHEEL, AT THE TABLE REVERSALS

- PLUNGE (CONTINUOUS) INFEED

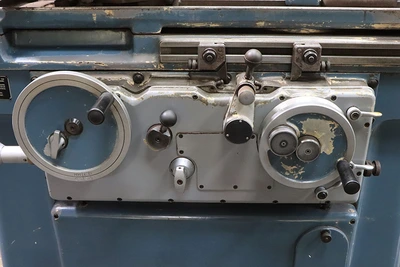

- FINE FEED MECHANISM FOR INFEED OF WHEELHEAD

- FINE FEED KNOB FOR TABLE TRAVERSE

- DUAL LIVE/DEAD WORKHEAD SPINDLE

 Link to video: https://youtu.be/MagfYejOzCE?si=O2obhbIuqYSDL2dn

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

** EXCELLENT CONDITION & APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
