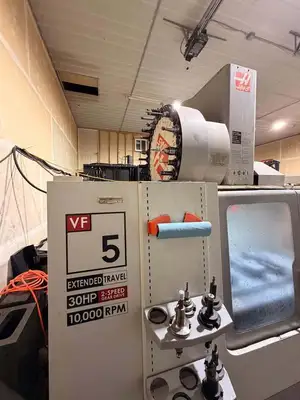

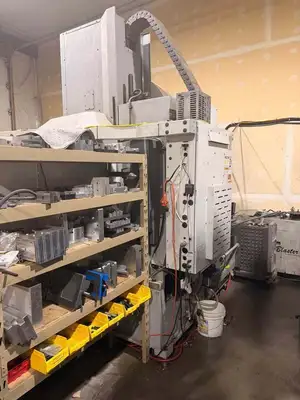

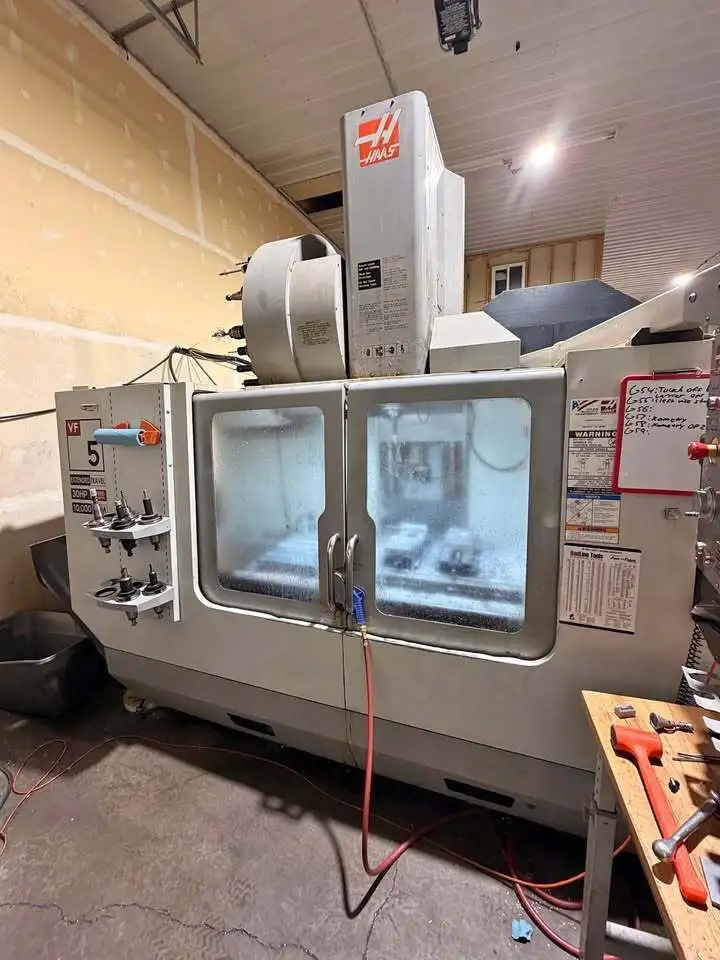

USED 2007 HAAS VF-5/50XT

2007 Haas VF-5XT CNC Vertical Machining Center. Machine is in good shape and can be inspected under power as needed. Options include: Probing, 2 speed gearbox, 30 position automatic toolchanger, 30 HP spindle, programmable coolant nozzle, and 4th axis prewire. "Z" axis waycover needs repair

MACHINE
Max Height (max) 126.5" (3213 mm)
Machine Width (max) 148" (3760 mm)
Machine Depth 114.0" (2895 mm)
Door Opening Width 54.0" (1372 mm)
Machine Weight 16,650 lb (7552 kg)
Air Required 4 scfm at 100 psi (113 L/min at 6.9 bar)
minimum 1/2" (12.7 mm) ID air line required
Power Required 28 kVA
Volts/Phase 200-250 VAC or 380-480 VAC, 3-phase, 50-60 Hz
Full Steel Enclosure 14 GA cold-rolled steel

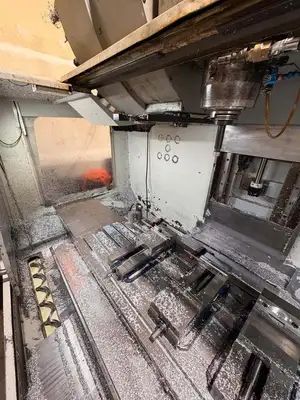

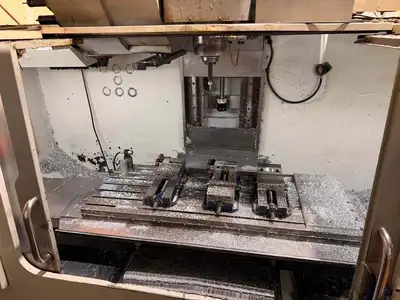

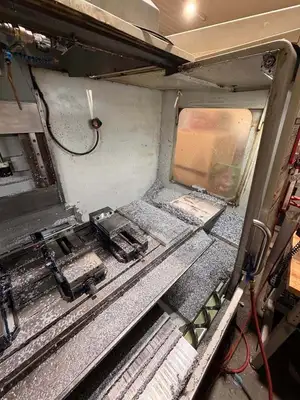

TABLE
Width 23" (584 mm)
Length 62" (1575 mm)
Maximum Weight on Table 4000 lb (1814 kg)
T-slot Width 0.625" (15.875 mm)
T-slot Center Distance 3.15" (80 mm)

TRAVELS
Maximum X Axis 60" (1524 mm)
Maximum Y Axis 26" (660 mm)
Maximum Z Axis 25" (635 mm)
Spindle Nose to Table 7.875"-32.875" (200-835 mm)
100% ball bar testing ensures three-dimensional squareness and accuracy.

FEEDRATES
Rapid on X Axis 540 ipm (13.7 m/min)
Rapids on Y, Z Axes 710 ipm (18.0 m/min)
Maximum Cutting Rate 500 ipm (12.7 m/min)

ACCURACY (Single Axis)
Positioning ±0.0003"†
Repeatability ±0.0002"†
† Linear scales required to achieve accuracy listed.
SPINDLE
Taper Size #50
Spindle Speed 0 to 7500 rpm (10,000 rpm optional)
Max Power Rating 30 hp (22.4 kW)
Max Torque 450 ft-lb (610 Nm) @ 500 rpm
Spindle Bearings ABEC Class 7
Spindle Orientation Electronic

TOOL CHANGER
Fully Enclosed Tool Storage
Tool Capacity 30+1
Tool Type CT-50
Maximum Tool Diameter 4" (102 mm) with all pockets filled;
10" (254 mm) w/adjacent pockets empty
Maximum Tool Weight 30 lb (13.6 kg)
Tool Changer Type Electromechanical, cam-driven, bi-directional

AVERAGE TOOL CHANGE TIMES
Tool-to-Tool 4.2 seconds
Chip-to-Chip 6.3 seconds

AXIS MOTORS
Max Thrust Rating X 5600 lb (24,910 N)
Max Thrust Rating Y, Z 5600 lb (24,910 N)

30 HP Spindle Motor
Probing
2 Speed Gearbox

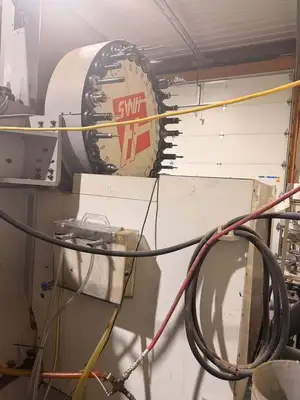

30 Position Sidemount Automatic Toolchanger
Programmable Coolant
4th Axis Prewire
