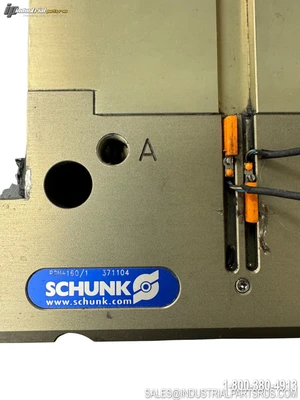

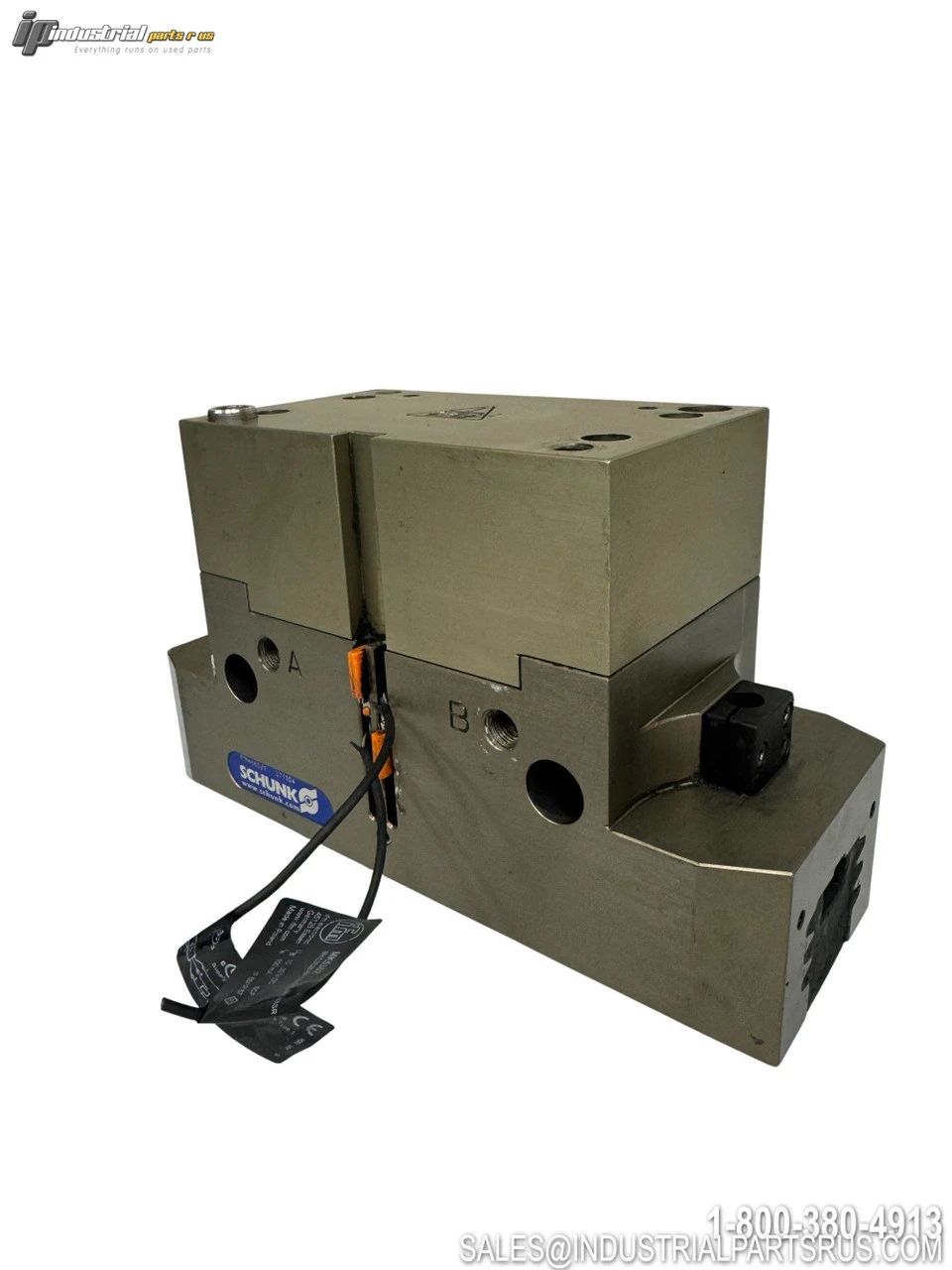

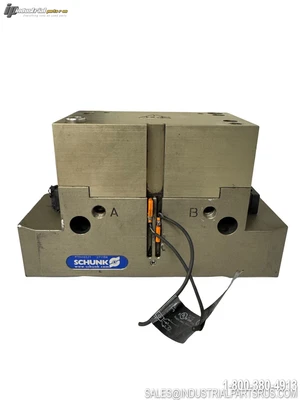

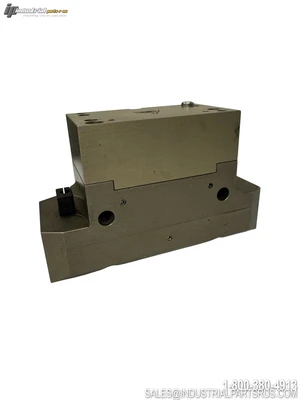

USED SCHUNK PGN+160/1 371104
Overview
Description
The Schunk PGN+160/1 371104 is a universal pneumatic gripper from the PGN-plus series, designed for automated handling applications. This Size 160 parallel gripper features dual-jaw configuration with multi-tooth guidance for precise gripping operations. The unit operates with filtered compressed air per ISO 8573-1:2010 standard and includes accessory kit with centering sleeves and O-rings.
Specification
Value
Brand
Schunk
Model/Part Number
PGN+160/1 371104
Series
PGN-plus
Size
160
Actuation Type
Pneumatic
Gripper Type
Two-Finger Parallel
Stroke per Jaw
16 mm
Closing Force
1640 N
Opening Force
1770 N
Max Ambient Temperature
90°C
Housing Material
Aluminum
Base Jaw Material
Steel
Guidance System
Multi-tooth Guidance
Air Quality Standard
ISO 8573-1:2010 [7:4:4]
Product Status
Legacy Product
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 10.00 LBS | 10.00 LBS |
|---|
SKU: AI1782
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 10.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Schunk
Part Number: PGN+160/1 371104
Shelf: GS -40
Model: PGN+160/1 371104
MPN: PGN+160/1 371104
Type: Pneumatic Gripper
