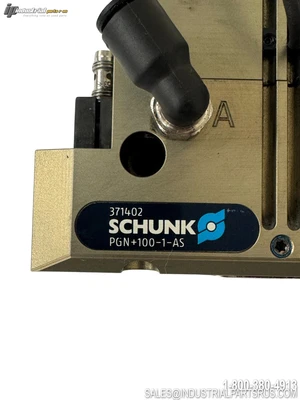

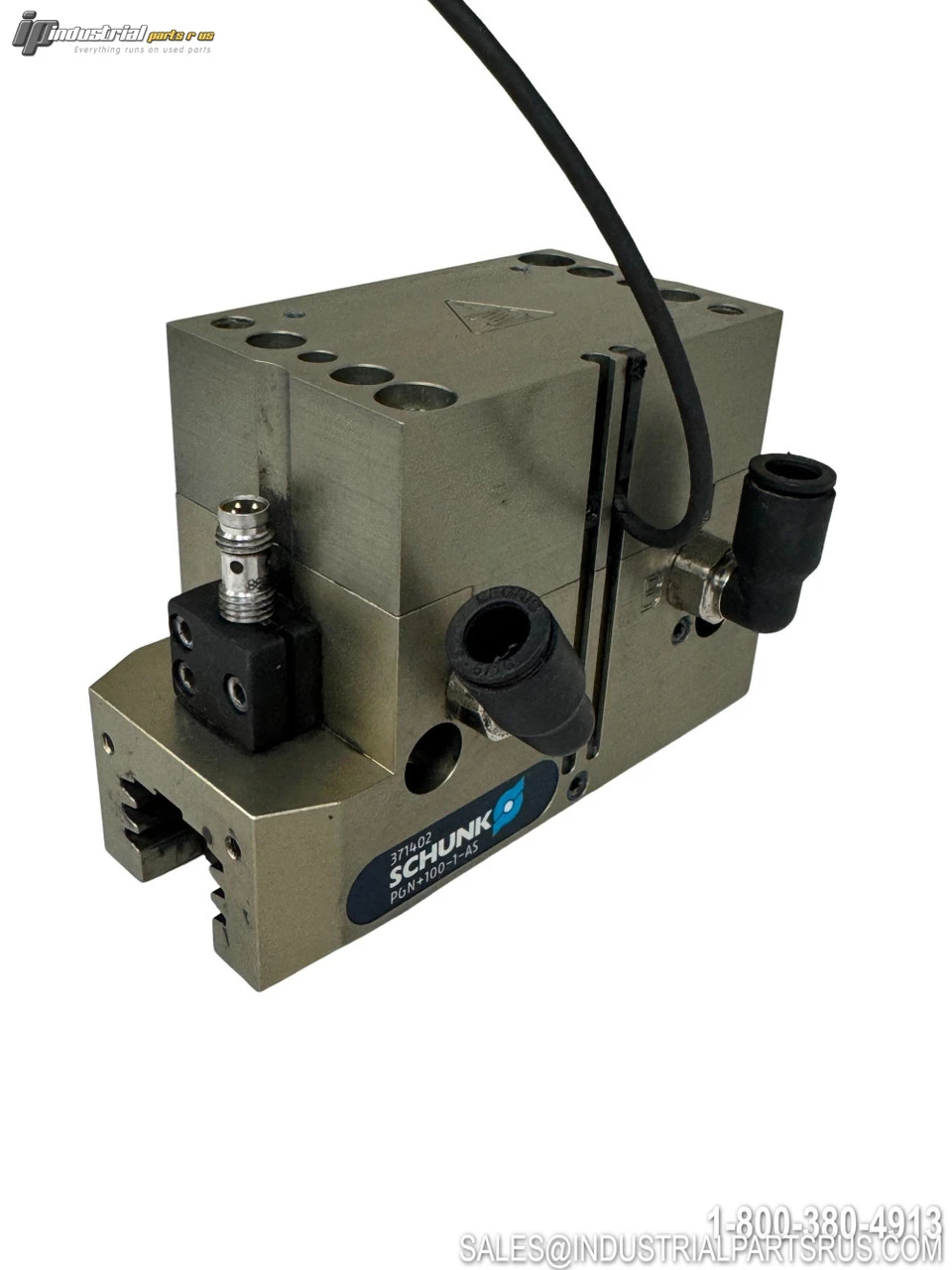

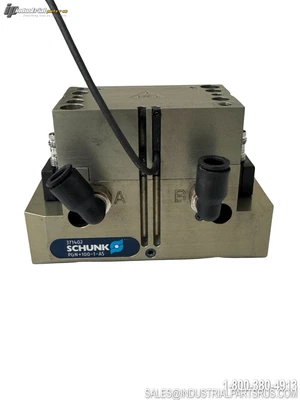

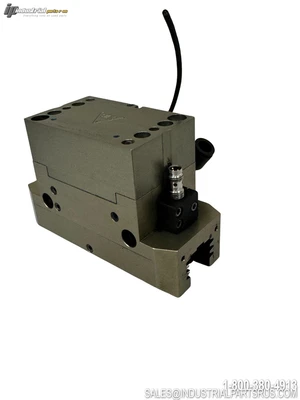

USED SCHUNK PGN+100-1-AS
Overview
Description
The Schunk PGN-100-1-AS is a universal pneumatic parallel gripper from the PGN-plus series designed for precision handling applications in industrial automation. This size 100 gripper features pneumatic actuation with gripping force maintenance (AS) capability and operates at stroke per jaw of 10mm with 900N closing force. The gripper includes mechanical gripping force maintenance for reliable workpiece retention even during air pressure loss.
Specification
Value
Brand
Schunk
Model/Part Number
PGN-100-1-AS
Product Type
Pneumatic Gripper
Series
PGN-plus
Size
100
Stroke per Jaw
10 mm
Closing Force
900 N
Minimum Spring Force
240 N
Weight
1 kg
Recommended Workpiece Weight
3.3 kg
Fluid Consumption (Double Stroke)
79 cm³
Minimum Operating Pressure
4 bar
Maximum Operating Pressure
6.5 bar
Nominal Operating Pressure
6 bar
Maximum Ambient Temperature
90°C
Actuation Type
Pneumatic
Gripping Force Maintenance
Yes (AS)
Air Quality Standard
ISO 8573-1:2010 [7:4:4]
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI1785
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Schunk
Part Number: PGN+100-1-AS
Shelf: GS-40
Model: PGN+100-1-AS
MPN: PGN+100-1-AS
Type: Pneumatic Gripper
