USED MOTOVARIO 63B/4
Overview
Description

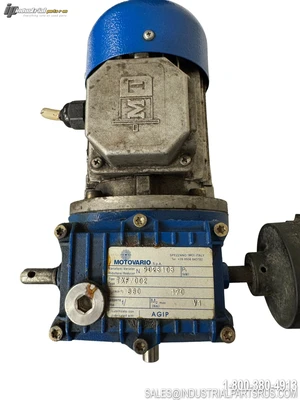

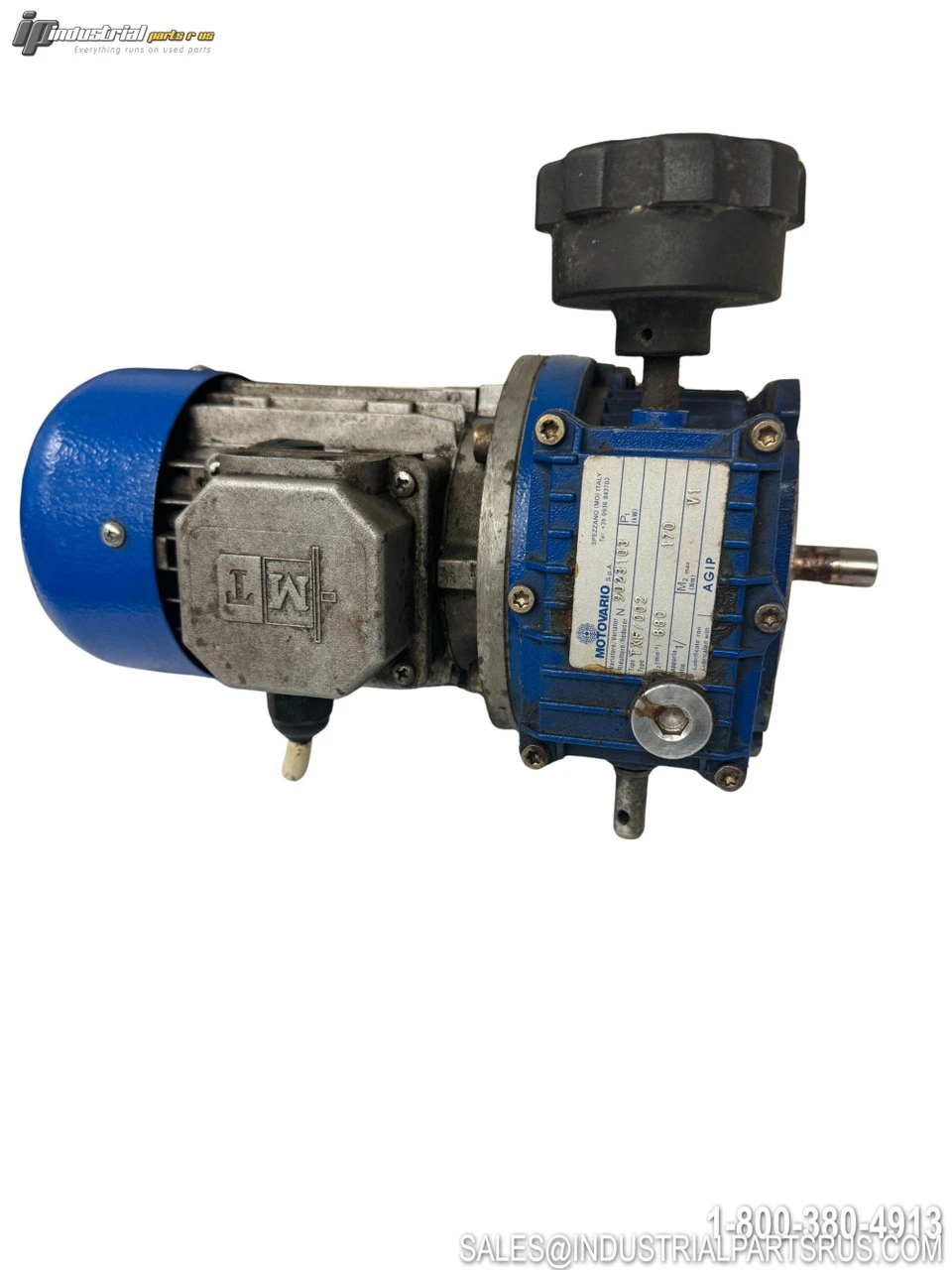

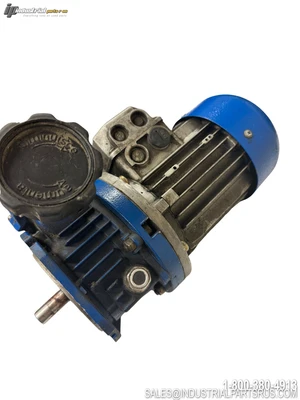

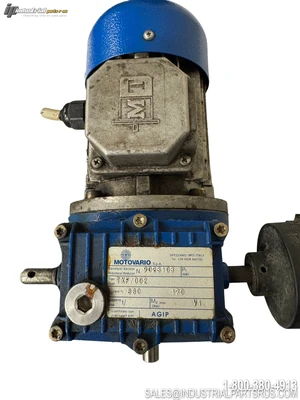

The Motovario 63B/4 is a compact three-phase AC induction motor designed for industrial automation and continuous-duty applications. This motor features IE2 efficiency rating and meets CE and IEC 60034 standards for reliable performance in demanding environments.
Specification
Value
Brand
Motovario
Model/Part Number
63B/4
Motor Type
AC Induction
Power Output
0.18 kW (0.25 HP)
Phase
3-Phase
Poles
4-Pole
Voltage
230/400V (50Hz), 230/460V (60Hz)
Frequency
50/60 Hz
Frame Size
63
RPM
1400 (50Hz), 1620-1670 (60Hz)
Full Load Amps
0.67/1.16A (400V/230V at 50Hz)
Duty Rating
S1 (Continuous)
Efficiency Class
IE2
Protection Degree
IP55
Insulation Class
F
Frame Material
Aluminum
Cooling Type
IC411 (Self-Ventilated)
Shaft Diameter
11mm
Shaft Length
23mm
Operating Temperature
-20°C to +40°C
Mounting Type
B3/B5/B14
Weight
9.26-10.4 lbs
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 8.00 LBS | 8.00 LBS |
|---|
SKU: AI1777
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 8.00 LBS
Width: 10.00
(in)
Height: 5.00
(in)
Depth: 15.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Full Load Amps: 0.67A at 400V / 1.16A at 230V
Manufacturer: Motovario
Shaft Diameter: 11 mm
Enclosure Type: TEFC
Part Number: 63B/4
Shelf: H-4
Model: 63B/4
MPN: 63B/4
Type: AC Motor
