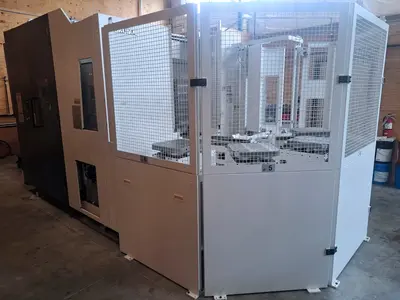

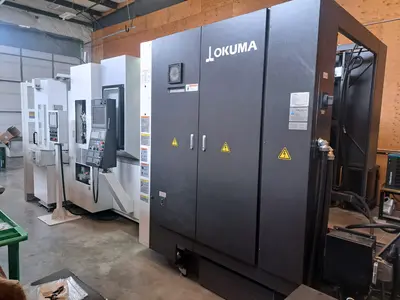

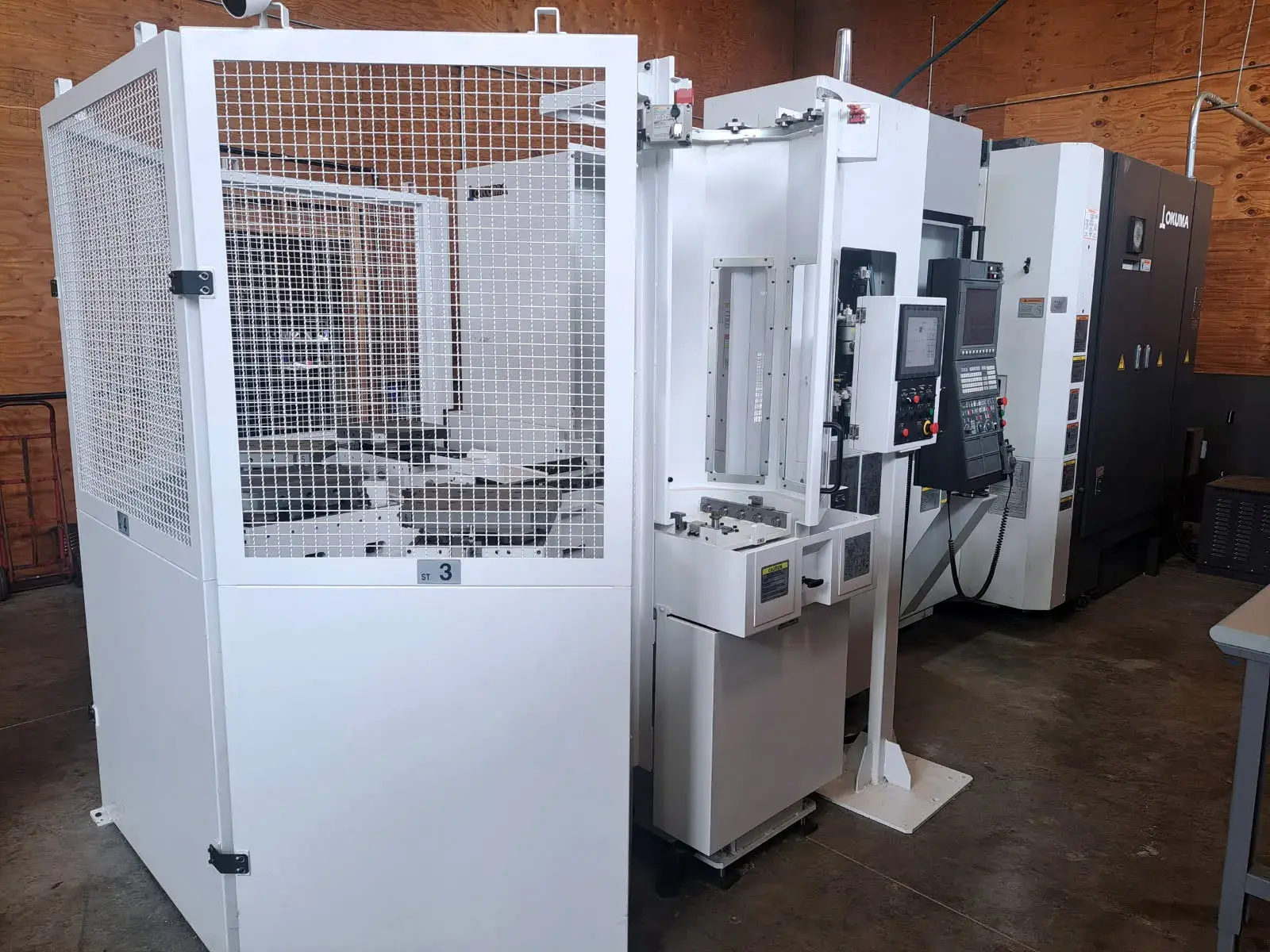

USED 2018 OKUMA MB-4000H
Overview
6 Pallet Pool! Under Power! Readily Available!
The Okuma MB-4000H Horizontal Machining Center (2018) with OSP-P300MA Control delivers high-speed milling, boring, drilling, and tapping for demanding production environments. Designed for high-mix, high-volume manufacturing, this compact HMC excels in machining aluminum, cast iron, and alloy steel components for aerospace, automotive, die & mold, and precision machining applications.
Specs
X Travel: 22.05"
Y Travel: 22.05"
Z Travel: 24.61"
Spindle Center to Pallet Top: 1.97” ~ 24.02”
Spindle Nose to Pallet Center: 3.35” ~ 27.95”
Pallet Size: 15.75” X 15.75”
Max Table Load: 880 Lbs.
Pallet Indexing: 0.001 Degree (Full Fourth)
Max workplace diameter: 23.62” X 35.43”
Spindle Speed: 15,000 RPM (Integral Spindle)
Spindle Taper: CT40 Big+
Rapid Traverse: 2,362 IPM
Cutting Feed Rate: 2,362 IPM
Spindle drive (10 min/cont.): 40/30 HP
TOOL CAPACITY: 64 ATC
Max Tool Diameter w/ Adjacent Tools: 2.76”
Max Tool Length: 15.75”
Max Tool Weight: 22 Lbs.
Equipped With
Only 7497 Cutting Hours
Renishaw Probing System
6 Station Pallet Pool
Thru Spindle Coolant Prepped (Requires Pump)
Jog Handle
Coolant Tank
Chip Conveyor
Includes Factory New Spindle Cassette in Box
